5-558134-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-558134-1

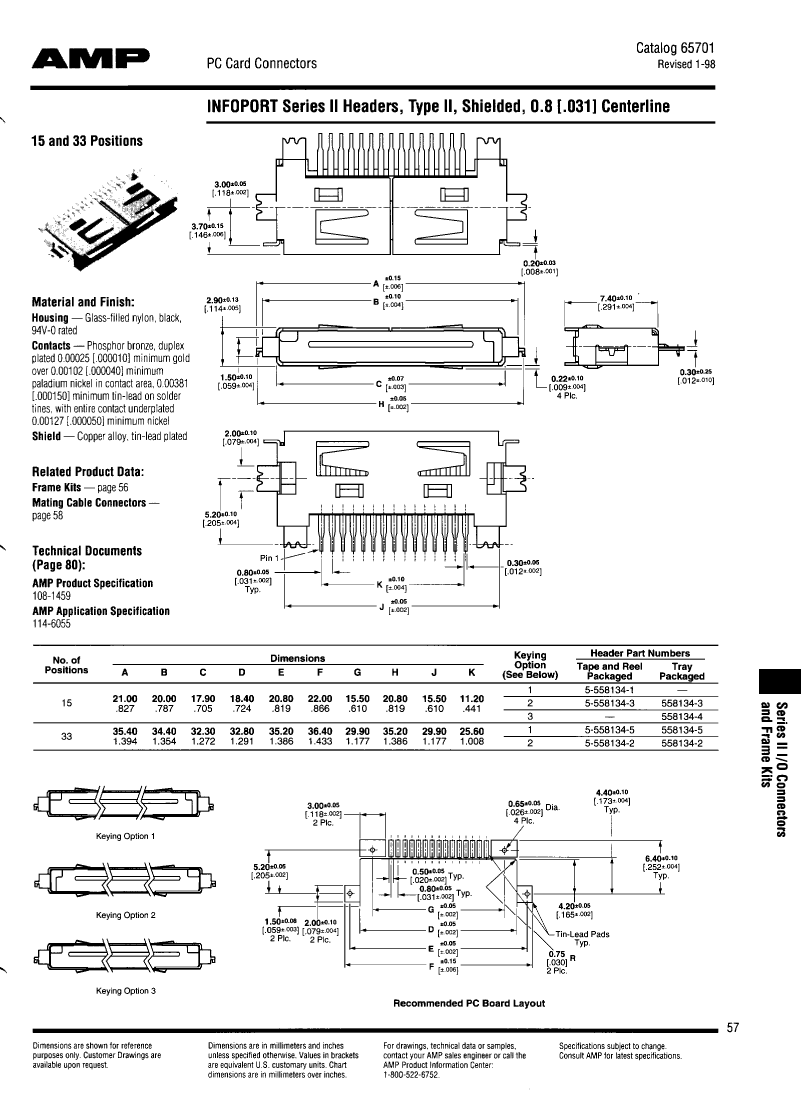

5-558134-1: DescriptionPCMCIA CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-558134-1 Overview

PCMCIA CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH

5-558134-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SHIELDED
Board mount options	POSITIONING PIN
body width	0.114 inch
subject depth	0.291 inch
body length	0.827 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON PD-NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	558134
Plug contact pitch	0.031 inch
Installation method	RIGHT ANGLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

5-558134-1 Related Products

	5-558134-1	G8092064211LF	ML031N02-26M1-M46	558134-5	5-558134-5	558134-3	558134-4	558134-2
Description	PCMCIA CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH	Board Connector	D Type Connector, 31 Contact(s), Male, 0.05 inch Pitch, Solder Lug Terminal, #2-56, Receptacle	PCMCIA CONNECTOR,CABLE MNT,RECEPT,33 CONTACTS,PIN,0.031 PITCH	PCMCIA CONNECTOR,CABLE MNT,RECEPT,33 CONTACTS,PIN,0.031 PITCH	PCMCIA CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH	PCMCIA CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH	PCMCIA CONNECTOR,CABLE MNT,RECEPT,33 CONTACTS,PIN,0.031 PITCH
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SHIELDED	-	TEFLON WIRE MIL-W-22759/11	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Board mount options	POSITIONING PIN	-	-	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN
body width	0.114 inch	-	0.308 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch
subject depth	0.291 inch	-	0.23 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch	0.291 inch
body length	0.827 inch	-	1.335 inch	1.394 inch	1.394 inch	0.827 inch	0.827 inch	1.394 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	PCMCIA CONNECTOR	BOARD CONNECTOR	-	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contactor design	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON PD-NI	-	AU	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI	AU ON PD-NI
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	-	BERYLLIUM COPPER	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	STAGGERED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	-	8 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	-	RND PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	-	900VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	10000 Cycles	-	-	10000 Cycles	10000 Cycles	10000 Cycles	10000 Cycles	10000 Cycles
Insulation resistance	100000000 Ω	-	5000000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	-	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED NYLON	-	LIQUID CRYSTAL POLYMER	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	558134	G809	-	558134	558134	558134	558134	558134
Plug contact pitch	0.031 inch	-	0.05 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Installation method	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Number of connectors	ONE	-	-	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	1	-	2	1	1	1	1	1
Maximum operating temperature	70 °C	-	-	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-	-	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Plating thickness	10u inch	-	50u inch	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	0.5 A	-	3 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL, CSA	-	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	MIL-C-83513	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	15	-	31	33	33	15	15	33
Base Number Matches	1	-	-	1	1	1	1	1
