KM4132G512TQ-7/F7 datasheet, PDF

Datasheet> All Categories > storage> storage> KM4132G512TQ-7/F7

KM4132G512TQ-7/F7: DescriptionSynchronous Graphics RAM, 512KX32, 6ns, CMOS, PQFP100, 14 X 20 MM, 1.20 MM HEIGHT, 0.65 MM PITCH, TQFP-100; Categorystorage storage; File Size2MB，50 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM4132G512TQ-7/F7 Overview

Synchronous Graphics RAM, 512KX32, 6ns, CMOS, PQFP100, 14 X 20 MM, 1.20 MM HEIGHT, 0.65 MM PITCH, TQFP-100

KM4132G512TQ-7/F7 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	TQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-PQFP-G100
length	20 mm
memory density	16777216 bit
Memory IC Type	SYNCHRONOUS GRAPHICS RAM
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	100
word count	524288 words
character code	512000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX32
Package body material	PLASTIC/EPOXY
encapsulated code	TQFP
Package shape	RECTANGULAR
Package form	FLATPACK, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
Base Number Matches	1

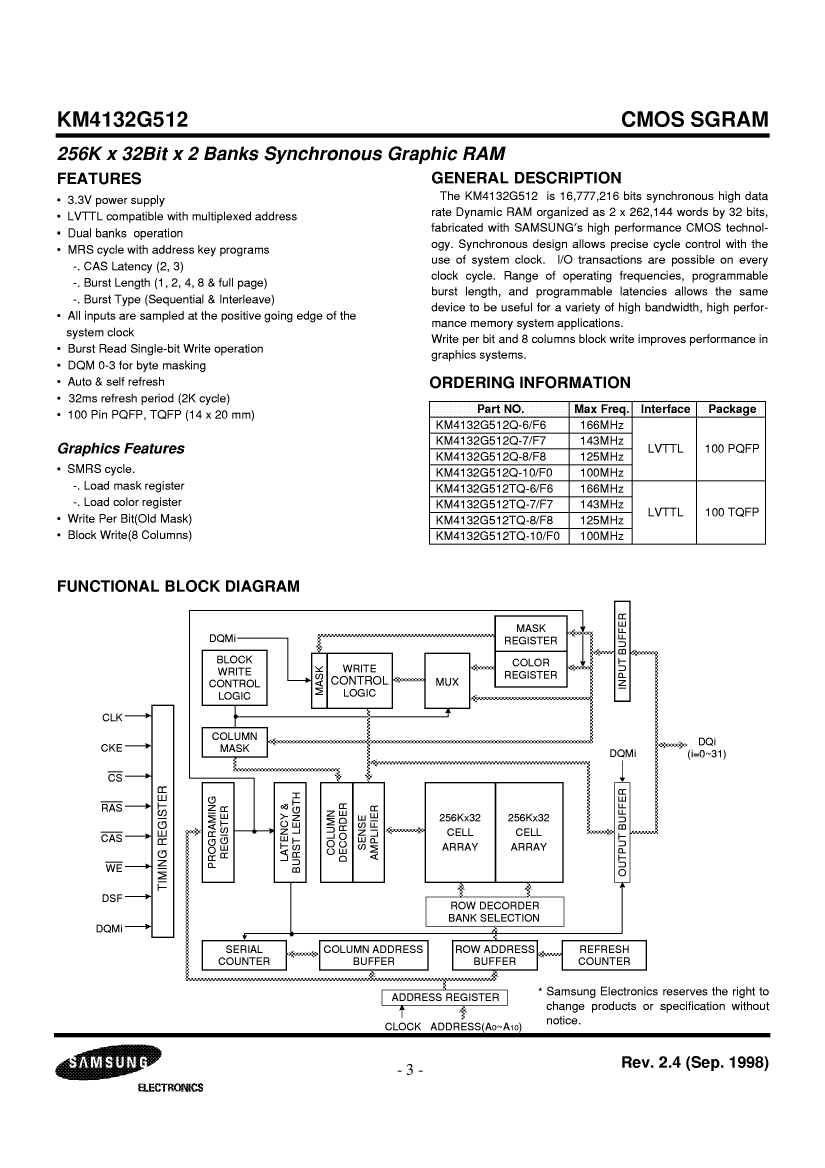

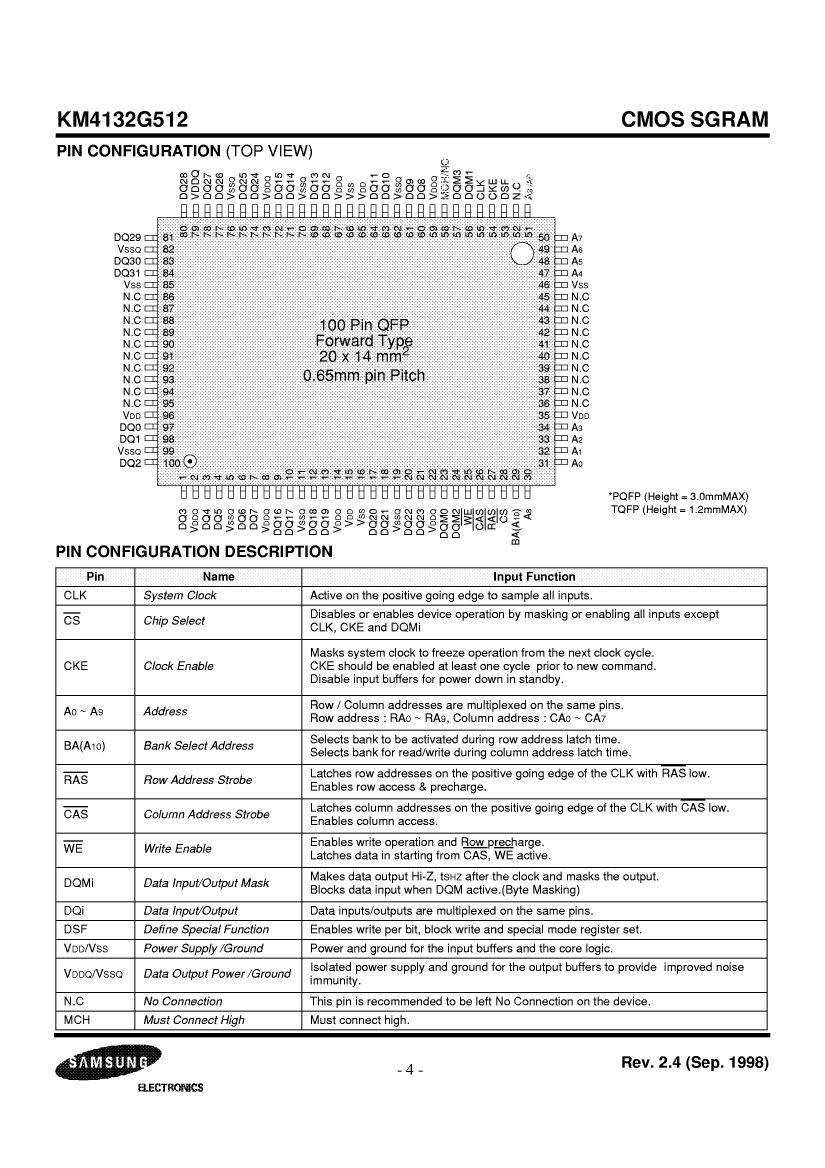

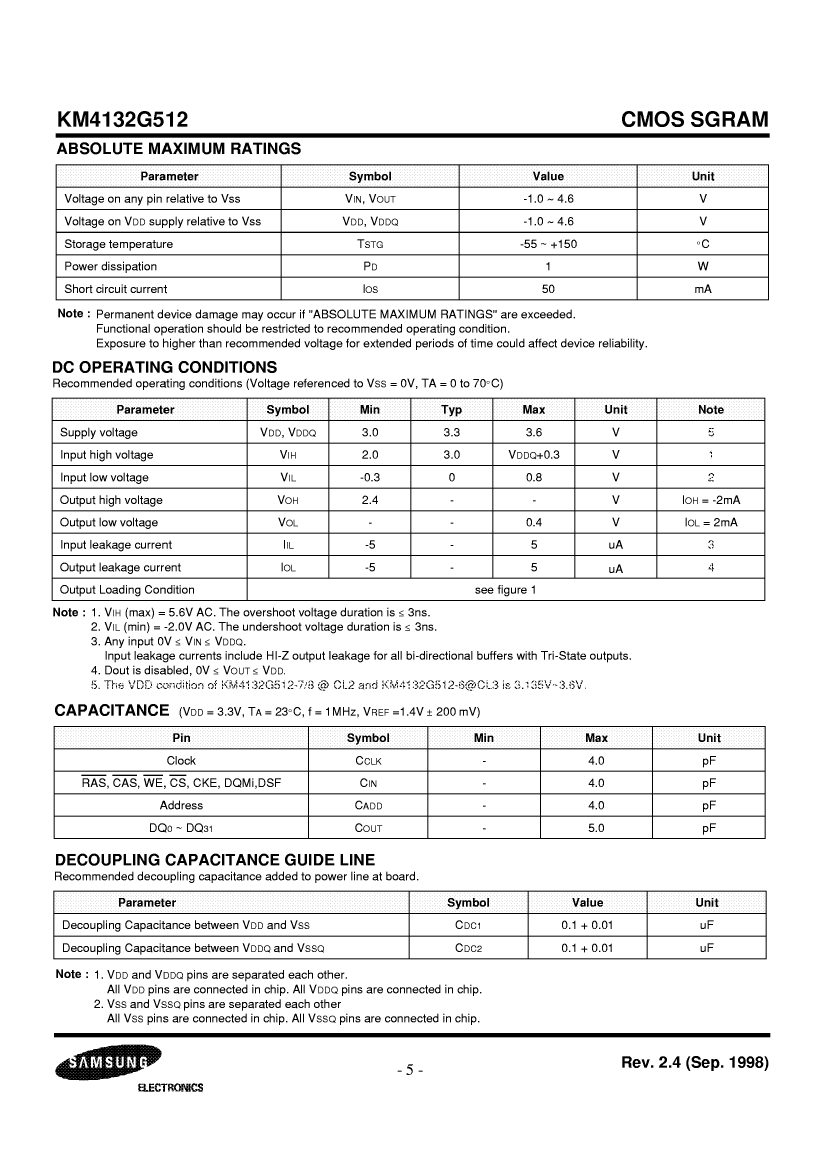

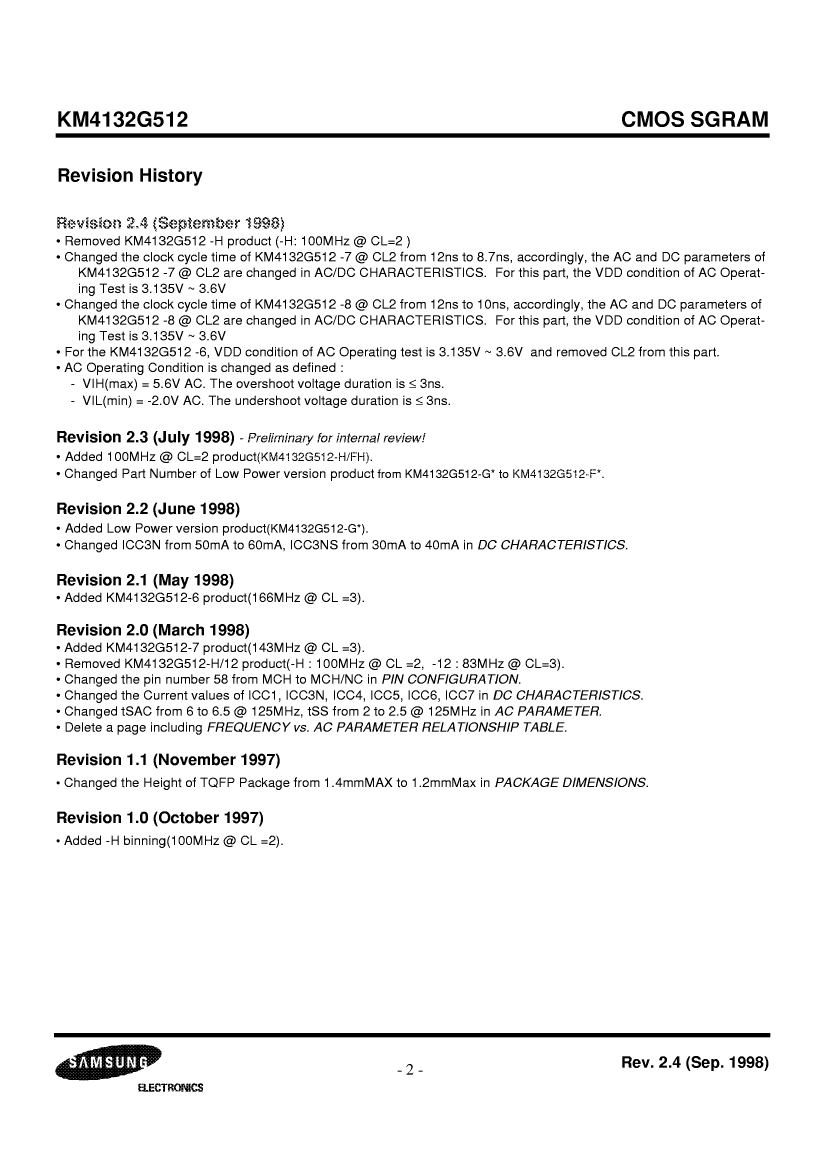

Preview

Download Datasheet

View All

KM4132G512TQ-7/F7 Related Products

	KM4132G512TQ-7/F7	KM4132G512Q-8/F8	KM4132G512Q-7/F7	KM4132G512Q-10/F0	KM4132G512TQ-6/F6	KM4132G512TQ-10/F0	KM4132G512TQ-8/F8	KM4132G512Q-6/F6
Description	Synchronous Graphics RAM, 512KX32, 6ns, CMOS, PQFP100, 14 X 20 MM, 1.20 MM HEIGHT, 0.65 MM PITCH, TQFP-100	Synchronous Graphics RAM, 512KX32, 6.5ns, CMOS, PQFP100, 14 X 20 MM, 3 MM HEIGHT, 0.65 MM PITCH, PLASTIC, QFP-100	Synchronous Graphics RAM, 512KX32, 6ns, CMOS, PQFP100, 14 X 20 MM, 3 MM HEIGHT, 0.65 MM PITCH, PLASTIC, QFP-100	Synchronous Graphics RAM, 512KX32, 7ns, CMOS, PQFP100, 14 X 20 MM, 3 MM HEIGHT, 0.65 MM PITCH, PLASTIC, QFP-100	Synchronous Graphics RAM, 512KX32, 5.5ns, CMOS, PQFP100, 14 X 20 MM, 1.20 MM HEIGHT, 0.65 MM PITCH, TQFP-100	Synchronous Graphics RAM, 512KX32, 7ns, CMOS, PQFP100, 14 X 20 MM, 1.20 MM HEIGHT, 0.65 MM PITCH, TQFP-100	Synchronous Graphics RAM, 512KX32, 6.5ns, CMOS, PQFP100, 14 X 20 MM, 1.20 MM HEIGHT, 0.65 MM PITCH, TQFP-100	Synchronous Graphics RAM, 512KX32, 5.5ns, CMOS, PQFP100, 14 X 20 MM, 3 MM HEIGHT, 0.65 MM PITCH, PLASTIC, QFP-100
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	TQFP,	QFP,	QFP,	QFP,	TQFP,	TQFP,	TQFP,	QFP,
Contacts	100	100	100	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	6 ns	6.5 ns	6 ns	7 ns	5.5 ns	7 ns	6.5 ns	5.5 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM	SYNCHRONOUS GRAPHICS RAM
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	100	100	100	100	100	100	100	100
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32	512KX32
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TQFP	QFP	QFP	QFP	TQFP	TQFP	TQFP	QFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, THIN PROFILE	FLATPACK	FLATPACK	FLATPACK	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK, THIN PROFILE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3 mm	3 mm	3 mm	1.2 mm	1.2 mm	1.2 mm	3 mm
self refresh	YES	YES	YES	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Maker	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG
Base Number Matches	1	1	1	1	1	-	-	-
