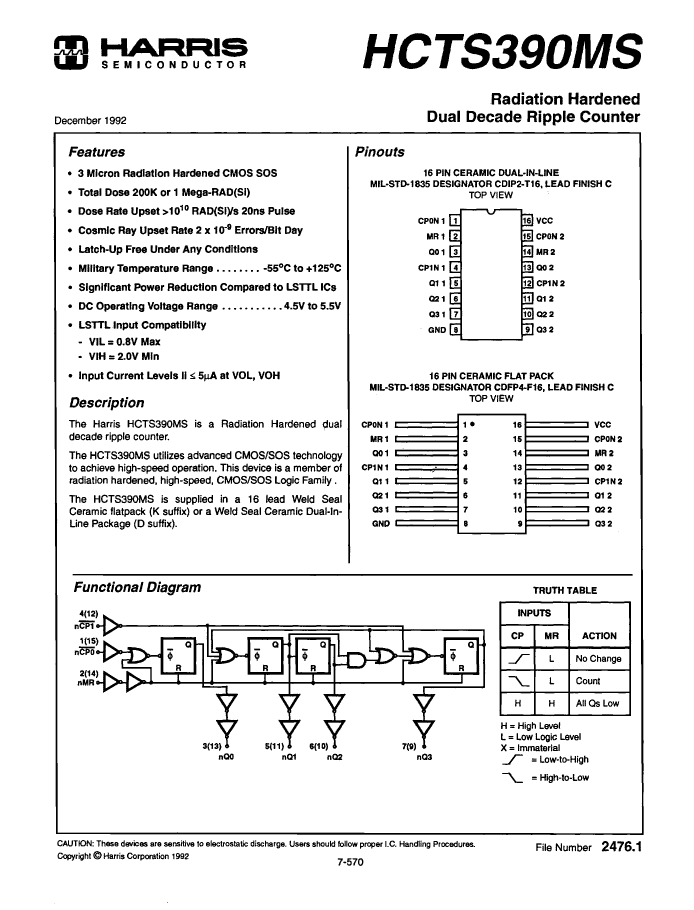

Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDIP16

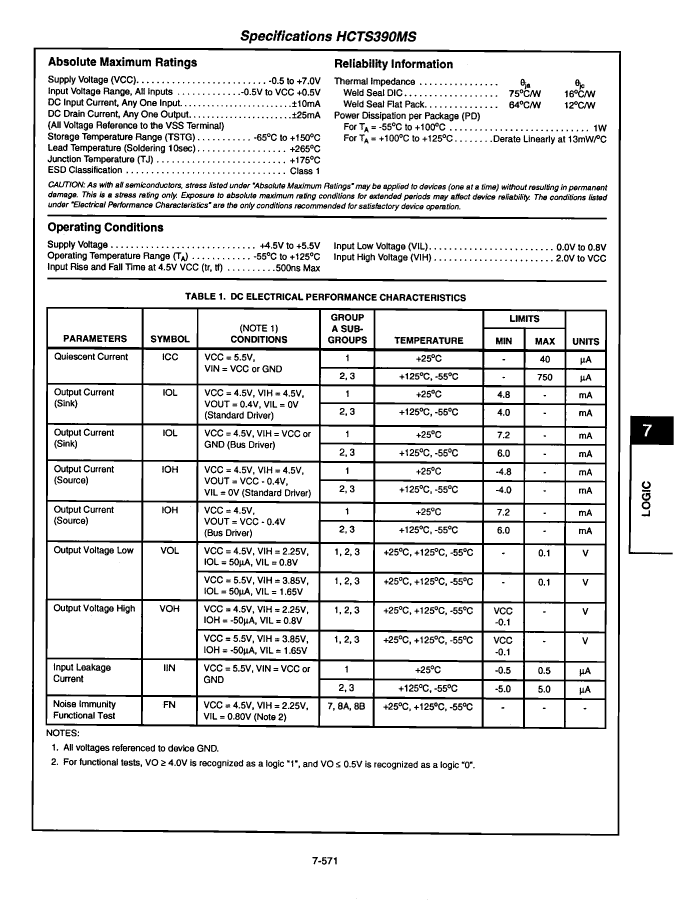

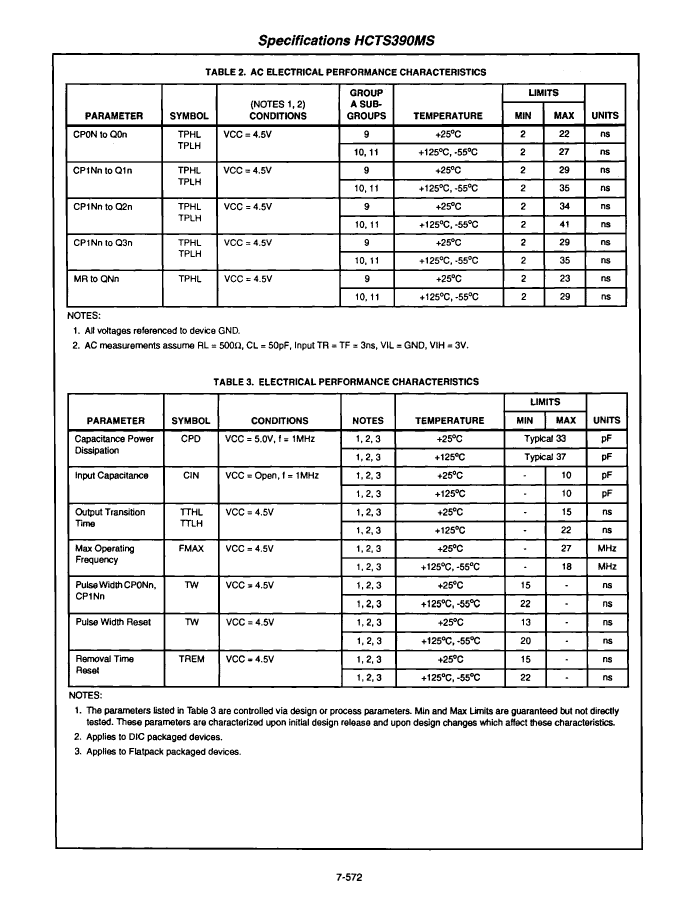

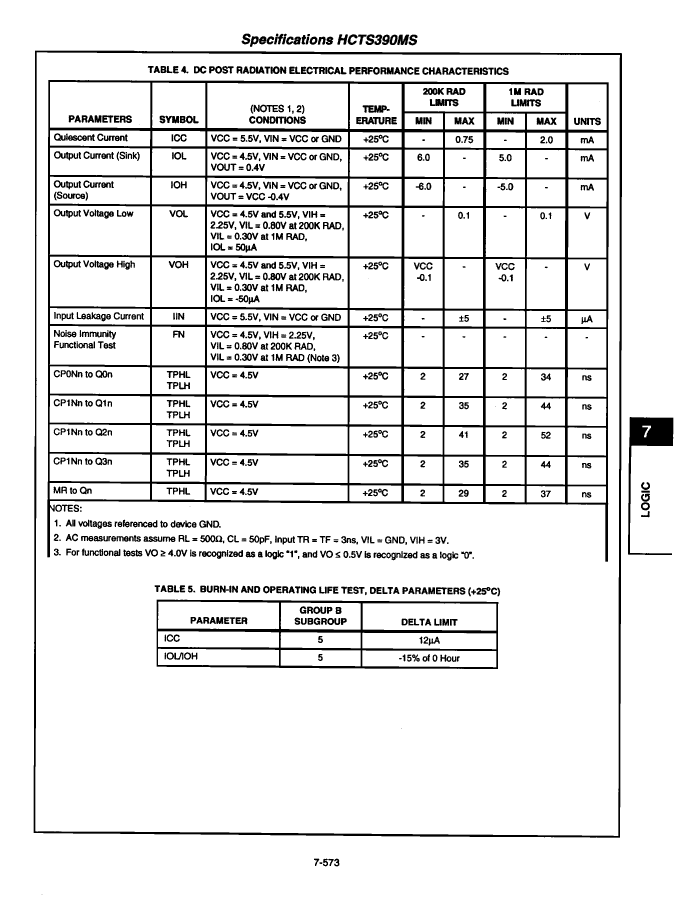

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS |
| Counting direction | UP |
| series | HCT |
| JESD-30 code | R-CDIP-T16 |
| JESD-609 code | e4 |
| Load capacitance (CL) | 50 pF |
| Load/preset input | YES |
| Logic integrated circuit type | DECADE COUNTER |
| Operating mode | ASYNCHRONOUS |
| Number of digits | 3 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 41 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | GOLD |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| total dose | 100k Rad(Si) V |
| Trigger type | NEGATIVE EDGE |
| Base Number Matches | 1 |
| 5962R9574901VEC | 5962R9574901VXX | HCTS390KMSH | 5962R9574901VEX | 5962R9574901VXC | HCTS390DMSH | |
|---|---|---|---|---|---|---|
| Description | Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDIP16 | Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDFP16 | Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDFP16 | Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDIP16 | Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDFP16 | Decade Counter, HCT Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, CMOS, CDIP16 |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown | unknown |
| Other features | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS | DIVIDE BY 2 AND DIVIDE BY 5 FUNCTIONS |
| Counting direction | UP | UP | UP | UP | UP | UP |
| series | HCT | HCT | HCT | HCT | HCT | HCT |
| JESD-30 code | R-CDIP-T16 | R-CDFP-F16 | R-CDFP-F16 | R-CDIP-T16 | R-CDFP-F16 | R-CDIP-T16 |
| Load/preset input | YES | YES | NO | YES | YES | NO |
| Logic integrated circuit type | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Number of digits | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | FLATPACK | IN-LINE | FLATPACK | IN-LINE |
| propagation delay (tpd) | 41 ns | 41 ns | 52 ns | 41 ns | 41 ns | 52 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE | FLAT | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |

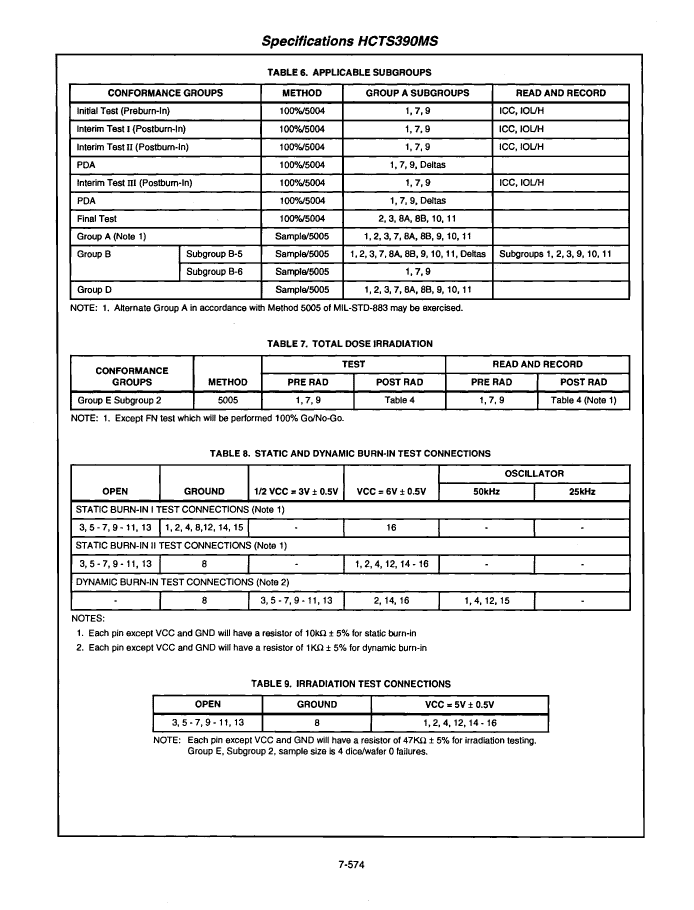

| total dose | 100k Rad(Si) V | 100k Rad(Si) V | 1M Rad(Si) V | 100k Rad(Si) V | 100k Rad(Si) V | 1M Rad(Si) V |
| Trigger type | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| JESD-609 code | e4 | - | e0 | - | e4 | e0 |
| Load capacitance (CL) | 50 pF | - | 50 pF | - | 50 pF | 50 pF |
| Terminal surface | GOLD | - | Tin/Lead (Sn/Pb) | - | GOLD | Tin/Lead (Sn/Pb) |
