2521-2121 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2521-2121

Preview

2521-2121: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2521-2121 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking

2521-2121 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.224 inch
subject depth	0.276 inch
body length	1.28 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	2521
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation option 2	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

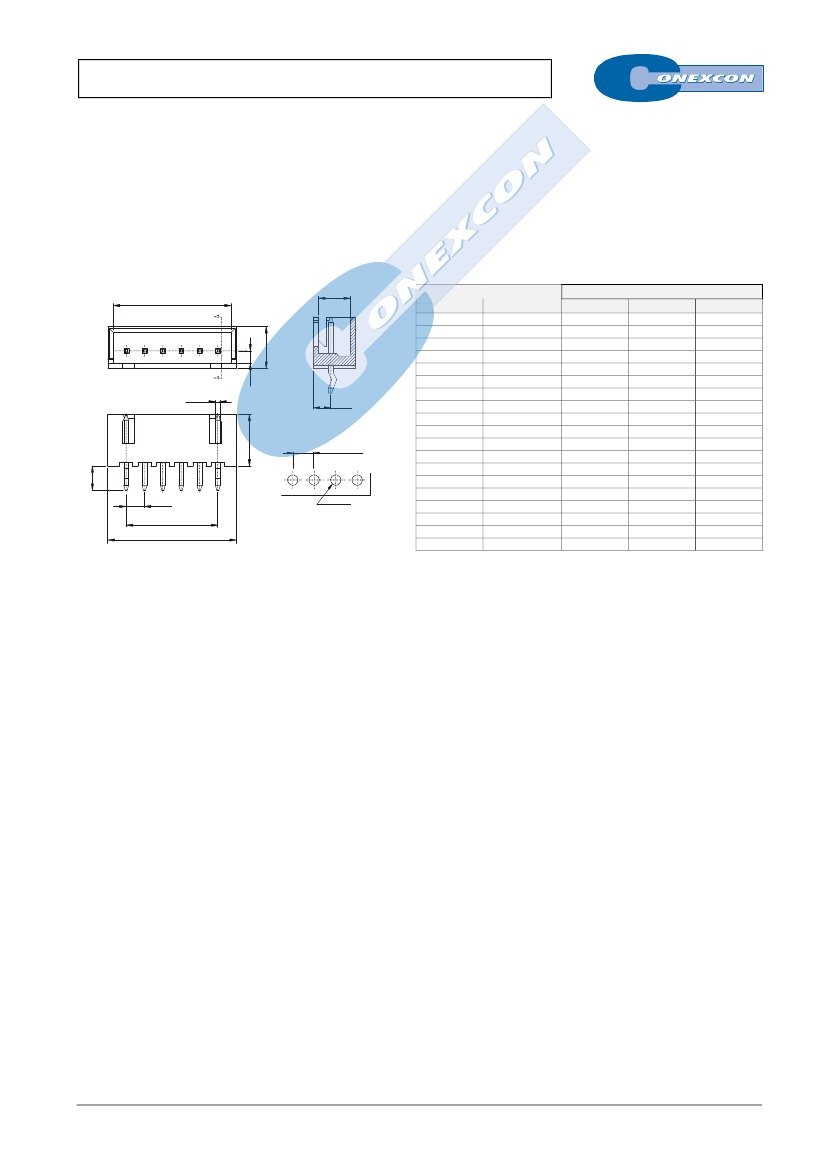

SINGLE ROW SHROUDED STRAIGHT HEADER

2521 SERIES.

2.50mm(0.098”). For PCB Solder

Features



Available in 2 through 20 circuits

Mates with 2520 series socket

Insulator Material: Nylon 6/6 UL 94V-0

0.64mm(0.025”) square pin in brass tinned



Polarisation slots

With standoffs minimise flux wicking

Low profile

Dimensional Information

Ordering and Dimensional Information

Dimensions

A

2,50(0,098)

5,00(0,197)

7,50(0,295)

10,00(0,394)

12,50(0,492)

15,00(0,591)

17,50(0,689)

20,00(0,787)

22,50(0,886)

25,00(0,984)

27,50(1,083)

30,00(1,181)

32,50(1,280)

35,00(1,378)

37,50(1,476)

40,00(1,575)

42,50(1,673)

45,00(1,772)

47,50(1,870)

B

7,50(0,295)

10,00(0,394)

12,50(0,492)

15,00(0,591)

17,50(0,689)

20,00(0,787)

22,50(0,886)

25,00(0,984)

27,50(1,083)

30,00(1,181)

32,50(1,280)

35,00(1,378)

37,50(1,476)

40,00(1,575)

42,50(1,673)

45,00(1,772)

47,50(1,870)

50,00(1,969)

52,50(2,067)

C

6,10(0,240)

8,60(0,339)

11,10(0,437)

13,60(0,535)

16,10(0,634)

18,60(0,732)

21,10(0,831)

23,60(0,929)

26,10(1,028)

28,60(1,126)

31,10(1,224)

33,60(1,323)

36,10(1,421)

38,60(1,520)

41,10(1,618)

43,60(1,717)

46,10(1,815)

48,60(1,913)

51,10(2,012)

C

F

4.30

.169

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

Part Number

2521- 2021

2521-2031

2521-2041

2521-2051

2521-2061

2521-2071

2521-2081

2521-2091

2521-2101

2521-2111

2521-2121

2521-2131

2521-2141

2521-2151

2521-2161

2521-2171

2521-2181

2521-2191

2521-2201

0.64

.025

1.60

.063

F

5.7

.224

2.30

.091

SEC. F-F

.276

7.0

2.50±0.05

.098±.002

3.30

.130

2.50

.098

0.90

.035

A

B

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

D-XX
