832-00039

Description
Data Line Filter, 2 Function(s), 15A, LEAD FREE PACKAGE-4
CategoryAnalog mixed-signal IC    filter
File Size81KB,2 Pages
ManufacturerElec & Eltek
Websitehttp://www.eleceltek.com
Download Datasheet Parametric View All

832-00039 Overview

Data Line Filter, 2 Function(s), 15A, LEAD FREE PACKAGE-4

832-00039 Parametric

Parameter NameAttribute value
MakerElec & Eltek
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum DC resistance0.007 Ω
filter typeDATA LINE FILTER
high27.94 mm
inductance800 µH
length36.83 mm
Manufacturer's serial number832-00039
Installation typeTHROUGH HOLE MOUNT
Number of functions2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
physical sizeL36.83XB21.08XH27.94 (mm)/L1.45XB0.83XH1.1 (inch)
Rated current15 A
width21.08 mm
Base Number Matches1

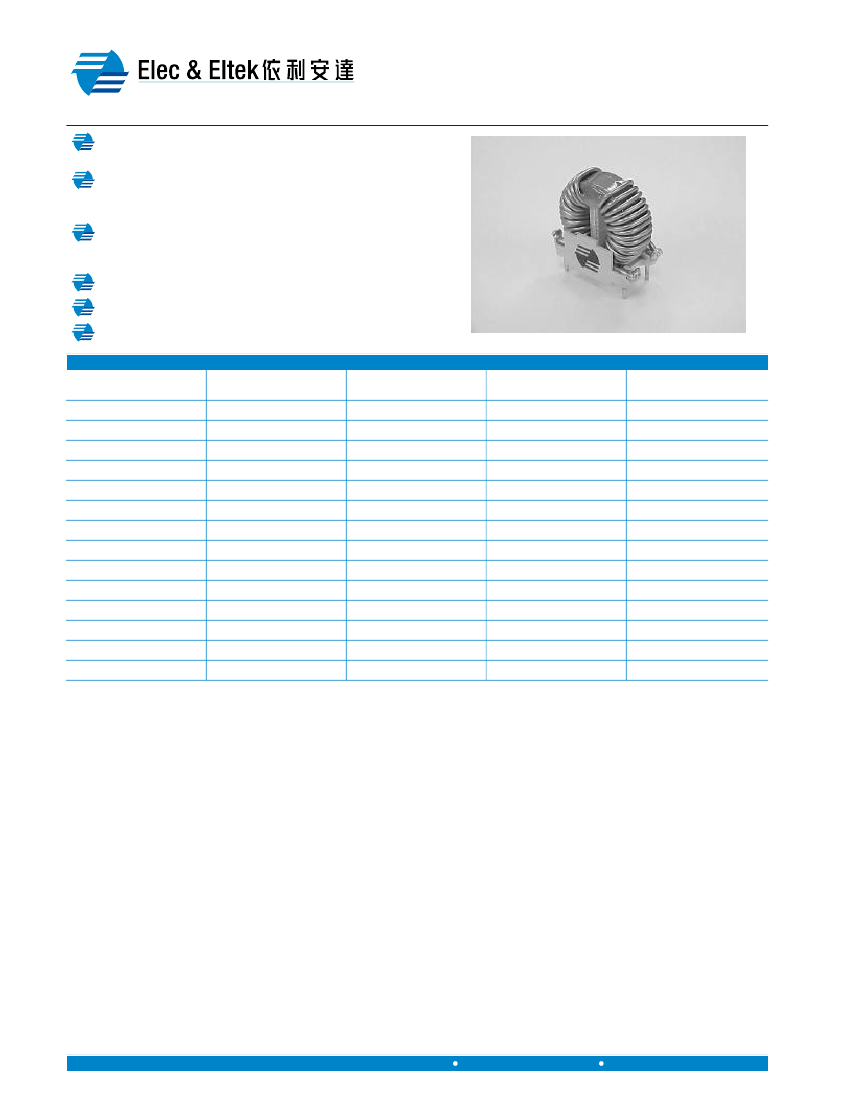

COMMON MODE CHOKE
E & E Magnetic Products Limited
Toroid Type, Vertical Mount
Effective in filtering supply lines having in-phase
S
CHEMATICS
signals of equal amplitude
Substantial attenuation can be achieved when the
part is used in conjunction with input and output
capacitors
Broad frequency range can be filtered by placing
high and low inductance common mode toroids in
series
1250 Vrms isolation between windings
Operating temperature: -40° to +85°C
Lead(Pb)-free versions are available
E
LECTRICAL
S
PECIFICATION @
25°C
Part
Number
832-00052
832-00051
832-00050
832-00049
832-00048
832-00047
832-00046
832-00045
832-00044
832-00043
832-00042
832-00041
832-00040
832-00039
Inductance, Ls
¹
(mH) Min.
7.5
13.0
3.8
6.5
1.9
3.3
1.5
2.6
0.9
1.5
0.7
1.2
0.5
0.8
Leakage Inductance, LL
(
µ
H) Max.
90
190
48
98
26
45
21
41
17
15
14
14
9
10
DCR
(
Ω)
Max.
.270
.415
.106
.145
.038
.055
.029
.040
.014
.013
.011
.011
.007
.007
Rated Current, Irms
(A) Max.
1
1
2
2
4
4
6
6
9
9
12
12
15
15
Notes:
1. Inductance tested at 15.75kHz, 0ADC.
Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2954 3333
Fax: (852) 2954 3304
PC102(02)
Revised in 04/05
