BW-S1-2W263+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BW-S1-2W263+

BW-S1-2W263+: DescriptionFixed Attenuator, 0MHz Min, 26000MHz Max, ROHS COMPLIANT, CASE FF659; CategoryWireless rf/communication Radio frequency and microwave; File Size244KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

BW-S1-2W263+ Overview

Fixed Attenuator, 0MHz Min, 26000MHz Max, ROHS COMPLIANT, CASE FF659

BW-S1-2W263+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	ROHS COMPLIANT, CASE FF659
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=125W
Nominal attenuation	1 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	26000 MHz
Minimum operating frequency
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

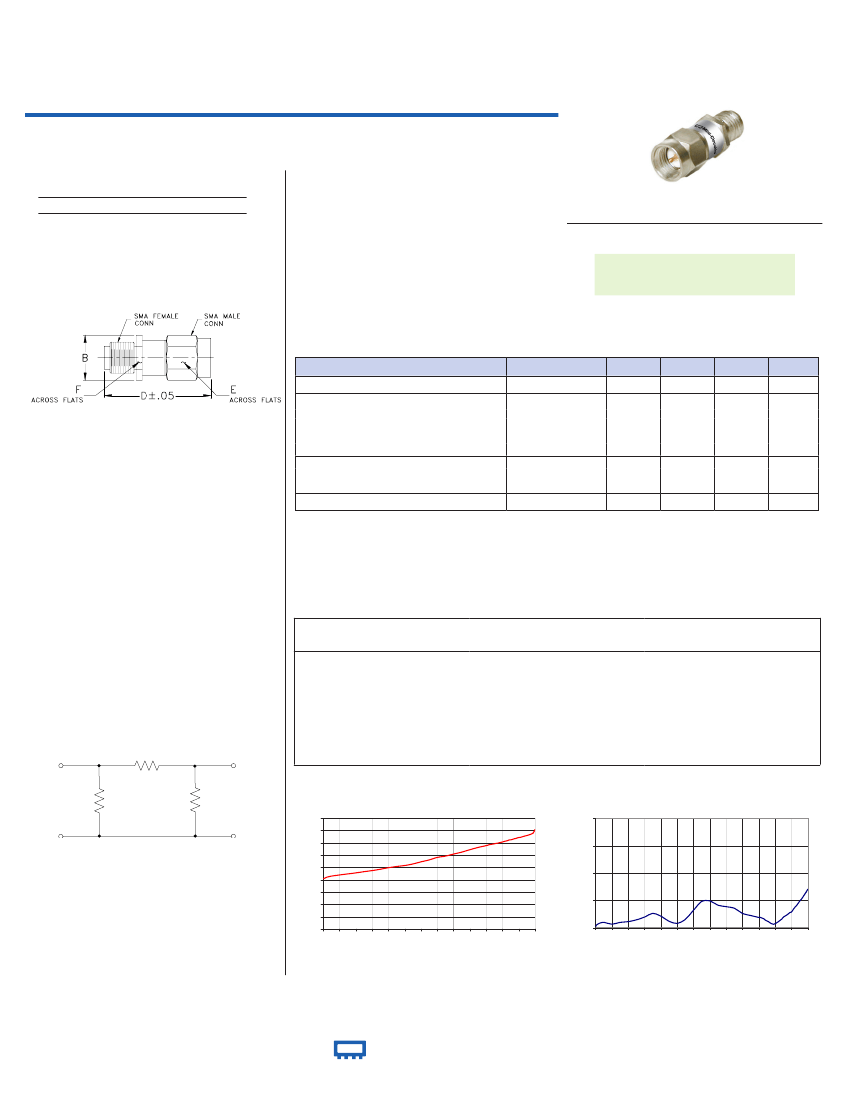

Precision Fixed Attenuator

50Ω

1dB

-55°C to 100°C

-55°C to 100°C**

Coaxial

BW-S1-2W263+

DC to 26 GHz

Features

• DC to 26 GHz

• precise attenuation

• excellent VSWR, 1.09 typ

• stainless steel SMA male and female connectors

CASE STYLE: FF658

Connectors

Model

Price

Qty.

SMA-Fem SMA-Male

BW-S1-2W263+ $34.95 ea. (1-49)

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Maximum Ratings

Operating Temperature

Storage Temperature

**With mated connectors. Unmated, 85°C max.

Permanent damage may occur if any of these limits are exceeded.

Applications

Outline Drawing

• matching

• instrumentation

• test set-ups

Electrical Specifications at 25°C

Parameter

Frequency Range

Attenuation

DC - 26

DC - 12

12 - 18

18 - 26

DC - 12

12 - 18

18 - 26

DC - 26

Condition (GHz)

Min.

—

0.7

—

Typ.

—

1.04

1.09

1.07

—

Max.

—

1.3

1.35

1.75

1.20

1.25

1.40

Unit

GHz

Outline Dimensions (

.36

9.14

.85

21.59

.312

7.92

inch

)

VSWR

Input Power

.312 grams

7.92

4.3

1. At 25°C, accuracy includes frequency and power variations. Temperature coefficient for attenuation: .0004 dB/dB/°C typ.

2. Max. power at 25°C ambient, derate linearly to 0.5W at 100°. Peak power 125W max. 5µsec. pulse width, 100Hz PRF

Typical Performance Data

Frequency

(GHz)

0.01

1.0

4.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

26.0

Attenuation

(dB)

0.82

0.86

0.91

0.99

1.03

1.09

1.16

1.22

1.29

1.35

1.61

VSWR

(:1)

1.01

1.02

1.04

1.02

1.06

1.10

1.08

1.05

1.04

1.14

Electrical Schematic

MALE

FEMALE

1.8

1.6

ATTENUATION (dB)

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0

BW-S1-2W263+

ATTENUATION

1.4

1.3

VSWR

1.2

1.1

1.0

BW-S1-2W263+

VSWR

FREQUENCY (GHz)

Notes

Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp

www.minicircuits.com

P.O. Box 35166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com

Mini-Circuits

REV. A

M135662

BW-S1-2W263+

MD/TH/CP/AM

130918

Page 1 of 1
