Extended Reach 10Gig
™
SFP+ Direct
Attach Active Copper Cable Assemblies
Low Power, Low Latency 10 Gb/s Server Interconnect Solution
As virtualization, consolidation, and convergence initiatives continue to grow, so do the demands placed on the physical infrastructure.
To meet the needs for faster processing speeds, low power server inter-connect and I/O consolidation deployments, Panduit offers
10Gig
™
SFP+ Direct Attach Active Copper Cable Assemblies.
These active SFP+ copper cable assemblies contain low power circuitry in the connector to boost the signal and are driven from the
port without additional power requirements. They provide a low cost alternative to optical transceivers, and are generally used for end
of row or middle of row data center architectures for interconnect distances of up to 15 meters (49 feet).
End-to-end High Speed Data Transport (HSDT) solutions from Panduit deliver enhanced availability, agility, and security.
Visit www.panduit.com/hsdt to learn more about how these solutions help customers manage risk across their physical infrastructure.
Key Features
Low latency performance
Low power active circuitry
Small diameter cable design
Built-in strain relief
Robust construction
Variety of extended reach lengths
100% performance tested
Compliant to SFF-8431, SFF-8432
and SFF-8472
High density deployment
Variety of colors
Part of the Panduit Unified
Physical Infrastructure
SM
solution
Benefits
Ideal for high performance computer clustering and other latency
sensitive applications
Provides a low cost interconnect alternative to optical transceivers that can
be driven off the existing port power
Enables proper cable management and improved air flow
Ensures proper bend radius control for reliable deployment
High speed 10 GHz twin-axial cable, with two shielded parallel pairs, factory
terminated to SFP+ 10 Gb/s hot pluggable modular connectors; rated to a minimum
250 mating cycles
Available in 3, 5 meters and 7 to 15 (one meter increments) for design flexibility in
combination with end of row and middle of row deployment
Confidence that each assembly delivers specified performance for ensured
network availability
Ensuring 10 Gb/s performance when mated to any SFF-8431 SFP+ compliant
host port
Robust easy-to-use latching feature allows high density belly-to-belly
installation and deployments
Available in Blue, White and Black for easy identification of multiple networks and fabrics
Designed to be integrated with Panduit NetAccess
™
Cabinets for design
flexibility, improved thermal and cable management
Key Applications Include:
• End of Row/Middle of Row Switching architectures
• I/O Consolidation and server virtualization
• Fibre Channel over Ethernet (FCoE)
• 10 Gigabit Ethernet
• 10 GbE High Performance Computer Clusters
www.panduit.com
Extended Reach 10Gig
™
SFP+ Direct Attach Active Copper Cable Assemblies

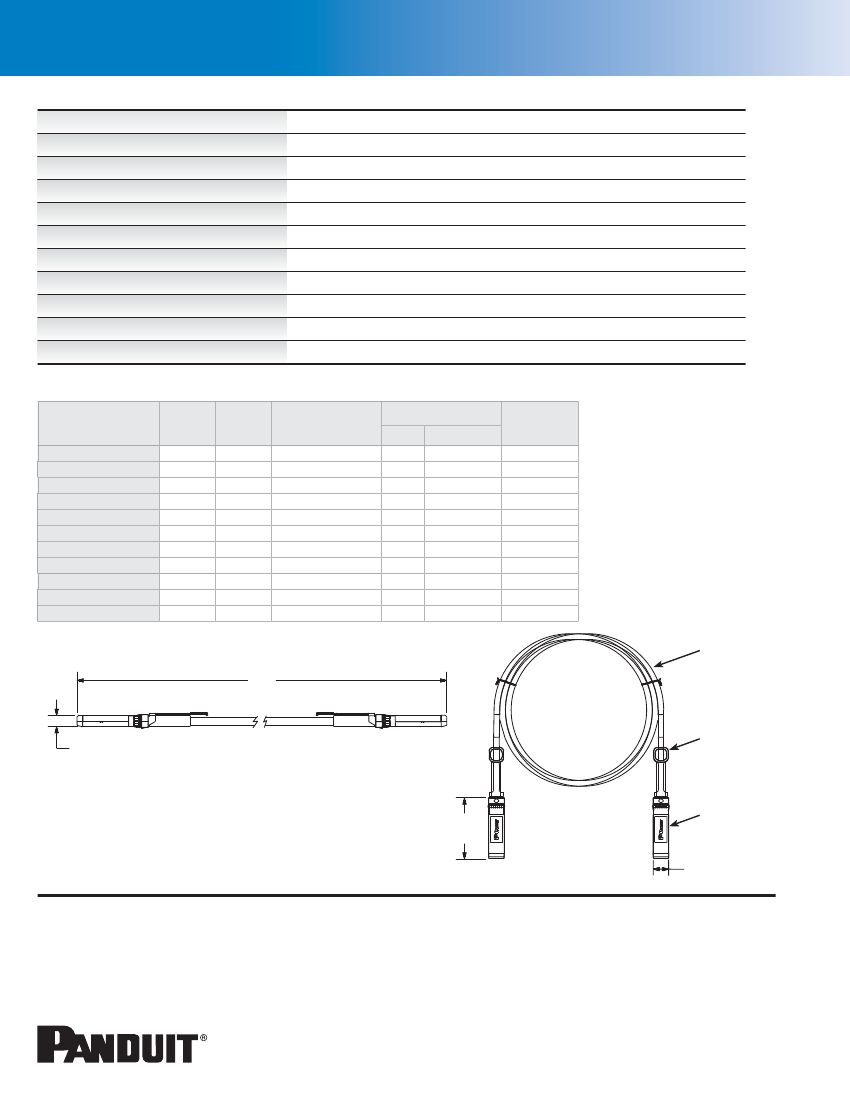

Te c h n i c a l / P e r f o r m a n c e I n f o r m a t i o n
Characteristic impedance
Operating temperature
Non-operating temperature
IEC flame compliance
Bend radius
Insertion force to cage
Withdrawal force from cage
Retention force
ROHS status
Durability
Power per end
100 +/- 5
0°C to 70°C (32°F to 158°F)
-40°C to 85°C (-40°F to 185°F)
IEC 60332-3-24
5 x O.D. single time, 10 x O.D. repeated times
18N (4 lbf.) maximum
12.5N (2.8 lbf.) maximum
90 – 170 N (20 – 38 lbf.)
Compliant
250 mating cycles minimum
0.5 W maximum
Ordering Information
Part Number
PSF1AXA3MBU
PSF1AXA5MBU
PSF1AXD7MBU
PSF1AXD8MBU
PSF1AXD9MBU
PSF1AXD10MBU
PSF1AXD11MBU
PSF1AXD12MBU
PSF1AXD13MBU
PSF1AXD14MBU
PSF1AXD15MBU
Length
(m)
3
5
7
8
9
10
11
12
13
14
15
Length
(Ft.)
9.84
16.40
22.97
26.25
29.53
32.81
36.09
39.37
42.65
45.93
49.21
Cable
Gauge
30 AWG
30 AWG
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
Cable Gauge
mm
4.1
4.1
6
6
6
6
6
6
6
6
6
In.
1.61
1.61
0.23
0.23
0.23
0.23
0.23
0.23
0.23
0.23
0.23
Cable
Jacket
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
PVC
Note: For standard cable colors other than BU (Blue), replace BU in part number with WH (White) or BL (Black).
Gray pull tab release represents an active SFP+ cable assembly.
High Speed
Twin-axial
Cable
“L”
0.34
[8.55]
Pull Tab
Latch
2.07
[52.56]
SFP+
Modular
Connectors
0.54
[13.63]
Dimensions are in inches. [Dimensions in brackets are metric].
