801-046-DAMTPB-48

Description
Cable Assembly
CategoryThe connector    Connector bracket
File Size231KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

801-046-DAMTPB-48 Overview

Cable Assembly

801-046-DAMTPB-48 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Connector bracket typeCABLE ASSEMBLY
Base Number Matches1

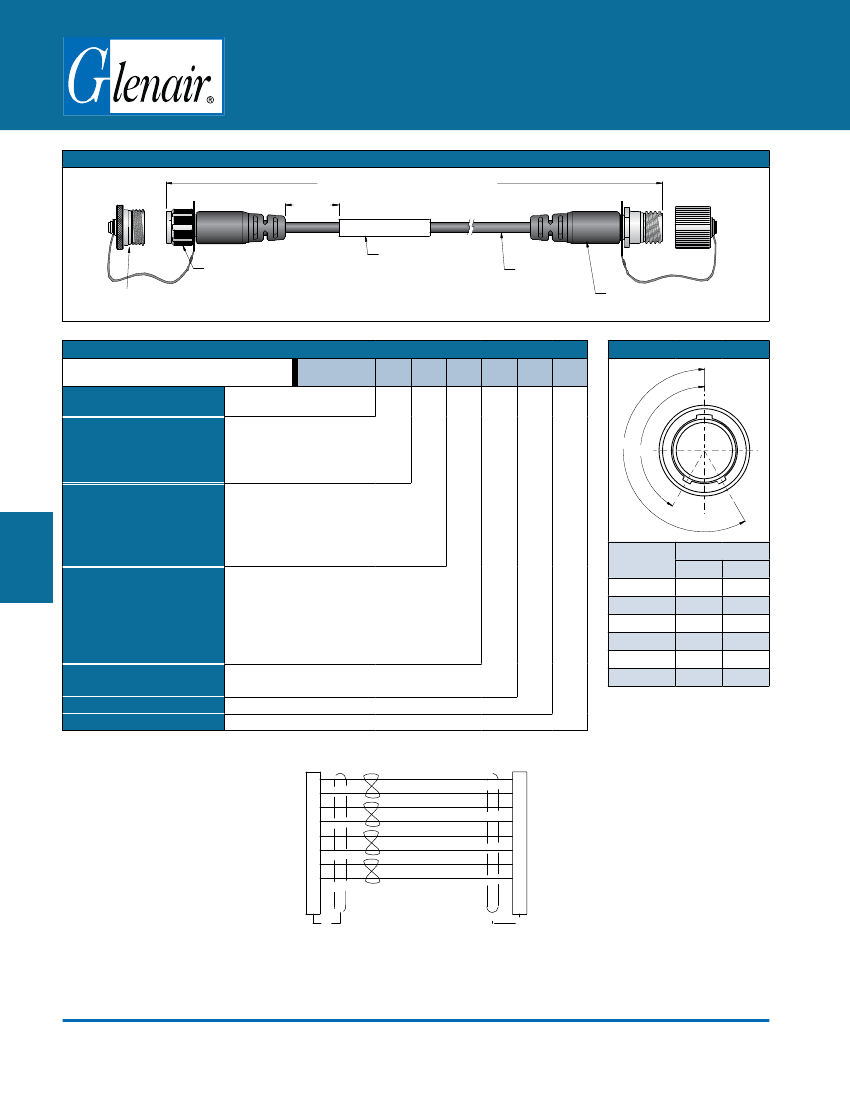

Series 801 10GBASE-T Cat 6a Ethernet Cordsets
Mighty Mouse
High-Speed
Back-to-Back Connector
with Double-Start ACME Threads
801-046 Ordering Information
801-046: Series 801 Mighty Mouse
High-Speed
10GBASE-T Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
(2.00)
P
Shell Material / Finish
Series 801
High-Speed
P1
PROTECTIVE COVER,
667-217 OR 667-218
"PART NUMBER"
GLENAIR YYWW 06324
P2
GLENAIR HIGH-SPEED CONNECTOR,
801-036-16 PLUG OR
801-037-01 RECEPTACLE
7-10 INSERT ARRANGEMENT
(GROMMETS REMOVED)
BRADY LABEL,
LAT-18 OR EQ.
GLENAIR BULK
CAT6A CABLE,
963-003
POLYAMIDE OVERMOLD
How To Order
Sample Part Number
Series
Table I: Shell Key Positions
-A
D
NF
N
A
-48
801-046
801-046
= Back-to-Back eSATA
Overmolded cordset.
-A
= Plug with Pin Contacts
P1 Connector
-B
= Plug with Socket Contacts
-C
= Receptacle with Pin Contacts
-D
= Receptacle with Socket Contacts
A
= Plug with Pin Contacts
B
= Plug with Socket Contacts
C
= Receptacle with Pin Contacts
D
= Receptacle with Socket Contacts
N
= No Connector (Single-Ended)
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab
Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
N
= No Covers Supplied
A
(Normal),
B, C, D, E, F
Overall Length In Inches
WIRING DIAGRAM
P1
8
4
7
3
1
5
10
6
2
9
WHT/ORN 24 AWG
ORN
GRN
BLU
WHT/BLU
BRN
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
WHT/GRN 24 AWG
P2
8
4
7
3
1
5
10
6
2
9
P2 Connector
Key Position
Normal (A)
B
C
D
E
F
Key Rotation
150°
75°
95°
140°
75°
95°
210°
210°
230°
275°
275°
210°
Protective Cover
Shell Key Position (See Table I)
Length
WHT/BRN 24 AWG
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
P-14
E-Mail: sales@glenair.com
