8STA01035PN022 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8STA01035PN022

8STA01035PN022: DescriptionCircular Connector, 13 Contact(s), Aluminum Alloy, Male, Receptacle,; CategoryThe connector The connector; File Size403KB，4 Pages; ManufacturerSOURIAU; Environmental Compliance

Download Datasheet Parametric View All

8STA01035PN022 Overview

Circular Connector, 13 Contact(s), Aluminum Alloy, Male, Receptacle,

8STA01035PN022 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SOURIAU
Reach Compliance Code	compliant
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	FLUID/FUEL RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC PLATED
Shell material	ALUMINUM ALLOY
Housing size	10
Total number of contacts	13
Base Number Matches	1

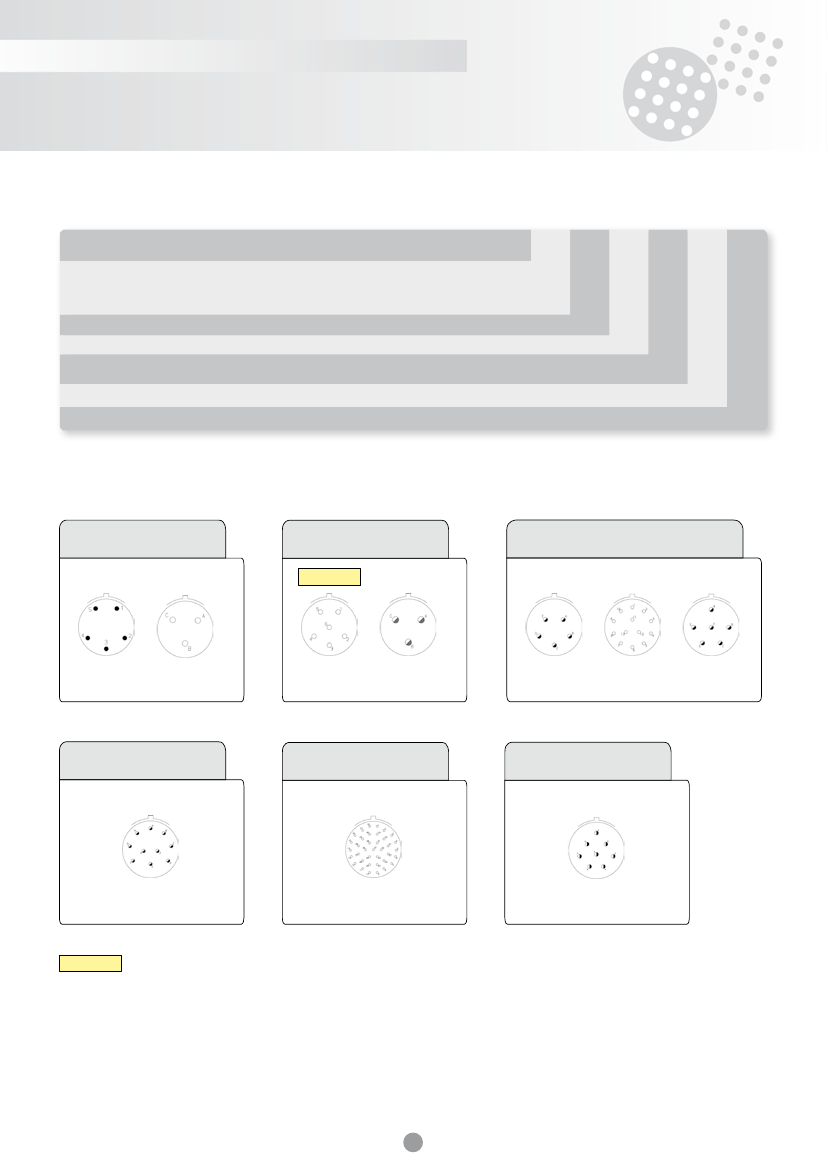

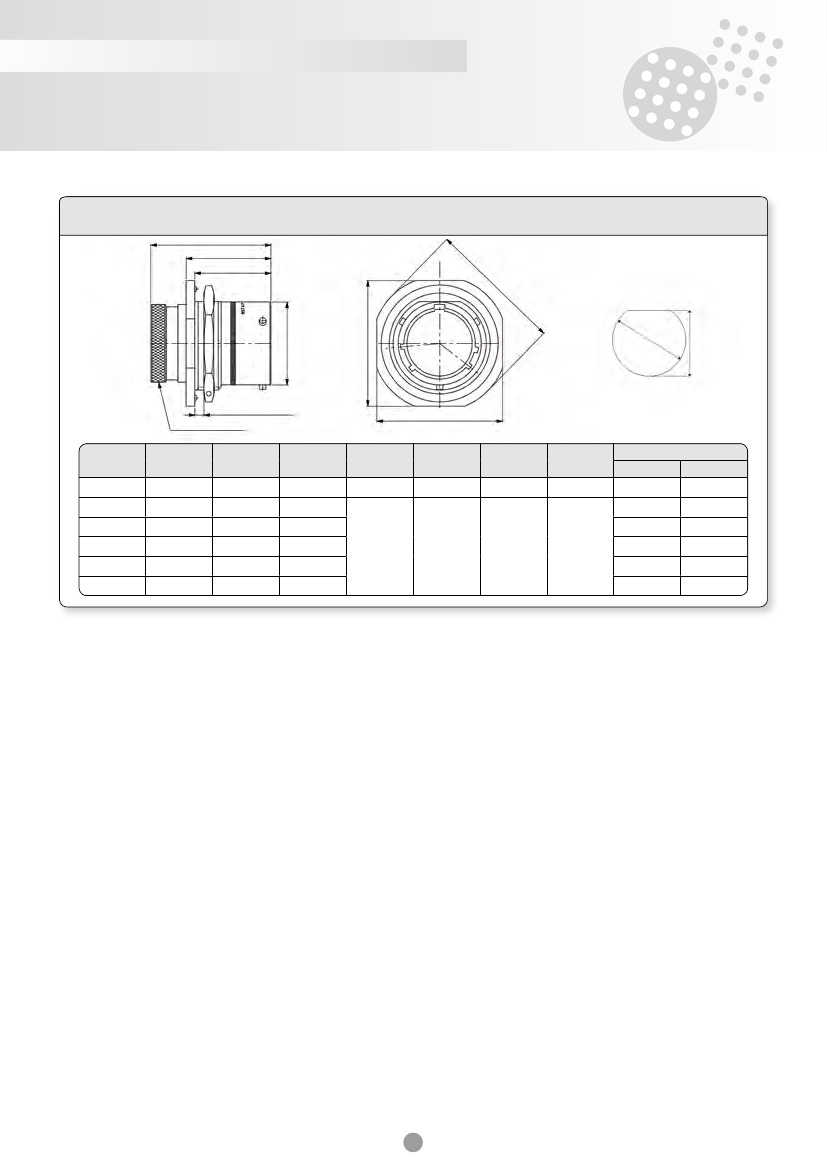

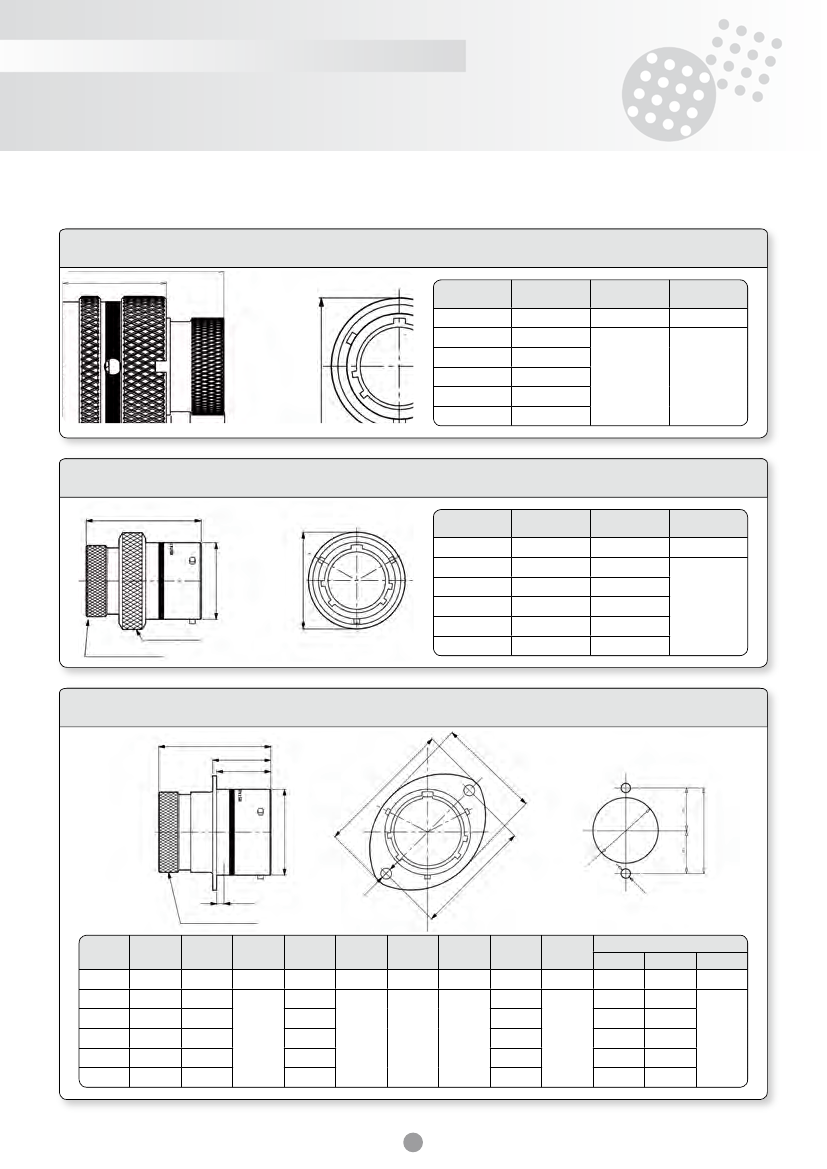

Preview

Download Datasheet

View All

8STA/8TA Fuel Immersible

Features & Benefits

•

Continuous immersion without loss of performance

Special fuel resistant insert

• Excellent connector sealing on panels by using the jam nut

version

Technical characteristics

Mechanical

• Shell

• Shell plating

• Insulator

• Grommet & seal

• Contact

• Contact plating

• Endurance

• Shock

• Vibration

• Contact retention

8STA

8TA

Aluminium alloy

Conductive black zinc

Thermoplastic

Fluoroelastomer

Copper alloy

Gold

500 matings/unmatings

300 g for 3 ms and EIA-364-27

1 m/s2, 10 to 2000 Hz

random 100 to 1000 Hz - 1G²/Hz

Size 22D: 45 N / Size 20: 60 N

Size 22D: 45 N

Size 16: 100 N / Size 1 100 N

300 Vrms

Size 22D: 1

4.6 mΩ / Size 20: 7.3 mΩ

Size 16: 3.8 mΩ / Size 1 3.5 mΩ

Size 22D: 5 A / Size 20: 7.5 A

Size 16: 1 A / Size 1 23 A

Size 22D: 1

4.6 mΩ

≥

5000 mΩ

Size 22D: 5 A

≤10

mΩ

Electrical

• Test voltage

• Contact resistance

• Insulation resistance at 500 Vdc

• Contact rating

• Shell continuity

Climatic

• Temperature range

• Sealing mated connectors

• Salt spray

-55°C to +1

75°C

IP67 (1 metre for 30 min. minimum)

48 hours

withstands most of Motorsport fluids

Resistance to fluids
