26Z035

Description
RF Transformer, 0.05MHz Min, 110MHz Max, 1:1
CategoryPower management    transformer
File Size38KB,1 Pages
ManufacturerVitec Electronics Corporation
Download Datasheet Parametric View All

26Z035 Overview

RF Transformer, 0.05MHz Min, 110MHz Max, 1:1

26Z035 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
maximum cutoff frequency110 MHz
minimum cutoff frequency0.05 MHz
ET product minimum value2.5 V-us
high5.84 mm
length7.62 mm
Manufacturer's serial number26Z035
Installation featuresSURFACE MOUNT
Maximum operating temperature70 °C
Minimum operating temperature
physical size7.62mm X 7.62mm X 5.84mm
Primary inductance40 µH
surface mountYES
Transformer typeRF TRANSFORMER
Turns ratio (Np:Ns)1:1
width7.62 mm
Base Number Matches1

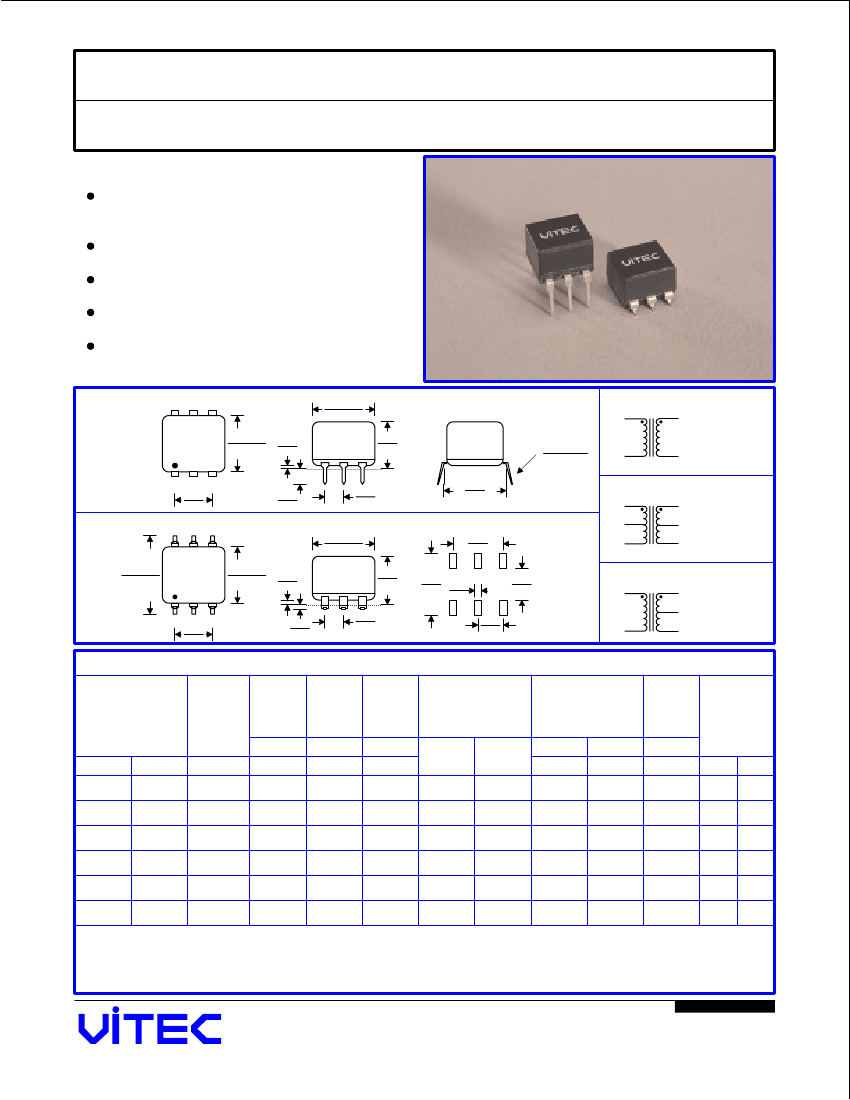

SMD & DIP RF/PULSE TRANSFORMERS
Wideband RF and General Purpose Applications
FEATURES
Designed for use in 50 Ohm wideband RF and fast
rise time pulse applications.
Standard 6 pins DIP or SMD package.
Dielectric test voltage: 1500 Vrms MIN.
Operating temperature: 0
o
C to 70
o
C.
Low cost.
PACKAGE 1
6
5
4
0.300MAX
7.62MAX
0.300MAX
7.62MAX
0.015
0.38
0.230
5.84
@ Seating plane
0.300
0.100
7.60
2.54
Dimensions Inches/mm +/- 0.01" Unless noted
Leads are:
.010 x .020
.25 x .51
SCHEMATIC A
1
6
2 Windings
3
4
VITEC
14Z32XX
1
2
3
0.200
5.08
5
4
0.120
3.05
SCHEMATIC B
1
2
3
6
5
4
2 Windings with
Center Tap
PACKAGE 2
0.415MAX
10.54MAX
6
Pad Layout
0.300MAX
7.62MAX
0.200
2.08
0.230
5.84
VITEC
26Z0XX
1
2
3
0.200
5.08
0.300MAX
7.62MAX
0.015
0.38
0.430
10.92 0.030
0.76
0.290
7.37
SCHEMATIC C
1
6
5
3
4
2 Windings with
Secondary CT
0.015
0.38
0.100
0.230
2.54
5.84
Dimensions Inches/mm +/- 0.01" Unless noted
ELECTRICAL CHARACTERISTICS @ 25
o
C
Turns
Ratio
+/- 5%
1:1
1CT:1CT
1:2CT
1:1.41CT
1:4CT
1CT:1CT
Part Number
L
P
uH
L
L
uH
MAX
0.15
0.18
0.14
0.20
0.10
0.18
C
C
pF
MAX
12
15
15
18
10
15
DCR
3 dB
Bandwidth
SEC
0.20
0.20
0.30
0.30
0.60
0.20
Mhz
TYP
0.05
0.05
0.10
0.05
0.20
0.05
Mhz
TYP
110
90
110
80
60
90
ET
Constant
VuS
MIN
2.5
2.5
2.0
2.5
1.25
2.5
Package &
Schematic
DIP
1A
1B
1C
1C
1C
1B
SMD
2A
2B
2C
2C
2C
2B
DIP
14Z3235
14Z3236
14Z3237
14Z3238
14Z3239
14Z3246
Notes: -
SMD
26Z035
26Z036
26Z037
26Z038
26Z039
26Z046
MIN
40
40
25
40
10
80
PRI
0.20
0.20
0.20
0.20
0.20
0.20
G-301
05/01
1
Vitec Electronics Corporation
www.VitecCorp.com
