35S102-301D3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35S102-301D3

35S102-301D3: DescriptionRF SSMB Connector, Male, Cable Mount, Crimp Solder Terminal, Plug; CategoryThe connector The connector; File Size163KB，4 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

35S102-301D3 Overview

RF SSMB Connector, Male, Cable Mount, Crimp Solder Terminal, Plug

35S102-301D3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	CAPTIVE CONTACT; INSERTION LOSS MAX AT 1GHZ; APPLICABLE CABLES:RG 178, RG 196
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SSMB CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SSMB
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	3 GHz
Panel mounting	NO
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

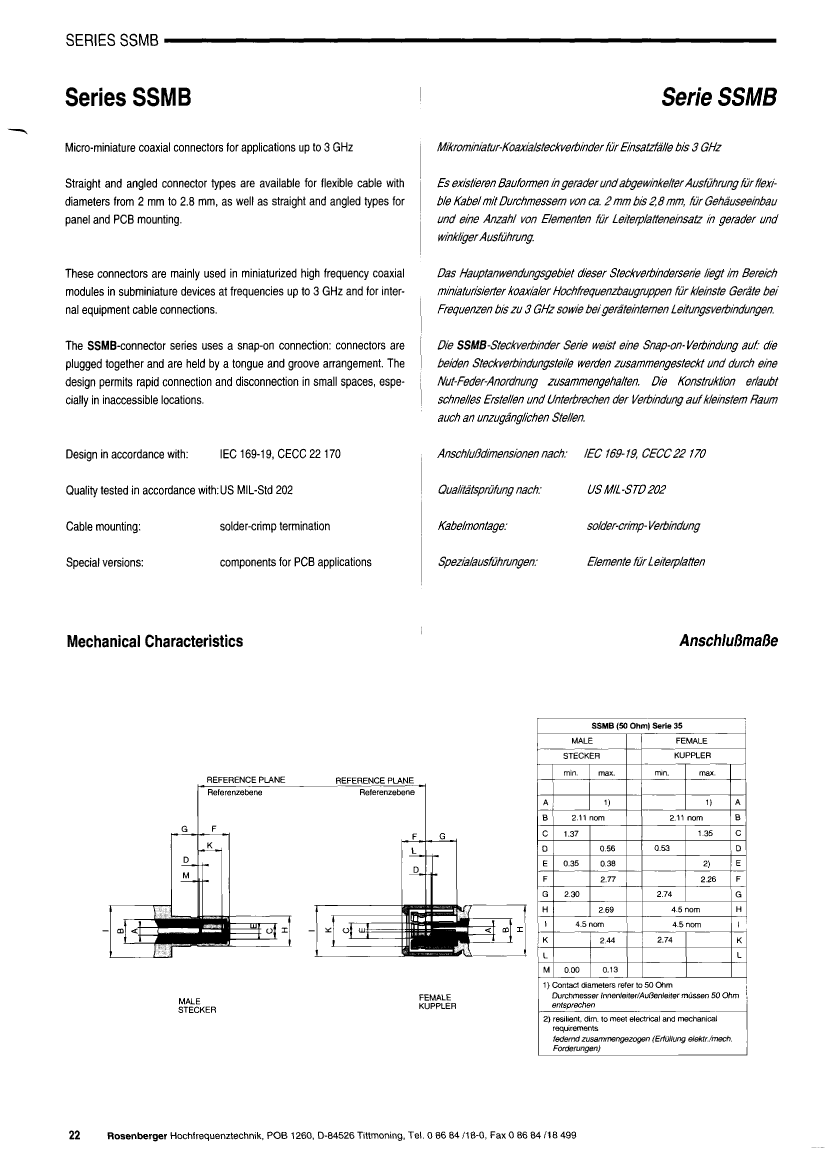

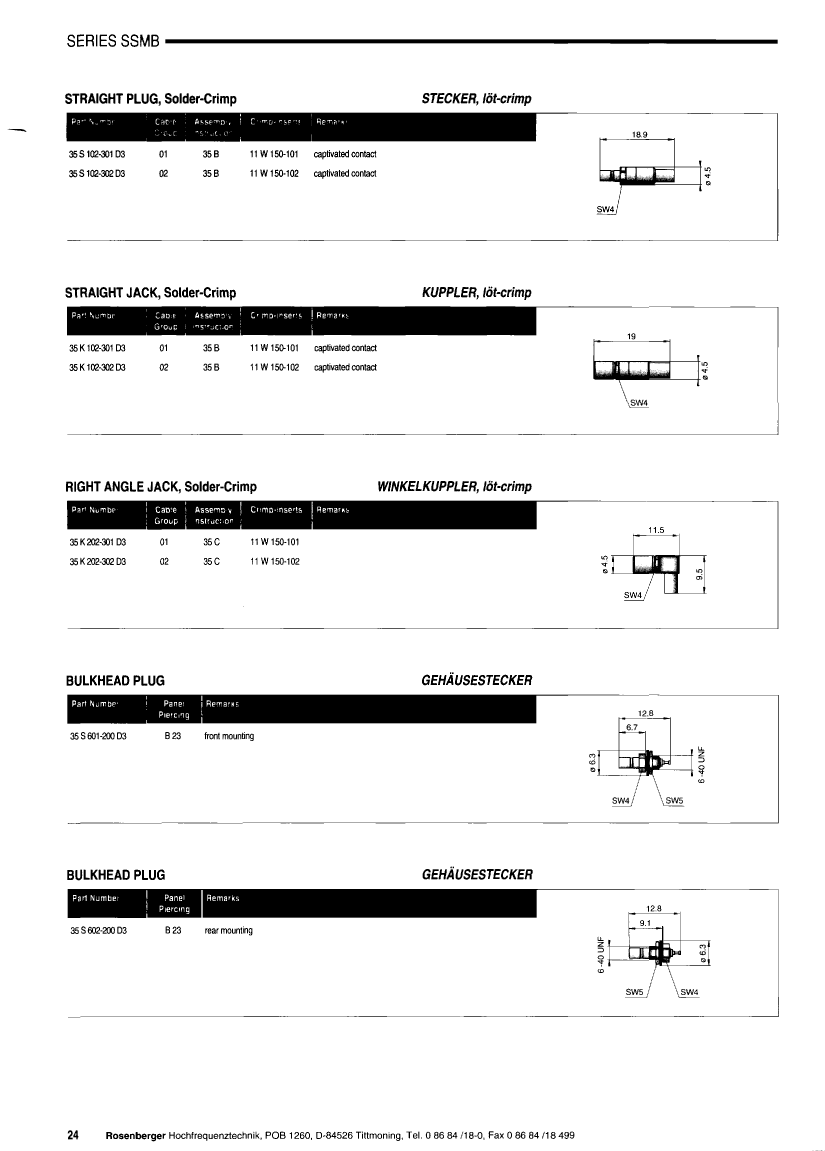

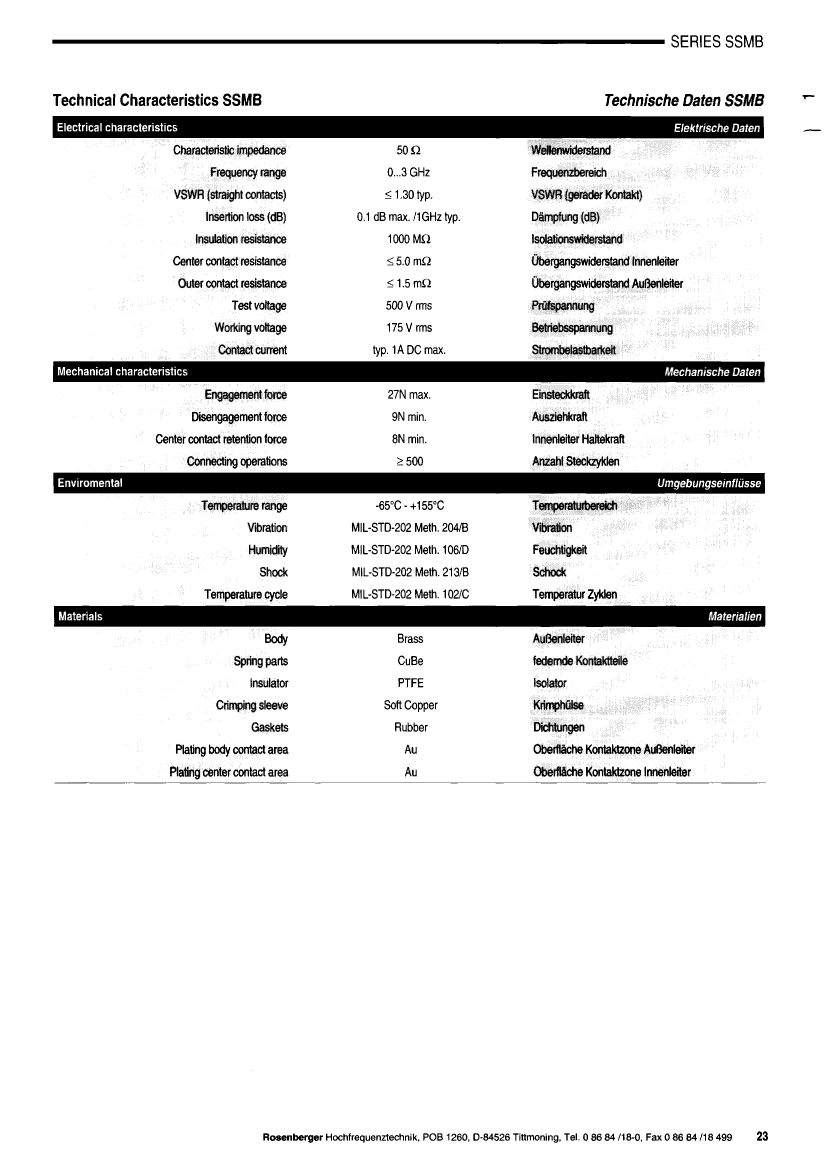

Preview

Download Datasheet

View All

35S102-301D3 Related Products

	35S102-301D3	35K202-301D3	35S602-200D3	35K102-301D3	35K102-302D3	35K202-302D3	35S102-302D3	35S201-400D3
Description	RF SSMB Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMB Connector, Male, Panel Mount, Solder Terminal, Plug	RF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack	RF SSMB Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF SSMB Connector, Male, Board Mount, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	CAPTIVE CONTACT; INSERTION LOSS MAX AT 1GHZ; APPLICABLE CABLES:RG 178, RG 196	INSERTION LOSS MAX AT 1GHZ	INSERTION LOSS MAX AT 1GHZ	CAPTIVE CONTACT; INSERTION LOSS MAX AT 1GHZ; APPLICABLE CABLES:RG 178, RG 196	CAPTIVE CNTCT; INSERTION LOSS MAX AT 1GHZ; APPLICABLE CABLES:RG 174, RG 188, RG 316, K02232, G02233	INSERTION LOSS MAX AT 1GHZ	CAPTIVE CNTCT; INSERTION LOSS MAX AT 1GHZ; APPLICABLE CABLES:RG 174, RG 188, RG 316, K02232, G02233	INSERTION LOSS MAX AT 1GHZ
Body/casing type	PLUG	JACK	PLUG	JACK	JACK	JACK	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR	RF SSMB CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Maximum operating frequency	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz	3 GHz
Panel mounting	NO	NO	YES	NO	NO	NO	NO	NO
Termination type	CRIMP SOLDER	CRIMP/SOLDER	SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP/SOLDER	CRIMP SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1
Installation type	CABLE	CABLE	-	CABLE	CABLE	CABLE	CABLE	BOARD
voltage standing wave ratio	1.3	-	1.3	1.3	1.3	-	1.3	-
Maker	-	Rosenberger	-	Rosenberger	Rosenberger	Rosenberger	Rosenberger	-
