54114BS: DescriptionRing Terminal, 194mm2, ROHS COMPLIANT; CategoryThe connector terminals; File Size31KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric View All

54114BS Overview

Ring Terminal, 194mm2, ROHS COMPLIANT

54114BS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	RING TERMINAL
Conductor cross section	194 mm2
Base Number Matches	1

Preview

Download Datasheet

View All

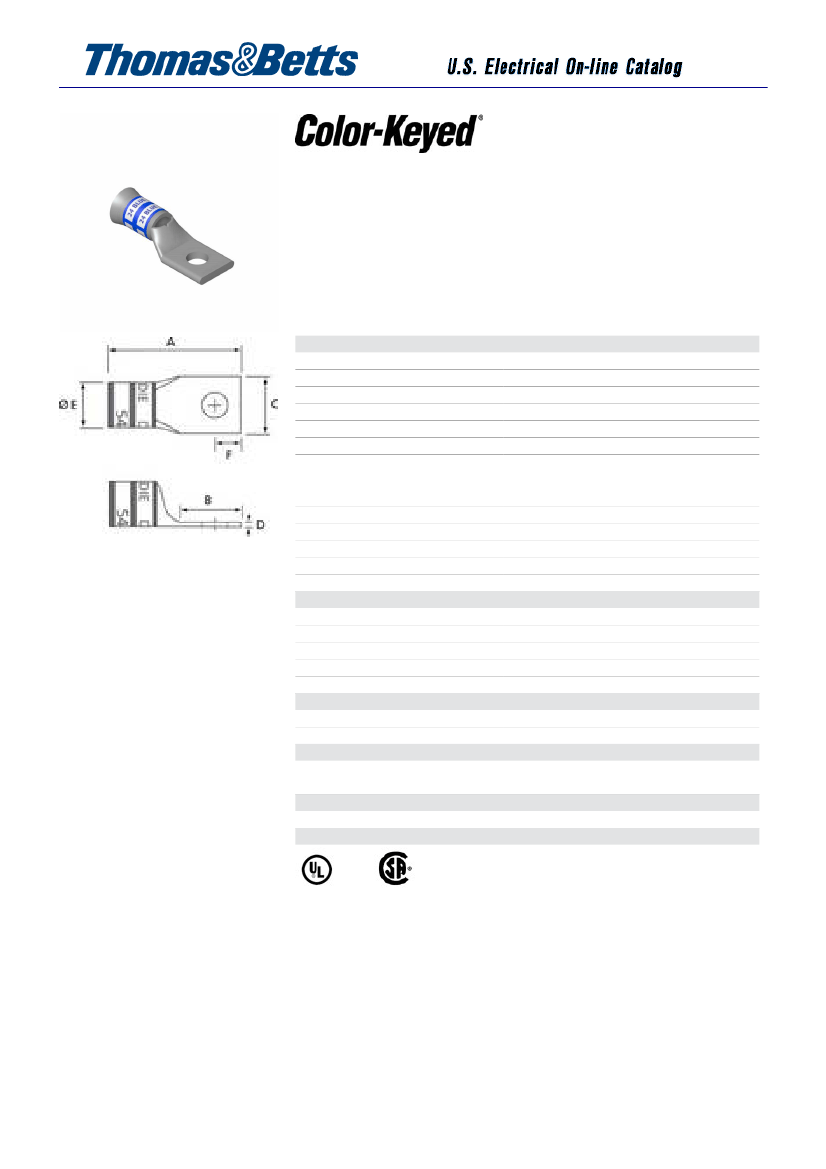

T&B Catalog Number:

UPC Number:

Description:

54114BS

78621095464

Copper One-Hole Lug - Straight Standard

Belled End Barrel - max 35KV, 300 kcmil

Wire, 1/2" Bolt Size, Tin Plated with Inspec-

tion Hole, White 66

Active

Status:

General

-Material

-Finish

-Wire Size

-Number of Studs

-Stud Size

-Tongue Angle

-Barrel Length

-Barrel Shape

-Tongue Width

-Peep Hole

-Marking

-Hole Shape

-Die Color

-Die Code

Copper

Tin Plated

300 kcmil

1

1/2

Straight

Standard

Belled End

Standard

Y

Standard

Round

White

66

100

10

100

Each

18 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Yes

Packaging

-T&B Order Multiple

-T&B Inner Pack

-Package in Units

-T&B Sold in UOM

-T&B Weight Per UOM

Application Support

-Overview

-Connector & Tooling Chart

Notes

-

Certifications

-RoHS Compliance

Certifications

File Nbr:

E9809

For further technical assistance, please contact us...

Thomas & Betts - USA

8155 T&B Blvd.

Memphis, TN 38125

www.tnb.com

T&B Technical Support

MS 3B-50

8155 T&B Blvd.

Memphis, TN 38125

Hours: 7AM - 6PM CDT

Monday-Friday

Phone: (888) 862-3289

Fax: (901) 252-1321

Email:techsupport@tnb.com
