PC33996EK/R2

Description
1.2A PWM BASED PRPHL DRVR, PDSO32, LEAD FREE, PLASTIC, SOIC-32
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size451KB,16 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

PC33996EK/R2 Overview

1.2A PWM BASED PRPHL DRVR, PDSO32, LEAD FREE, PLASTIC, SOIC-32

PC33996EK/R2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNXP
Parts packaging codeSOIC
package instructionHSSOP,
Contacts32
Reach Compliance Codecompliant
Built-in protectionOVER CURRENT; OVER VOLTAGE; UNDER VOLTAGE
Interface integrated circuit typePWM BASED PERIPHERAL DRIVER
JESD-30 codeR-PDSO-G32
JESD-609 codee3
length11 mm
Humidity sensitivity level3
Number of functions1
Number of terminals32
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Nominal output peak current1.2 A
Package body materialPLASTIC/EPOXY
encapsulated codeHSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)240
Certification statusNot Qualified
Maximum seat height2.65 mm
Maximum supply voltage27 V
Minimum supply voltage5 V
surface mountYES
Temperature levelAUTOMOTIVE
Terminal surfaceTIN
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
Disconnect time50 µs
connection time50 µs
width7.5 mm
Base Number Matches1
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Document order number: MC33996
Rev 1.0, 01/2004
Preliminary Information
16-Output Switch with SPI Control
The 33996 is a 16-output low-side switch with a 24-bit serial input control.
It is designed for a variety of applications including inductive, incandescent,
and LED loads. The Serial Peripheral Interface (SPI) provides both input
control and diagnostic readout. A Pulse Width Modulation (PWM) control input
is provided for pulse width modulation of multiple outputs at the same duty
cycle. A dedicated reset input provides the ability to clear all internal registers
and turn all outputs off.
The 33996 directly interfaces with microcontrollers and is compatible with
both 3.3 V and 5.0 V CMOS logic levels. The 33996, in effect, serves as a bus
expander and buffer with fault management features that reduce the MCU’s
fault management burden.
Features
• Designed to Operate 5.0 V < V
PWR
< 27 V
• 24-Bit SPI for Control and Fault Reporting, 3.3 V/5.0 V Compatible
• Outputs Are Current Limited (0.9 A to 2.5 A) to Drive Incandescent
Lamps
• Output Voltage Clamp of +50 V During Inductive Switching
• On/Off Control of Open Load Detect Current (LED Application)
• V
PWR
Standby Current < 10
µA
• R
DS(ON)
of 0.55
at 25°C Typical
Independent Overtemperature Protection
Output Selectable for PWM Control
Output ON Short-to-V
BAT
and OFF Short-to-Ground/Open Detection
32-Pin Exposed Pad Package for Thermal Performance
Pb-Free Packaging Designated by Suffix Code EK
33996
DUAL OCTAL SERIAL SWITCH
WITH SERIAL PERIPHERAL
INTERFACE I/O
EK (Pb-FREE) SUFFIX
CASE 1454-01
32-LEAD SOICW EXPOSED PAD
ORDERING INFORMATION
Device
PC33996EK/R2
Temperature
Range (T
A
)
-40°C to 125°C
Package
32 SOICW-EP

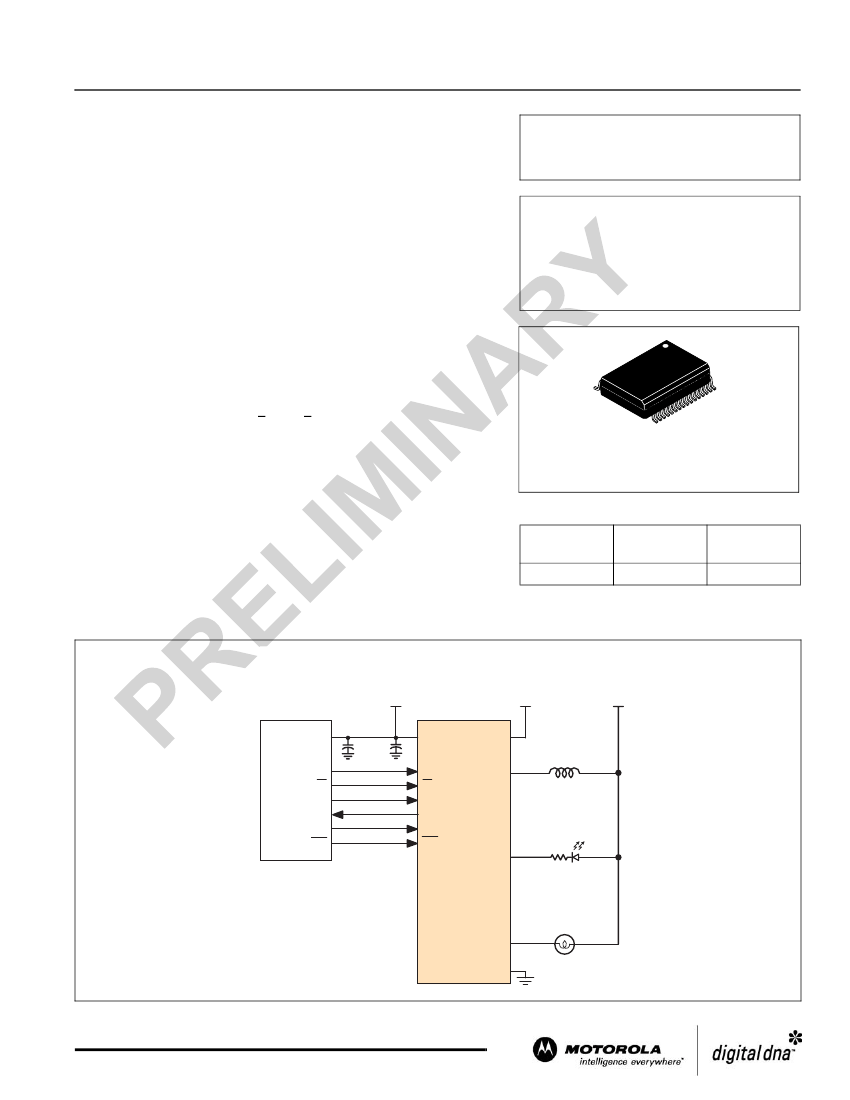

Simplified Application Diagram
33996 Simplified Application Diagram
3.3 V/5.0 V
VPWR
VBAT
33996
VDD
MCU
SCLK
CS
MISO
MOSI
PWM
RST
SCLK
CS
SI
SO
PWM
RST
OUT0
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
OUT8
OUT9
OUT10
OUT11
OUT12
OUT13
OUT14
OUT15
GND
Solenoid/Relay
SOPWR
VPWR
LED
Lamp
