2-535598-3 datasheet, PDF - EEWORLD Datasheet

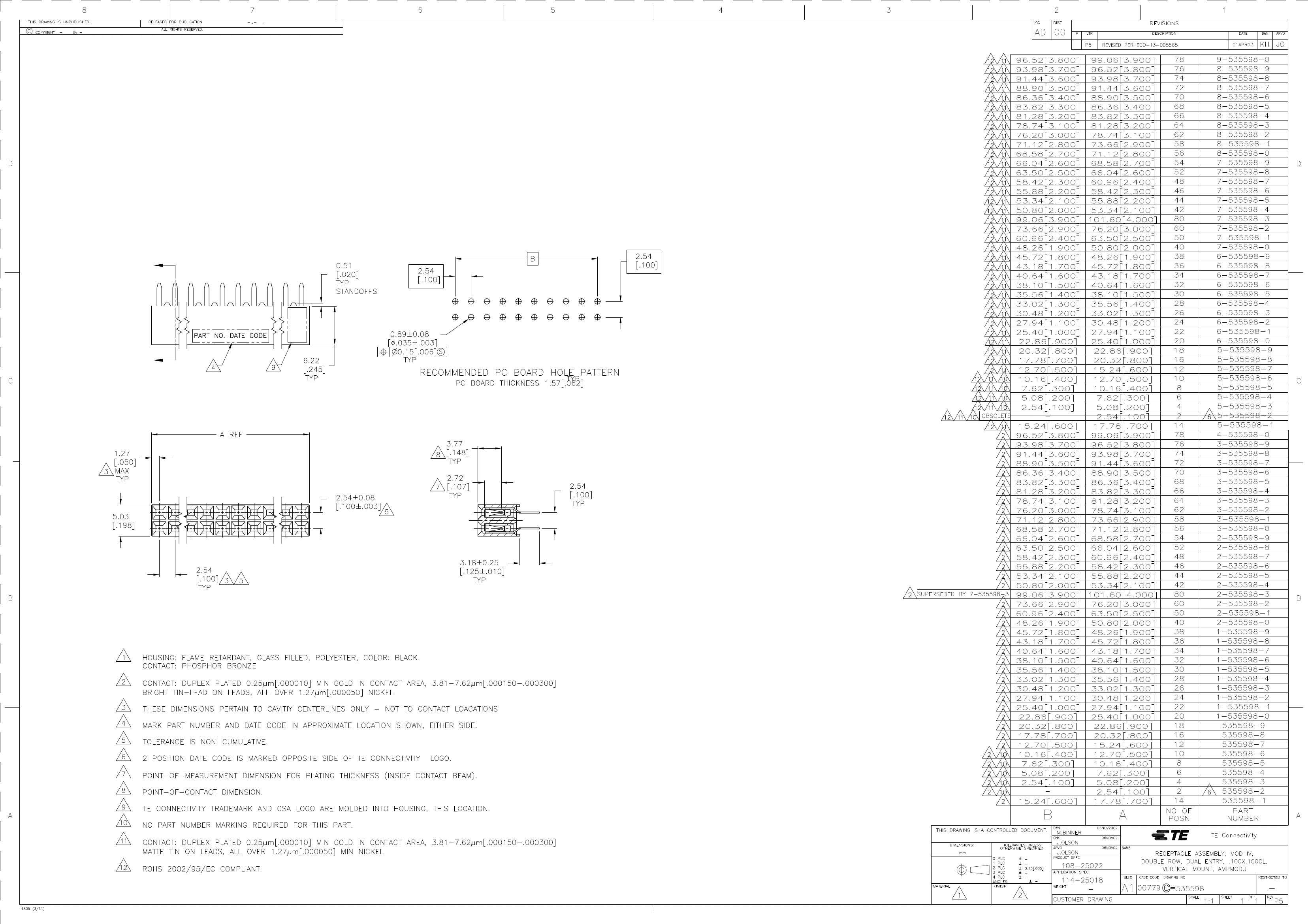

2-535598-3: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size254KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2-535598-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-535598-3	-	-	View	Buy Now

HEADER CONNECTOR,PCB MNT,PLUG,80 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	303019266
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PCB STANDOFF
body width	0.238 inch
subject depth	0.265 inch
body length	4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	100 Cycles
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	535598
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT TOP MOUNT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
Evacuation force-minimum value	.417 N
