35979-0522 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35979-0522

35979-0522: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Red Insulator, Receptacle; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

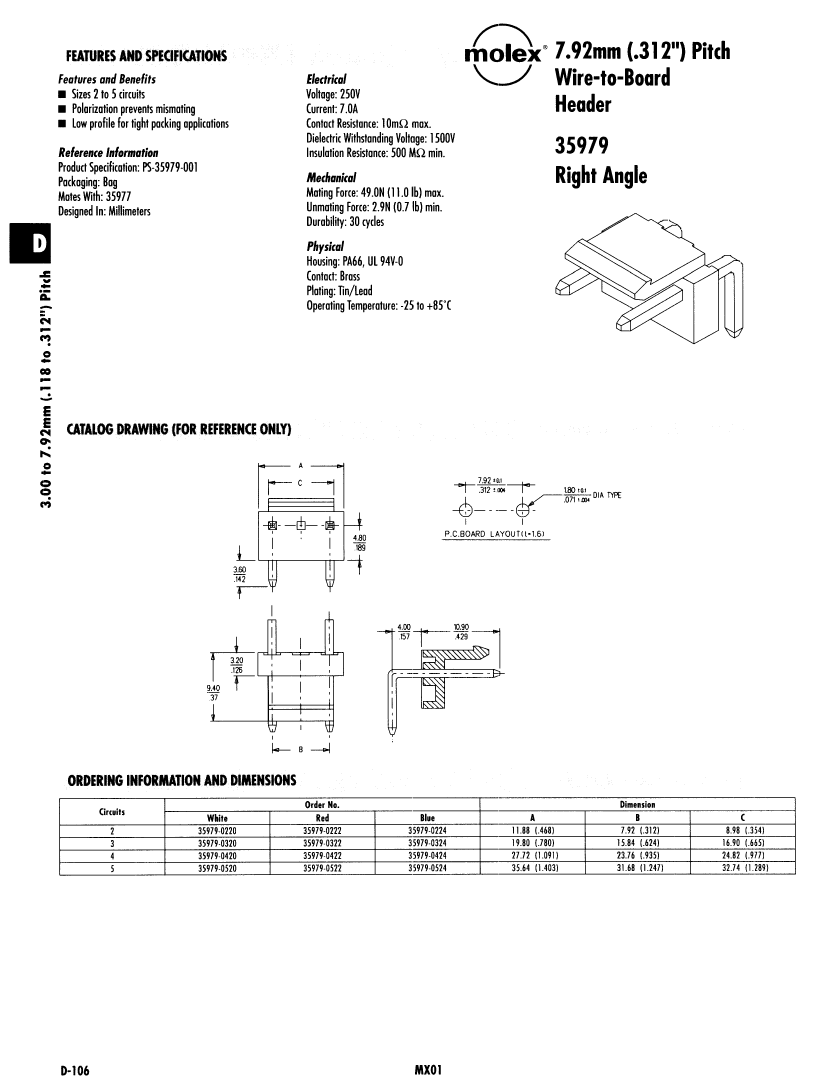

35979-0522 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Red Insulator, Receptacle

35979-0522 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE, POLARIZED
body width	0.337 inch
subject depth	0.528 inch
body length	1.403 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU
Contact completed and terminated	TIN/LEAD OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	9.7856 N
Insulation resistance	500000000 Ω
Insulator color	RED
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	35979
Plug contact pitch	0.312 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
polarization key	HOUSING SIDE
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	7.92 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	.5838 N
Base Number Matches	1

Preview

Download Datasheet

View All

35979-0522 Related Products

	35979-0522	35979-0324	35979-0422	35979-0224	35979-0322	35979-0524	35979-0424	35979-0222
Description	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Red Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Blue Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Red Insulator, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Blue Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Red Insulator, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Blue Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Blue Insulator, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.312 inch Pitch, Solder Terminal, Red Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED	LOW PROFILE, POLARIZED
body width	0.337 inch	0.337 inch	0.337 inch	0.337 inch	0.337 inch	0.337 inch	0.337 inch	0.337 inch
subject depth	0.528 inch	0.528 inch	0.528 inch	0.528 inch	0.528 inch	0.528 inch	0.528 inch	0.528 inch
body length	1.403 inch	0.78 inch	1.091 inch	0.468 inch	0.78 inch	1.403 inch	1.091 inch	0.468 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON CU	SN-PB ON CU	SN-PB ON CU	SN-PB ON CU	SN-PB ON CU	SN-PB ON CU	SN-PB ON CU	SN-PB ON CU
Contact completed and terminated	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER	TIN/LEAD OVER COPPER
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N	9.7856 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	RED	BLUE	RED	BLUE	RED	BLUE	BLUE	RED
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	35979	35979	35979	35979	35979	35979	35979	35979
Plug contact pitch	0.312 inch	0.312 inch	0.312 inch	0.312 inch	0.312 inch	0.312 inch	0.312 inch	0.312 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Rated current (signal)	7 A	7 A	7 A	7 A	7 A	7 A	7 A	7 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch
Terminal pitch	7.92 mm	7.92 mm	7.92 mm	7.92 mm	7.92 mm	7.92 mm	7.92 mm	7.92 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	3	4	2	3	5	4	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.5838 N	.5838 N	.5838 N	.5838 N	.5838 N	.5838 N	.5838 N	.5838 N
Base Number Matches	1	1	1	1	1	1	1	1
