36TXQEJ63

Description
Electric Fuse, 63A, 36000VAC, 36000VDC, 20000A (IR), Inline/holder
CategoryCircuit protection    Circuit protection
File Size714KB,6 Pages
ManufacturerCooper Industries
Download Datasheet Parametric View All

36TXQEJ63 Online Shopping

Suppliers Part Number Price MOQ In stock
36TXQEJ63 - - View Buy Now

36TXQEJ63 Overview

Electric Fuse, 63A, 36000VAC, 36000VDC, 20000A (IR), Inline/holder

36TXQEJ63 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
body height537 mm
Body length or diameter88 mm
Built-in featuresINDICATOR
Circuit protection typeELECTRIC FUSE
Joule integral nominal11000 J
Manufacturer's serial number36TXQEJ
Installation featuresINLINE/HOLDER
physical size88mm x 537mm
Rated breaking capacity20000 A
Rated current63 A
Rated voltage (AC)36000 V
Rated voltage (DC)36000 V
GuidelineDIN 43625; IEC
surface mountNO
Terminal shapeEND CAP
Base Number Matches1
UL/CSA Fuses
General Purpose
UL/CSA Fuses
Current Limiting

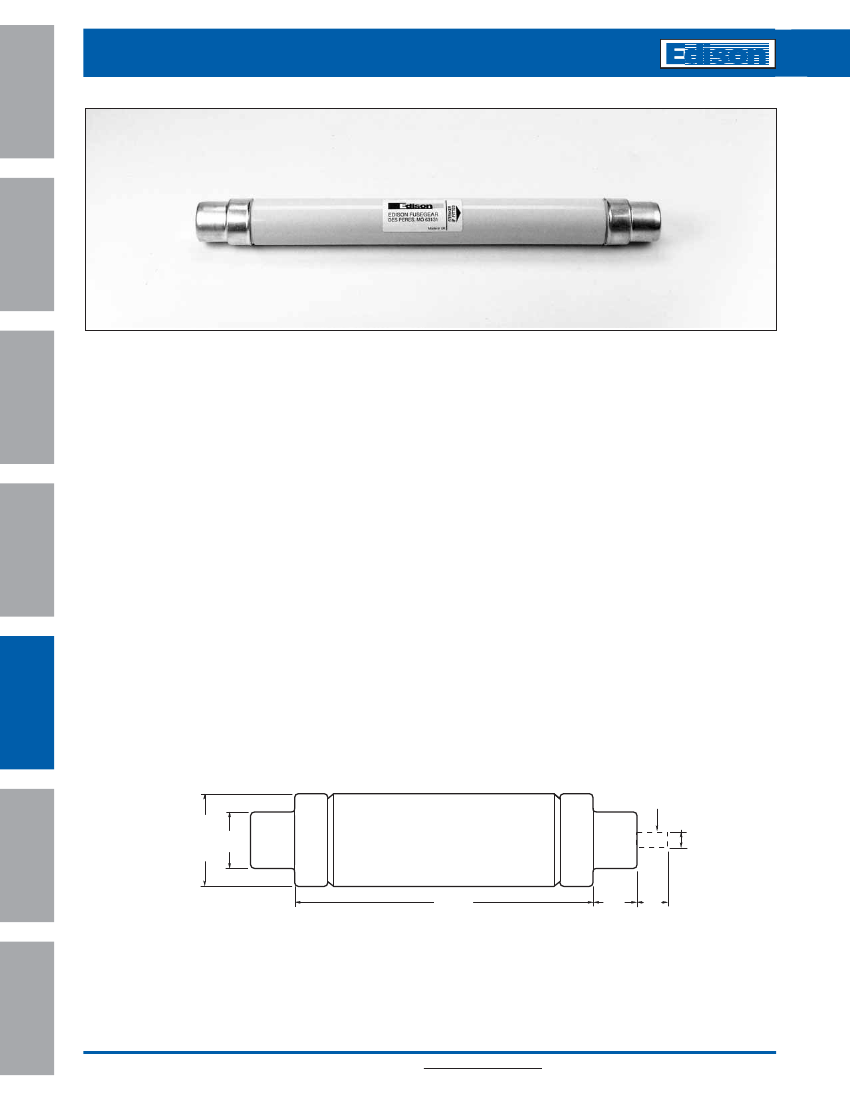

3.6kV – 36kV High Voltage DIN Distribution Fuses
Special
Purpose Fuses
DIN Dimension Fuses To Specification
DIN 43.625
This product group covers current limiting fuses with
dimensions to DIN 43.625 and performance in compliance
with IEC 282-1.
Advantages of Edison High Voltage Current - Limiting
Fuses
The low power dissipation of Edison fuses ensures low
temperature rise of switchgear in which they are
incorporated.
The elements use the ‘M’ (metallurgical) effect, similar to
that used in low voltage fuses. This ensures that, with
melting on long time overloads, excessive temperatures are
not reached and damage to switchgear components, such
as epoxy encapsulating enclosures, is thus prevented.
Fuses that do not employ this feature are not only hotter
running by comparison but also usually need to employ a
higher current rating of fuse for the same service; thus an
Edison 40A fuse is equivalent in terms of thermal
performance to many other types of 63A rating.
Edison fuses exhibit considerable limitation of current and
I
2
t under short-circuit conditions. The stress on circuit
components is thereby minimized and the reduction of
energy release at the fault reduces fire risks.
Switching (arc) voltages are appreciably less than
permitted values and fall with lower values of recovery
voltage. The use of, for example, 12kV fuse on 6/7.2kV
systems is therefore permissible.
Striker Characteristics
The spring operated striker pin has a travel and energy
output in compliance with the requirements of DIN 43625
and IEC 282-1.
Canadian
Fuses & Holders

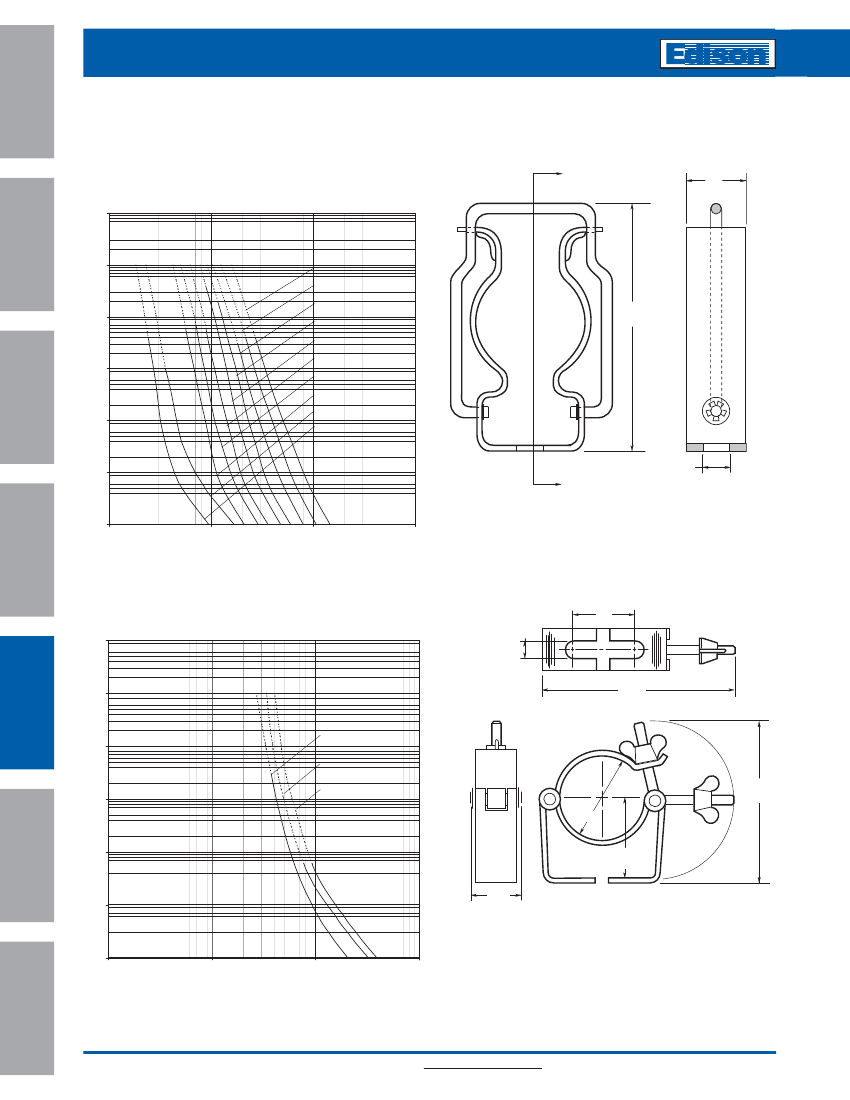

Recommended Fuse Clipss:
Refer to page 122 in this catalog.
Medium
Voltage Fuses
Dimensions - Inches (mm)
Striker In
Operated Position
Fuse Blocks,
Holders & Misc.
Diameter
0.59"
15.0mm
1.77"
45.0mm
Length
For Diameter and Length Dimensions See Table Above
1.02"
1.34"
34.0mm 26.0mm
Application
Section
118
For additional information, visit www.edisonfuse.com
