Large Frame PD Series (PDLA, PDLM)
35 to 150 Amp Precision Thermal Circuit Breaker

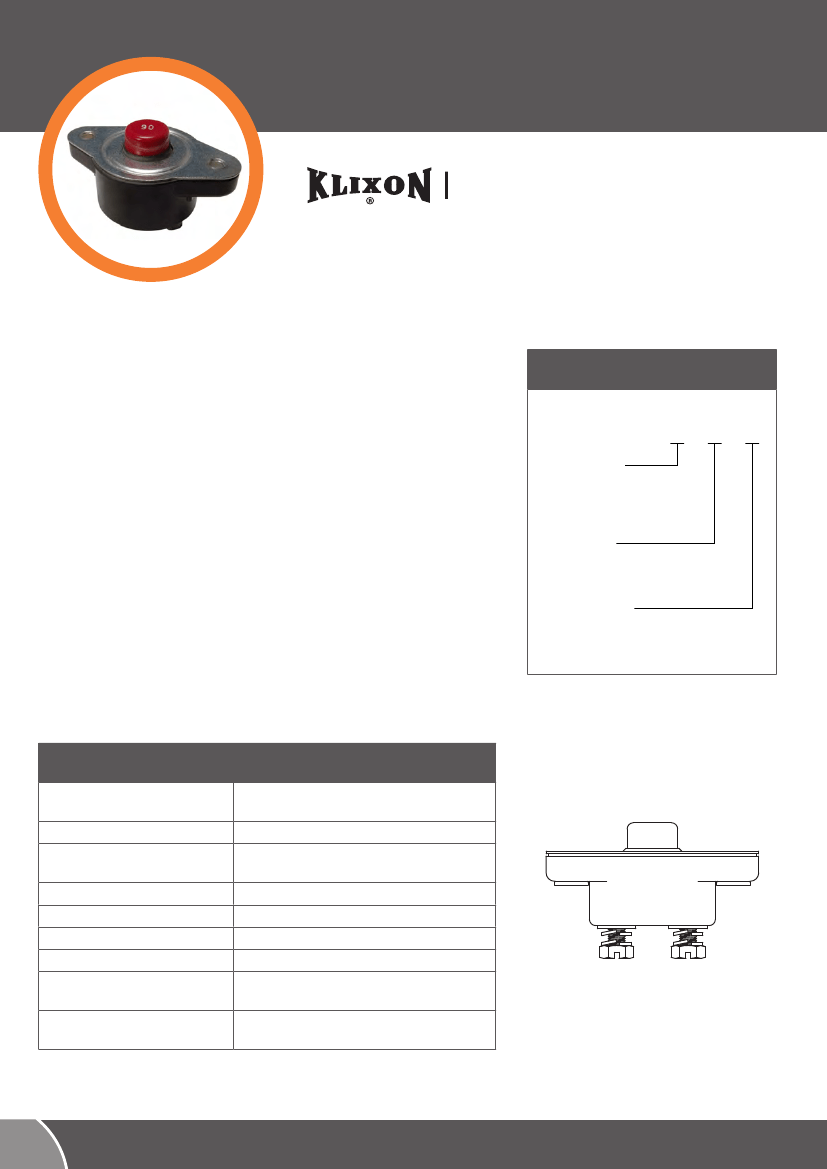

FEATURES
• 30VDC, 35 to 150 Amps
• Sealed assemblies, available in manual and automatic reset options
• Ignition protected & CCC certified
• PDLM meets CID A-A-55571/04 specifications
• PDLA meets CID A-A-55571/07 specifications
ORDERING INFORMATION
X−X−X
Configuration
PDLA = Auto, sealed
PDLM = Manual, sealed
Amp Rating
(35, 40, 45, 50, 60, 70, 80, 90,
105, 120, 135, 150)
Mounting Nuts
= leave blank for none
I
= include optional mounting nuts
DESCRIPTION
The KLIXON® PDL series thermal breakers are designed to meet the
harshest environmental requirements. The PDL series breakers are
weatherproof for protection against moisture, dust, grease, fuel vapors,
and other harsh environments. The PDL series of breakers are designed
to interrupt short circuits or overloads and combine trip-free protection
with fast response time. The PDL series of breakers can be used in
commercial and military vehicles and equipment where more precise
ultimate trip characteristics are required.
PERFORMANCE CHARACTERISTICS
Calibration : 200% rated current,
77°F (25°C)
Ultimate Trip At 77°F (25°C)
Endurance
Interrupt Current Capacity
Vibration
Mechanical Shock
Dielectric Strength
Insulation Resistance
Weight (with mounting nuts)
8 to 100 seconds
Must hold 100%, Must trip 138%
Automatic: 2,000 cycles @ 200% rated current
Manual: 500 cycles @ 200% rated current
Per SAE J1625 and ABYC E-11
10G MIL-STD-202 Method 204, Condition A
100G MIL-STD-202 Method 213, Condition C
MIL-STD-202 Method 301, 1500VAC min
MIL-STD-202 Method 302, Condition B,
100 MΩ min
PDLM : 129 grams max
PDLA : 116 grams max
21
PDL Series (PDLA/PDLM)

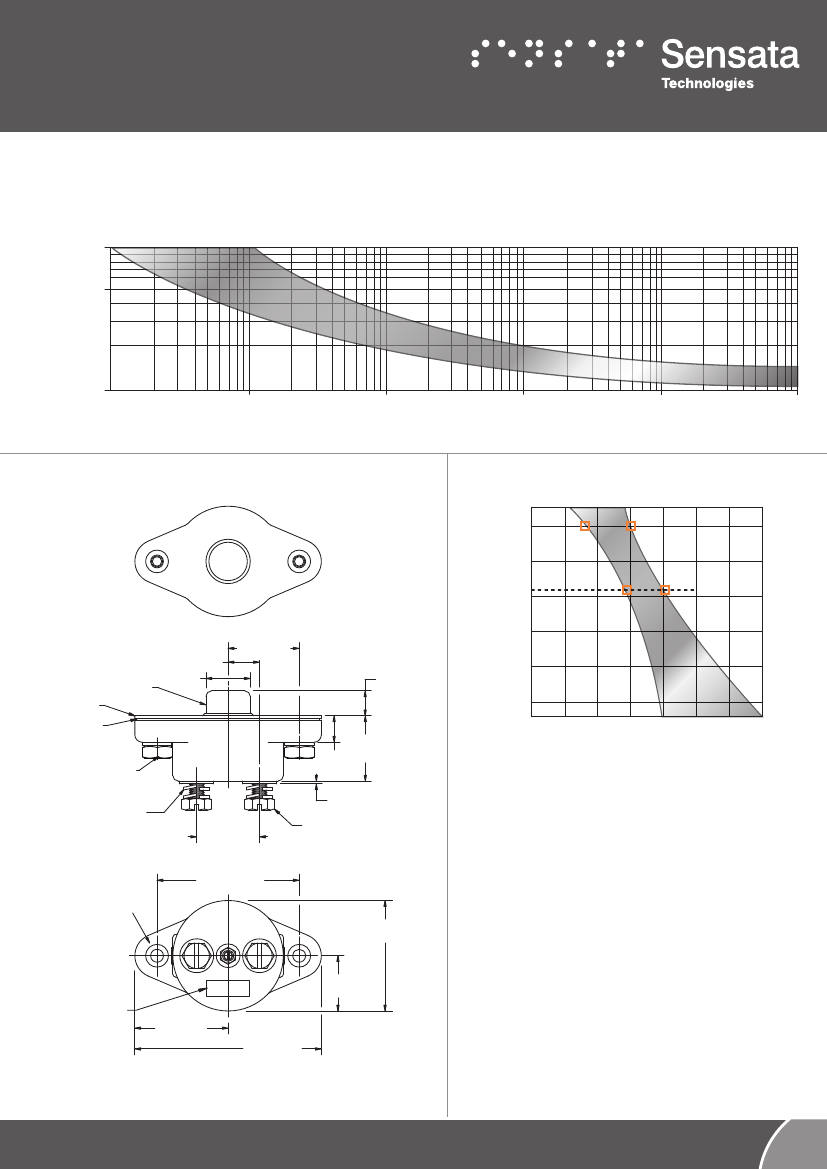

TRIP CURVE -
Approximate Time, Current Characteristics At 77°F (25°C)
Current in % Rated Load
1000
500
100
.10
1
10
100
1000
10,000
Trip Time in Seconds
DIMENSIONS - PDLM
INCHES [MM]
DERATING CURVE
160˚F
71˚C
Ambient Temperature in °F °C
,
140˚F
100˚F
70˚F
32˚F
0˚F
-40˚F
-60˚F
60
80
3
4
60˚C
38˚C
1
2
77°F 25°C
21˚C
,
0˚C
-18˚C
-40˚C
-51˚C
200
PUSHBUTTON (RED)
.875 [22.23] .781 [19.84]
MIN PANEL HOLE
MAX
COVER
GASKET
.536 [13.61]
.526 [13.36]
1.213 [30.81]
1.193 [30.30]
.422
[10.72]
MOUNTING NUTS
FURNISHED WHEN
SPECIFIED
4X LOCKWASHER
1.072 [27.23]
1.052 [26.72]
1.140 [28.96]
.469 [11.91] 1.078 [27.38]
.437 [11.10]
.063 [1.60]
.031 [.78]
2x 1/4-28 x 1/2” LG.
HEX HEAD CAP SCREWS
100
120
140
160
180
Ultimate Trip in % Rated Load
2.416 [61.37]
2.396 [60.86]
2X EYELET FOR #10
SCREW
Performance characteristics are based on room
temperature (77°F, 25°C). Consult Derating curve for ambient
temperatures significantly higher or lower than standard
room temperature.
Example: At 77°F (25°C) the device is calibrated to hold
at 110% of rated current (1) and trip at 138% of rated
current (2). At 140°F (60°C), the same device will hold
at approximately 92% of rated current (3), and trip at
approximately 120% of rated current (4).
1.891 [48.03]
1.859 [47.22]
.954 [24.23]
.922 [23.42]
PART NO.
AND DATE CODE
LOCATION
1.594 [40.49]
1.562 [39.68]
3.187 [80.95]
3.125 [79.38]
(SEE NOTE 1)
DIMENSIONS
DO NOT INCLUDE
SEALING GASKET
