BX5124PM: Description20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size115KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX5124PM Overview

20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

BX5124PM Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	19.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.6
Base Number Matches	1

Preview

Download Datasheet

View All

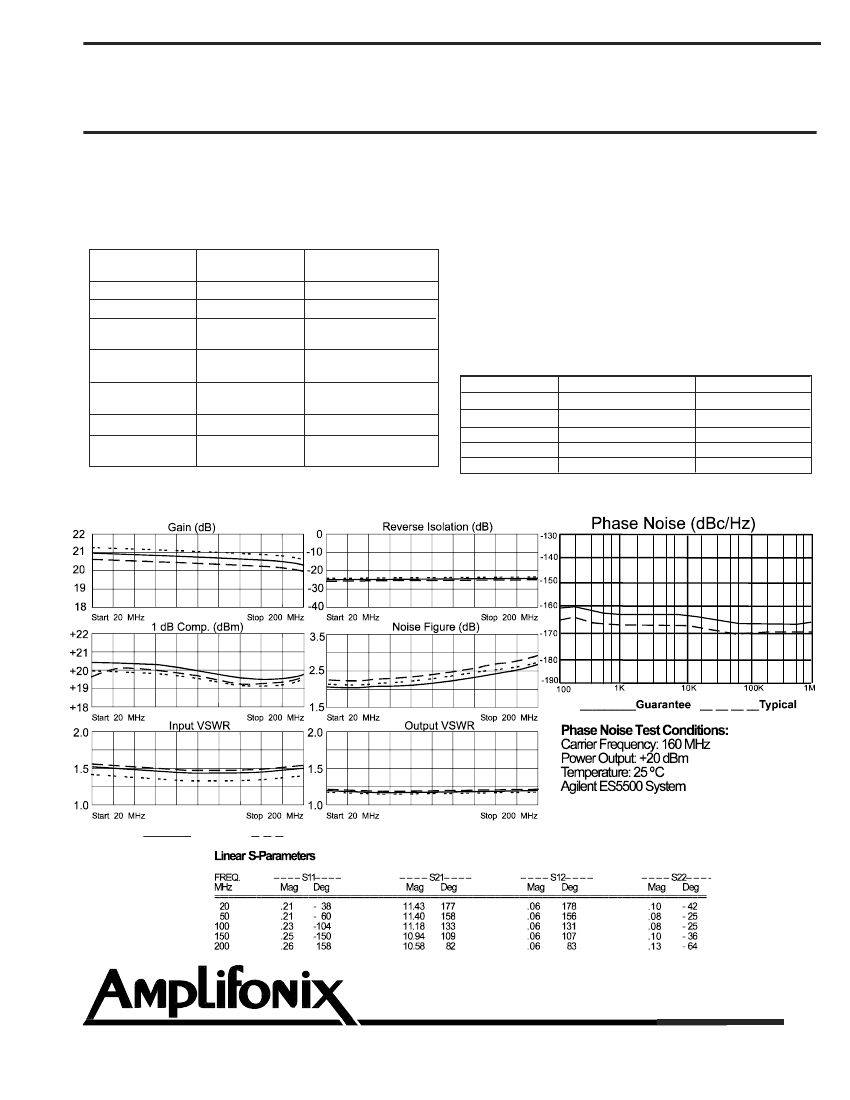

RF AMPLIFIER

MODEL

TM5124PM

Features

!

Superior Phase Noise Performance

High Gain: 20.5 dB Typical

High Output Power: +20 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

TYPICAL

Ta= 25 ºC

20 - 200 MHz

20.5

+20

-24

1.5:1

1.2:1

2.5

+15

53

MIN/MAX

Ta = -55 ºC to +85 ºC

20 - 200 MHz

19.5 Min.

+18 Min.

-23.5 Max.

1.6:1 Max.

3.5 Max.

+15

58 Max.

Available as:

TM5124PM, 4 Pin TO-8 (T4)

TN5124PM, 4 Pin Surface Mount (SM3)

FP5124PM, 4 Pin Flatpack (FP4)

BX5124PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +49 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +44 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +34 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

In

Out

Noise figure (dB)

Power

Vdc

mA

VSWR

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-165

-166

-170

-169

Guarantee (Min.)

-161

-162

-166

-165

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

3/31/04

BX5124PM Related Products

	BX5124PM	FP5124PM	TN5124PM	TM5124PM
Description	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	19.5 dB	19.5 dB	19.5 dB	19.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	1.6	1.6	1.6	1.6
