4779831510470 datasheet, PDF - EEWORLD Datasheet

4779831510470: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerStelvio Kontek SpA

Download Datasheet Parametric View All

4779831510470 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug,

Parameter Name	Attribute value
Maker	Stelvio Kontek SpA
Reach Compliance Code	unknown
body width	0.071 inch
subject depth	0.134 inch
body length	0.516 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	477
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10
Base Number Matches	1

general tolerance

.X 0.20mm

.XX 0.15mm

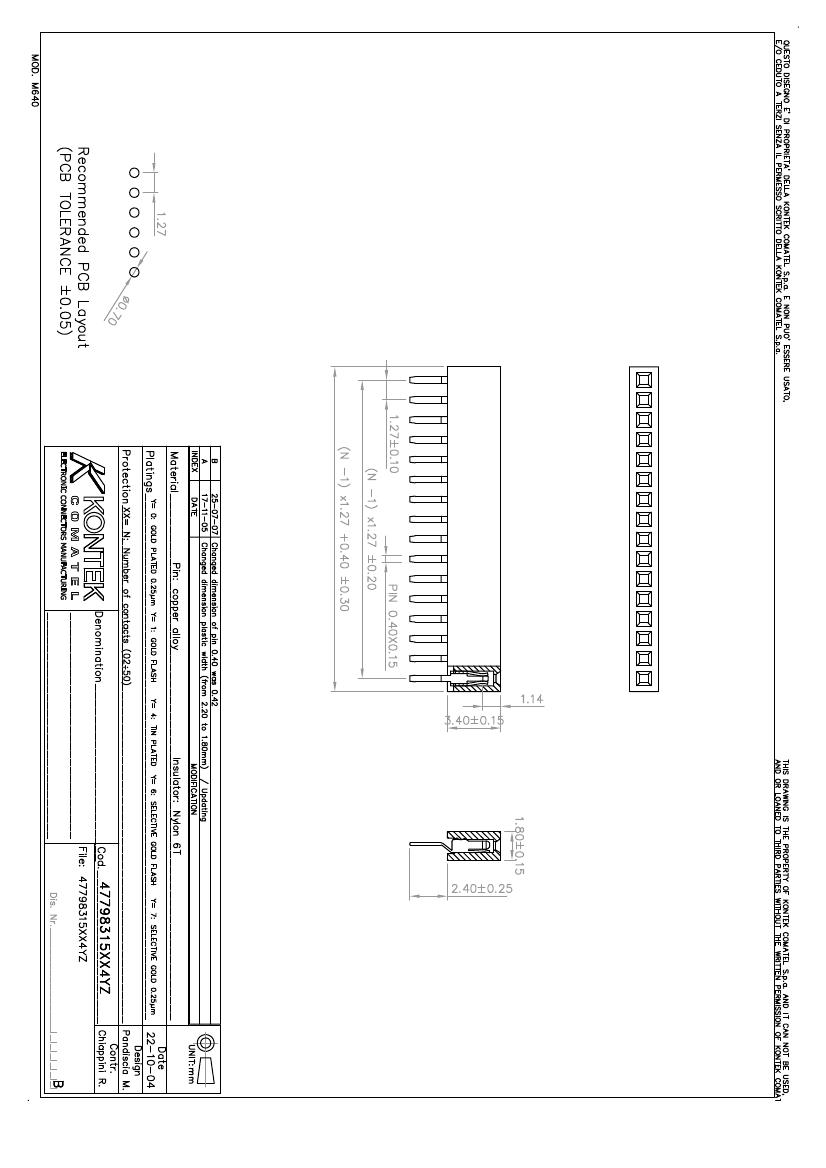

FEMALE HEADER 1.27mm

PLASTIC HEIGHT 3.4mm STRAIGHT
