5962F9854101VXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9854101VXC

5962F9854101VXC: DescriptionAC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20; Categorylogic logic; File Size46KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9854101VXC Overview

AC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20

5962F9854101VXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL20,.3
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.1.A
Control type	ENABLE LOW
series	AC
JESD-30 code	R-CDFP-F20
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	10 ns
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum seat height	2.92 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	6.92 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACS244MS

March 1998

Radiation Hardened Non-Inverting,

Octal, Three-State Buffer/Line Driver

Description

The Radiation Hardened ACS244MS is a Non-Inverting,

Octal, Three-State Buffer/Line Driver with two active-LOW

Enable inputs (AE and BE). Each Enable input controls four

outputs. When an Enable input is LOW, the corresponding

outputs are active. A HIGH on an Enable input causes the

corresponding outputs to be high impedance, regardless of

the input levels.

The ACS244MS is fabricated on a CMOS Silicon on Sap-

phire (SOS) process, which provides an immunity to Single

Event Latch-up and the capability of highly reliable perfor-

mance in any radiation environment. These devices offer

signiﬁcant power reduction and faster performance when

compared to ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS244 are

contained in SMD 5962-98541. A “hot-link” is provided

on our homepage with instructions for downloading.

http://www.intersil.com/data/sm/index.htm

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-up Free Under any Conditions

- Total Dose . . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels . V

= (0.3V)(V

), V

= (0.7V)(V

)

• Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . .

±16mA

• Quiescent Supply Current. . . . . . . . . . . . . . . . . . . .20µA

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . . . . . 9.0ns

Applications

• Databus Driving

• Data Routing

• Redundant Data Control Circuitry

Ordering Information

SMD PART NUMBER

5962F9854101VRC

N/A

5962F9854101VXC

N/A

INTERSIL PART NUMBER

ACS244DMSR-02

ACS244D/Sample-02

ACS244KMSR-02

ACS244K/Sample-02

ACS244HMSR-02

TEMP. RANGE (

-55 to 125

PACKAGE

20 Ld SBDIP

20 Ld Flatpack

Die

CASE OUTLINE

CDIP2-T20

CDFP4-F20

N/A

Pinouts

ACS244 (SBDIP)

TOP VIEW

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

20 V

19 BE

18 AO1

17 BI4

16 AO2

15 BI3

14 AO3

13 BI2

12 AO4

11 BI1

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

GND

ACS244 (FLATPACK)

TOP VIEW

AO1

BI4

AO2

BI3

AO3

BI2

AO4

BI1

GND 10

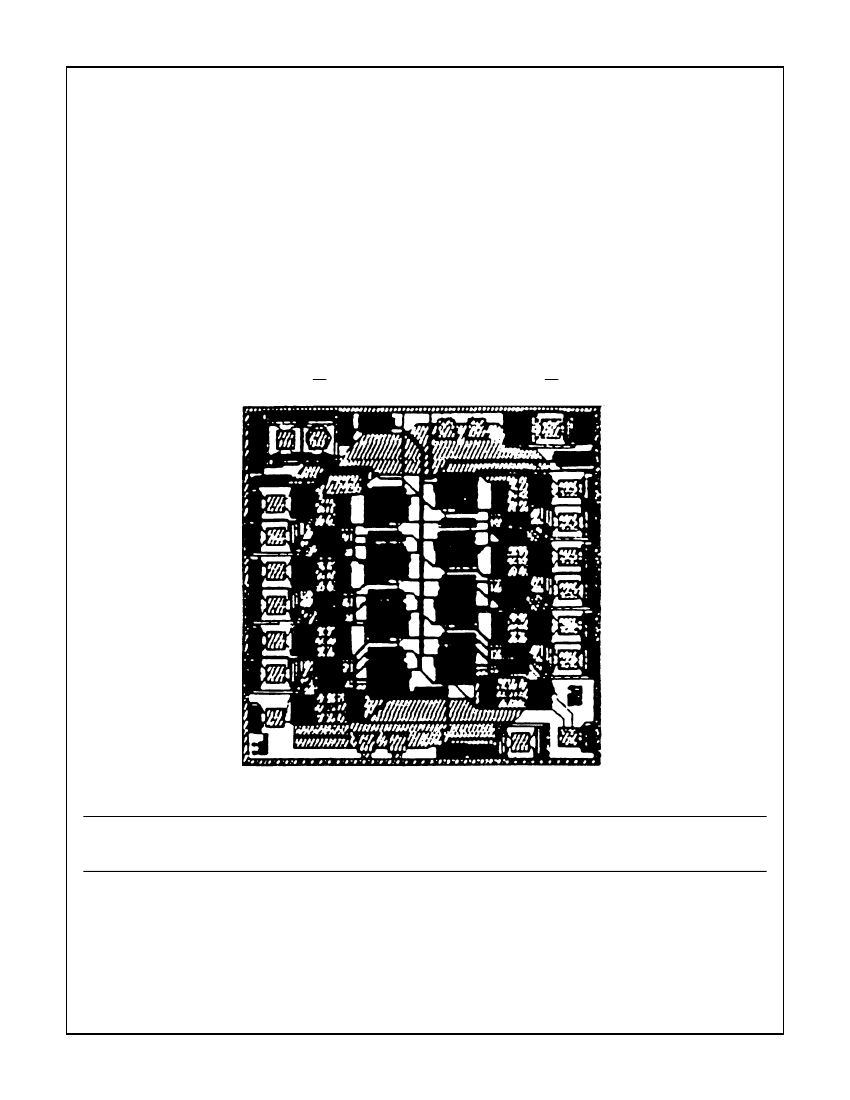

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

File Number

4479

5962F9854101VXC Related Products

	5962F9854101VXC	5962F9854101VRC	ACS244KMSR-02	ACS244HMSR-02	ACS244DMSR-02
Description	AC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20	AC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP20	AC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20	AC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, UUC22	AC SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP20
Parts packaging code	DFP	DIP	DFP	DIE	DIP
package instruction	DFP, FL20,.3	DIP-20	DFP, FL20,.3	DIE,	DIP, DIP20,.3
Contacts	20	20	20	22	20
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant
series	AC	AC	AC	AC	AC
JESD-30 code	R-CDFP-F20	R-CDIP-T20	R-CDFP-F20	S-XUUC-N22	R-CDIP-T20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4
Number of functions	2	2	2	2	2
Number of ports	2	2	2	2	2
Number of terminals	20	20	20	22	20
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DFP	DIE	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	UNCASED CHIP	IN-LINE
propagation delay (tpd)	9 ns	9 ns	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	UPPER	DUAL
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	-	ENABLE LOW
JESD-609 code	e4	e4	e3	-	-
Load capacitance (CL)	50 pF	50 pF	50 pF	-	50 pF
MaximumI(ol)	0.012 A	0.012 A	0.012 A	-	0.012 A
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C
Encapsulate equivalent code	FL20,.3	DIP20,.3	FL20,.3	-	DIP20,.3
power supply	5 V	5 V	5 V	-	5 V
Prop。Delay @ Nom-Sup	10 ns	10 ns	10 ns	-	10 ns
Filter level	38535V;38534K;883S	38535V;38534K;883S	38535V;38534K;883S	-	38535V;38534K;883S
Maximum seat height	2.92 mm	5.08 mm	2.92 mm	-	5.08 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal surface	GOLD	GOLD	Matte Tin (Sn)	-	-
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	-	2.54 mm
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	-	300k Rad(Si) V
width	6.92 mm	7.62 mm	6.92 mm	-	7.62 mm
Maker	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Is it Rohs certified?	-	-	conform to	incompatible	incompatible
Peak Reflow Temperature (Celsius)	-	-	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	-	-	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
