530-03-1-20: DescriptionTransistor Output Optocoupler; CategoryLED optoelectronic/LED photoelectric; File Size300KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric Compare View All

530-03-1-20 Overview

Transistor Output Optocoupler

530-03-1-20 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1

Preview

Download Datasheet

View All

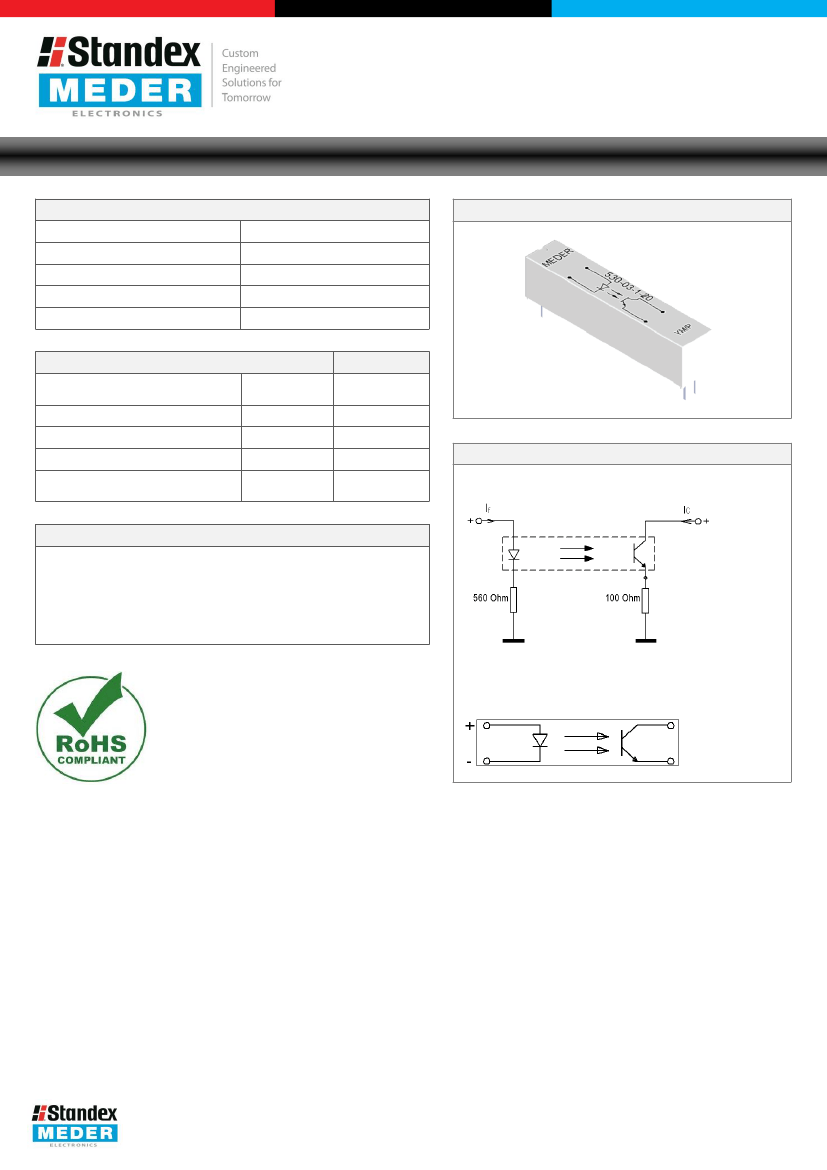

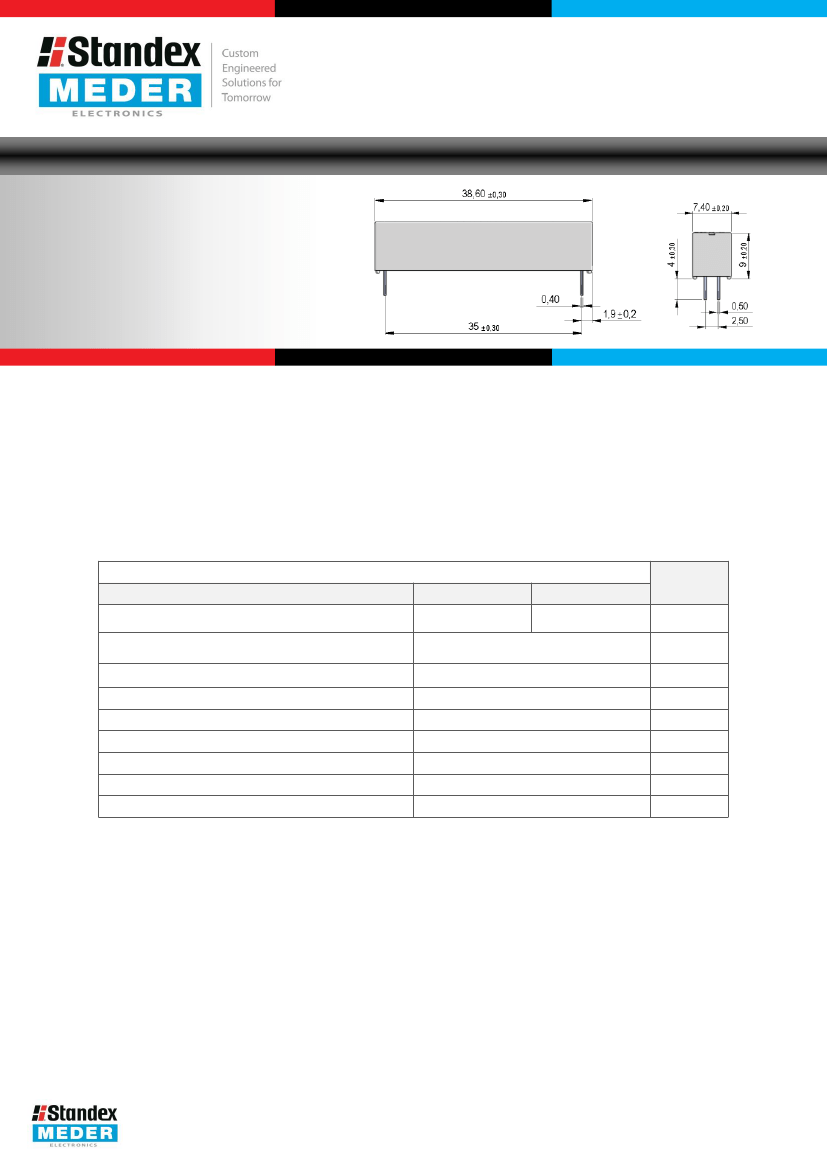

A Global Leader in the Design, Development, and

Manufacture of Sensor and Magnetic Components

Series Datasheet – 530 Optocouplers

www.standexmeder.com

530-03 Series

Optocouplers



Features:

Optocoupler for Safe Circuits with a High-Level Galvanic Separation



Applications: Electronics for Mining, Test & Measurement, Automation Technology



Markets: Oil & Gas Production, Refinery, Mining, Medical, Test and Measurement, and others

Part Description:

Customer Options

Coupler Characteristics

530-03-1-XX

10

10,000

0.5

50

32

15

34.0

5

10

12

kHz

VDC

mA

mm

Ohm

20

20,000

Unit

VDC

Isolation Voltage Input / Output (min.)

Current Transfer Ratio (min.)

Ic/If CTR (If = 10mA)

Transmission Frequencies (typ.)

Collector-Emitter Voltage (max.)

Collector Current Ic (max.)

Creeping Distance (min.)

Air Path Input / Output (min.)

Insulation Distance Emitter-Detector (min.)

Insulation Resistance Input / Output (min.)

USA:

Europe:

Asia:

+1.866.782.6339

+49.7731.8399.0

+86.21.37820625

│

salesusa@standexmeder.com

│ info@standexmeder.com

│ salesasia@standexmeder.com

Version 02

29.09.2015

D. Stastny

Modifications in the sense of technical progress are reserved.

530-03-1-20 Related Products

	530-03-1-20	530-03-1-10
Description	Transistor Output Optocoupler	Transistor Output Optocoupler,
Reach Compliance Code	unknown	unknown
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Base Number Matches	1	1
