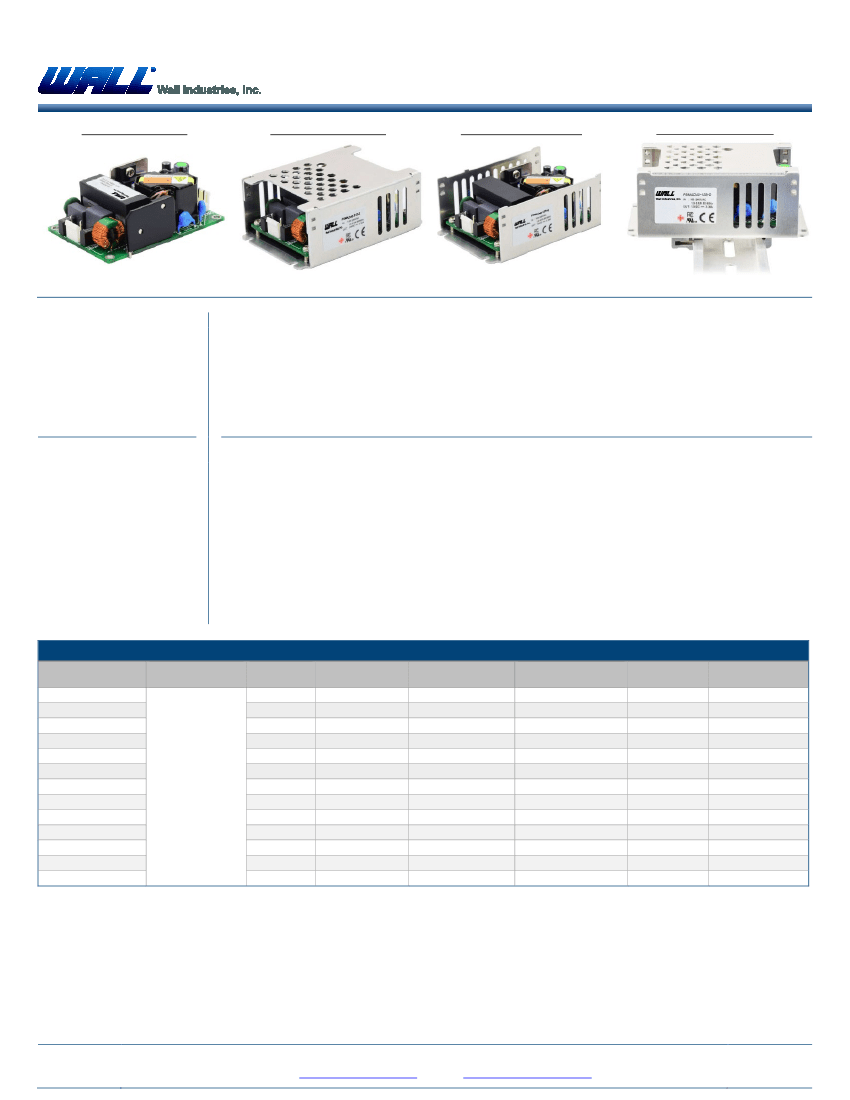

PSMAD40 SERIES
40 Watts
AC/DC Power Supplies
Single Output
U Type- U Chassis Type
DN Type- Din Rail Type
O Type- Open Frame
C Type- Enclosed Type
Size: 3in x 2in x 1.04in
Size: 3.53in x 2.38in x 1.31in
Size:3.53in x 2.38in x 1.36in
Size: 2.27in x 2.37in x 1.31in
OPTIONS
•
Package Type
•
Connector Option
•
Class I or Class II
FEATURES
•
Wide Input Voltage Range of 85 to 264VAC,
47 to 63Hz
•
Built-In Class B EMI Filter
•
Adjustable Output Voltage
•
4000VAC Reinforced Insulation
•
2xMOPP
•
Protection Type Class I and Class II
•
Low Leakage Current Under 75µA
•
Operating Altitude of 5000M
•
IEC/EN/ANSI/AAMI ES60601-1 UL:E360199 and IEC/EN/UL
60950-1 CB:UL (Demko) Safety Approvals
•
Over Voltage, Over Load, and Short Circuit Protection
•
CE Marked
•
RoHS and REACH Compliant
•
•
•
•
•
•
APPLICATIONS
Medical Equipment
Automation
Telecom/Datacom
Industry Control System
Measurement Equipment
IPC
DESCRIPTION
The PSMAD40 series of AC/DC medical power supplies provides 40 watts of output power in a compact 2 x 3
inch footprint. These supplies feature a universal 85-264VAC (120~370 VDC) input, enabling them to be used
anywhere in the world. 5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V, and 53V single output voltages are
available for this series, all of which have a maximum 10% adjustment range. These supplies also feature a low
leakage current of less than 75μA at 264VAC and are designed to withstand 4000VAC, input to output. The
PSMAD40 series has an operating temperature range of -40°C to +85°C, and a high efficiency up to 93%. These
supplies are also protected against short circuit, over voltage, and over load conditions. The PSMAD40 series
has IEC/EN/ANSI/AAMI ES60601-1 UL:E360199 and IEC/EN/UL 60950-1 CB:UL (Demko) safety approvals, is
CE marked, and meets the conducted and radiated EMI requirements of EN55011, EN55032, EN60601-1-2 and
FCC Part 18/15. Open frame, U-chassis, enclosed case, and DIN rail mechanical options are available. Class I
and Class II protection types and 3 connector types are also available.
MODEL SELECTION TABLE
Model Number
(1)
PSMAD40-05S-x
PSMAD40-075S-x
PSMAD40-09S-x
PSMAD40-12S-x
(2)
PSMAD40-12S1-x
PSMAD40-15S-x
(2)
PSMAD40-15S1-x
PSMAD40-18S-x
PSMAD40-24S-x
PSMAD40-28S-x
PSMAD40-36S-x
PSMAD40-48S-x
PSMAD40-53S-x
Input Voltage
Range
Output
Voltage
5VDC
7.5VDC
9VDC
12VDC
12VDC
15VDC
15VDC
18VDC
24VDC
28VDC
36VDC
48VDC
53VDC
Output Current
8A
5.34A
4.45A
3.34A
3.34A
2.67A
2.67A
2.23A
1.67A
1.43A
1.12A
0.84A
0.77A
Ripple & Noise
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
75mVp-p
150mVp-p
150mVp-p
No Load
Input Power
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
0.11W
Output Power
40W
40W
40W
40W
40W
40W
40W
40W
40W
40W
40W
40W
40W
Efficiency
90%
90%
91%
92%
90%
92%
90%
91%
92%
91%
92%
93%
92.5%
85~264VAC
(120~370VDC)
7/22/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 1 of 6
Rev D
PSMAD40 SERIES
40 Watts
AC/DC Power Supplies
Single Output
SPECIFICATIONS
All specifications are based on 25°C, 230VAC Input, and Full Load unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Operating Input Voltage Range
Input Frequency
Input Current
No Load Input Power
Leakage Current
Input Inrush Current
Input Protection
OUTPUT SPECIFICATIONS
Output Voltage
Initial Set Voltage Accuracy
Line Regulation
Load Regulation
Voltage Adjustability
Output Power
Output Current
Minimum Load
Ripple & Noise (20MHz bandwidth)
Transient Response
Start Up Time
Rise Time
Hold Up Time
Temperature Coefficient
PROTECTION
Short Circuit Protection
Over Load Protection
Over Voltage Protection
ENVIRONMENTAL SPECIFICATIONS
Operating Ambient Temperature
Storage Temperature
Operating Altitude
Relative Humidity
Shock
Vibration
MTBF
GENERAL SPECIFCATIONS
Efficiency
Switching Frequency
Isolation Voltage
Isolation Resistance
TEST CONDITIONS
AC Input
DC Input
AC Input
100VAC and Full Load
240VAC and Full Load
230VAC
264VAC
230VAC
Internal Fuse In Line and Neutral
230VAC and Full Load
Low Line to High Line at Full Load
5V Models
No Load to Full Load
All Others
5V Models
10% Load to 90% Load
All Others
53V Models
Single Output
All Others
Min
85
120
47
Typ
Max
264
370
63
1.0
0.5
Unit
VAC
VDC
Hz
A
W
µA
A
0.11
75
60
T3.15A/250VAC
-1.0
-0.2
-0.7
-0.5
-0.6
-0.4
-20
-10
See Table
+1.0
+0.2
+0.7
+0.5
+0.6
+0.4
+10
+10
See Table
See Table
%
%
%
%
10µF/25V 1206 X7R MLCC
1µF/50V 1206 X7R MLCC
0.1µF/100V 1206 X7R MLCC
Load step from 50~75%
change at 2.5A/µs
115VAC and Full Load
5V, 7.5V, 9V, 12V, 15V, 18V Models
24V, 28V, 36V Models
48V, 53V Models
Peak Deviation
Recovery Time
0
75
75
150
600
20
25
%
mVp-p
3
1000
+0.02
-0.02
%Vout
µs
ms
ms
ms
%/ºC
% of Iout; Hiccup Mode
% of Vout(nom); Latch Mode
Natural Convection with Derating
Non-Condensing
MIL-HDBK-217F, Full Load
5V Models
All Others
Input to Output
Input (Output) to F.G
Continuous, Automatic Recovery
145
%
125
140
%
-40
-40
5
+85
+85
5000
95
IEC60068-2-27
IEC60068-2-6
3,010,000 hrs
See Table
70
120
ºC
ºC
M
%RH
230VAC
1 minute (2MOPP insulation)
500VDC
kHz
VAC
GΩ
4000
2500
0.1
7/22/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 2 of 6
Rev D
PSMAD40 SERIES
40 Watts
AC/DC Power Supplies
Single Output
SPECIFICATIONS
SPECIFICATION
All specifications are based on 25°C, 230VAC Input, and Full Load unless otherwise noted.
We reserve the right to change specifications based on technological advances.
PHYSICAL SPECIFICATIONS
Weight
TEST CONDITIONS
O Type: Open Frame Models
C Type: Enclosed Models
U Type: U Chassis Models
DN Type: Din Rail Models
O Type: Open Frame Models
Min
Typ
Max
Unit
Dimensions (L x W x H)
C Type and U Type: Enclosed and U Chassis Models
DN Type: Din Rail Models
SAFETY & EMC CHARACTERISTICS
Safety Approvals
(3)
EMI
Harmonic Currents
Voltage Flicker
EMS
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Power Frequency Magnetic Field
Dip and Interruptions
4.02oz (114g)
5.96oz (169g)
5.43oz (154g)
6.70oz (190g)
3in x 2in x 1.04in
(76.2mm x 50.8mm x 26.5mm)
3.53in x 2.38in x 1.31in
(89.7mm x 60.5mm x 33.3mm)
3.67in x 2.37in x 1.31in
(93mm x 60.4mm x 33.3mm)
UL: E360199
CB:UL(Demko)
Class B
Class B
Class A
IEC/EN/ANSI/AAMI ES 60601-1
IEC/EN/UL 60950-1
EN55011, EN55032, EN60601-1-12 and FCC Part 18/15
(4)
EN61000-3-2
Full Load
EN61000-3-3
EN55024, EN60601-1-2 and complies with EN 61850-3
Air ±15kV
EN61000-4-2
Contact ±8kV
EN61000-4-3
20 V/m
EN61000-4-4
±2kV
EN61000-4-5
DM ±1kV
EN61000-4-6
20 Vr.m.s
EN61000-4-8
30 A/m
EN61000-4-11
Conducted
Radiated
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
The “x” in the model number indicates the optional package type. “x” can either be “O” for Open Frame Type, “C” for Enclosed Type, “U” for U-
Chassis Type, or “DN” for Din Rail Type.
(2) Please note that PSMAD40-12S-x and PSMAD40-15S-x have higher efficiency than PSMAD40-12S1-x and PSMAD40-12S1-x. This allows for
higher ambient temperature operation.
(3) This product is listed to applicable standards and requirements by UL.
(4) External components may be required for class I application.
Due to advances in technology, specifications are subject to change without notice.
(1)
NOTES
7/22/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 3 of 6
Rev D
PSMAD40 SERIES
40 Watts
AC/DC Power Supplies
Single Output

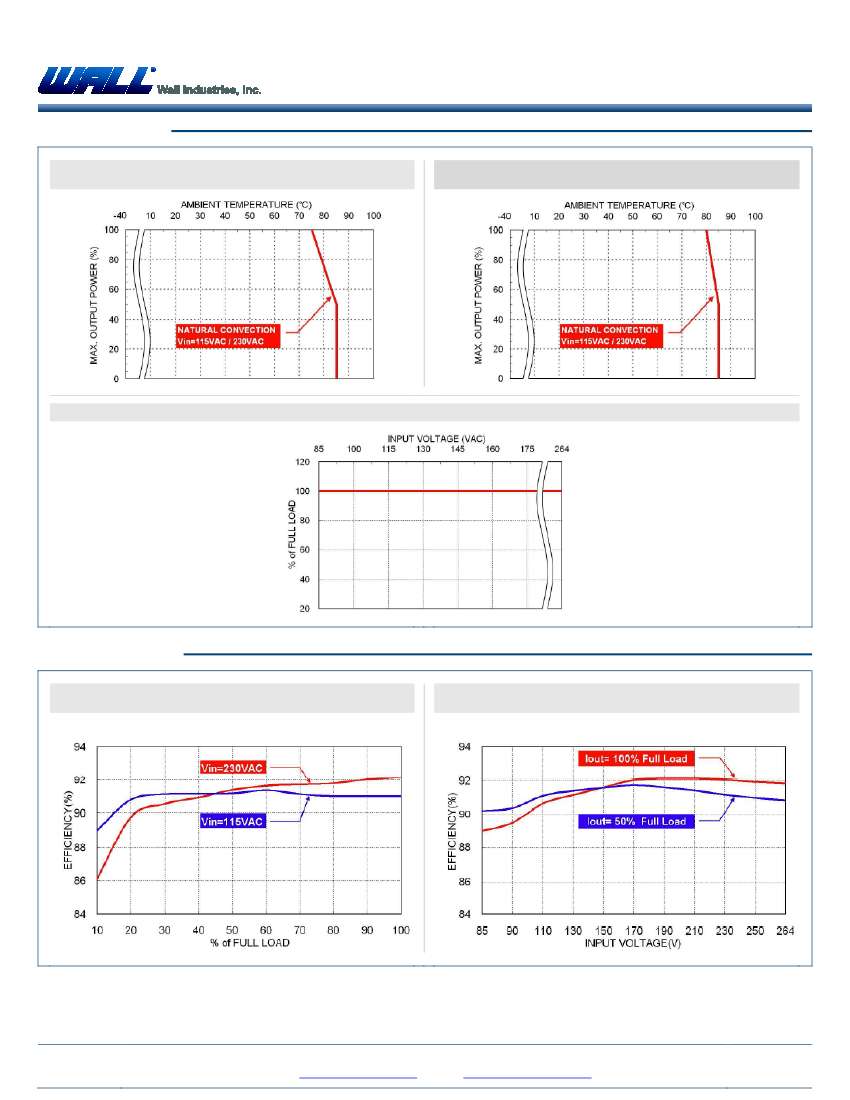

DERATING CURVES
Derating Curve vs. Ambient Temperature
5V, 7.5V, 9V 12S1V 15S1V, 28V Models
Derating Curve vs. Ambient Temperature
12V, 15V, 24V, 36V, 48V, 53V Models
Derating Curve vs. Input Voltage
EFFICIENCY GRAPHS
Efficiency vs. Output Load
PSMAD40-24S-U
Efficiency vs. Input Voltage
PSMAD40-24S-U
7/22/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 4 of 6
Rev D
PSMAD40 SERIES
40 Watts
AC/DC Power Supplies
Single Output

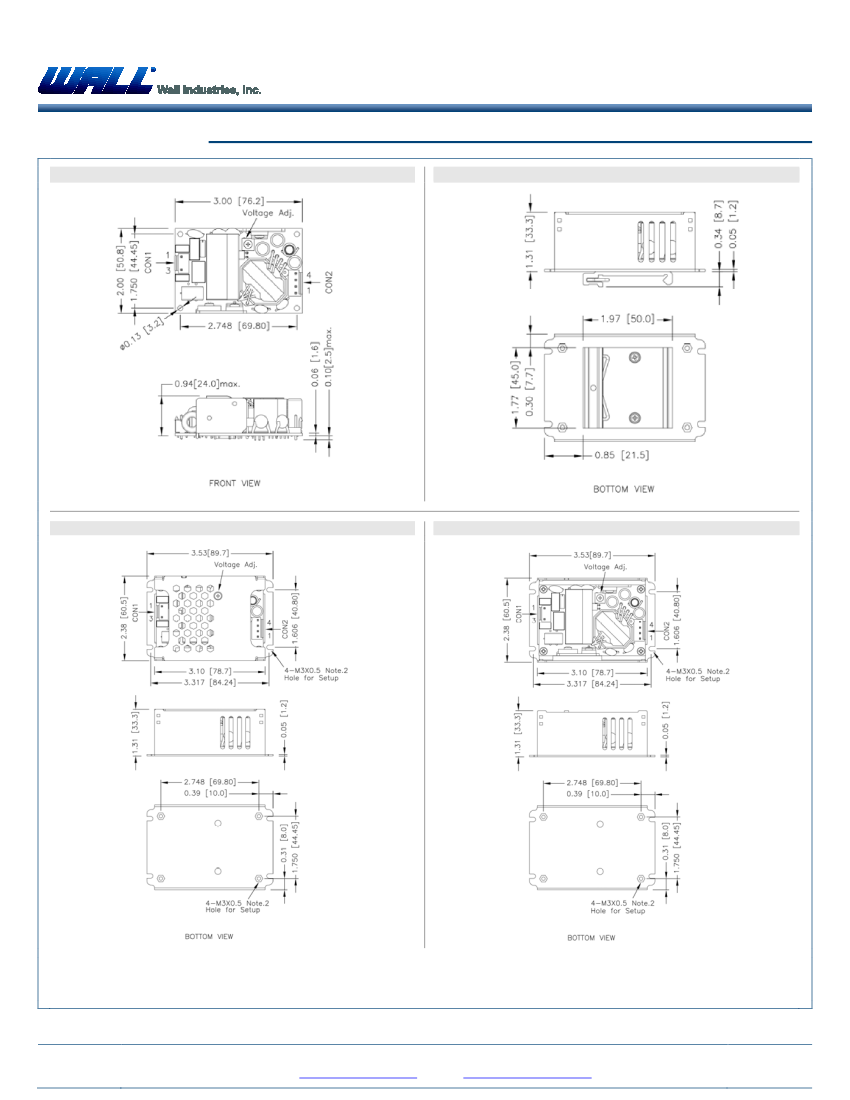

MECHANICAL DRAWINGS
O Type- Open Frame
DN Type- Din Rail Type
C Type- Enclosed Type
U Type- U Chassis Type
1.
2.
3.
All dimensions in inch (mm)
Tolerance: x.xx±0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
M3x0.5 screw locked torque MAX 5Kgf.cm/0.49N.m
7/22/2019
Wall Industries, Inc. • Tel: 603-778-2300 • Toll Free: 888-597-9255 •
website:
www.wallindustries.com
• e-mail:
sales@wallindustries.com
Page 5 of 6
