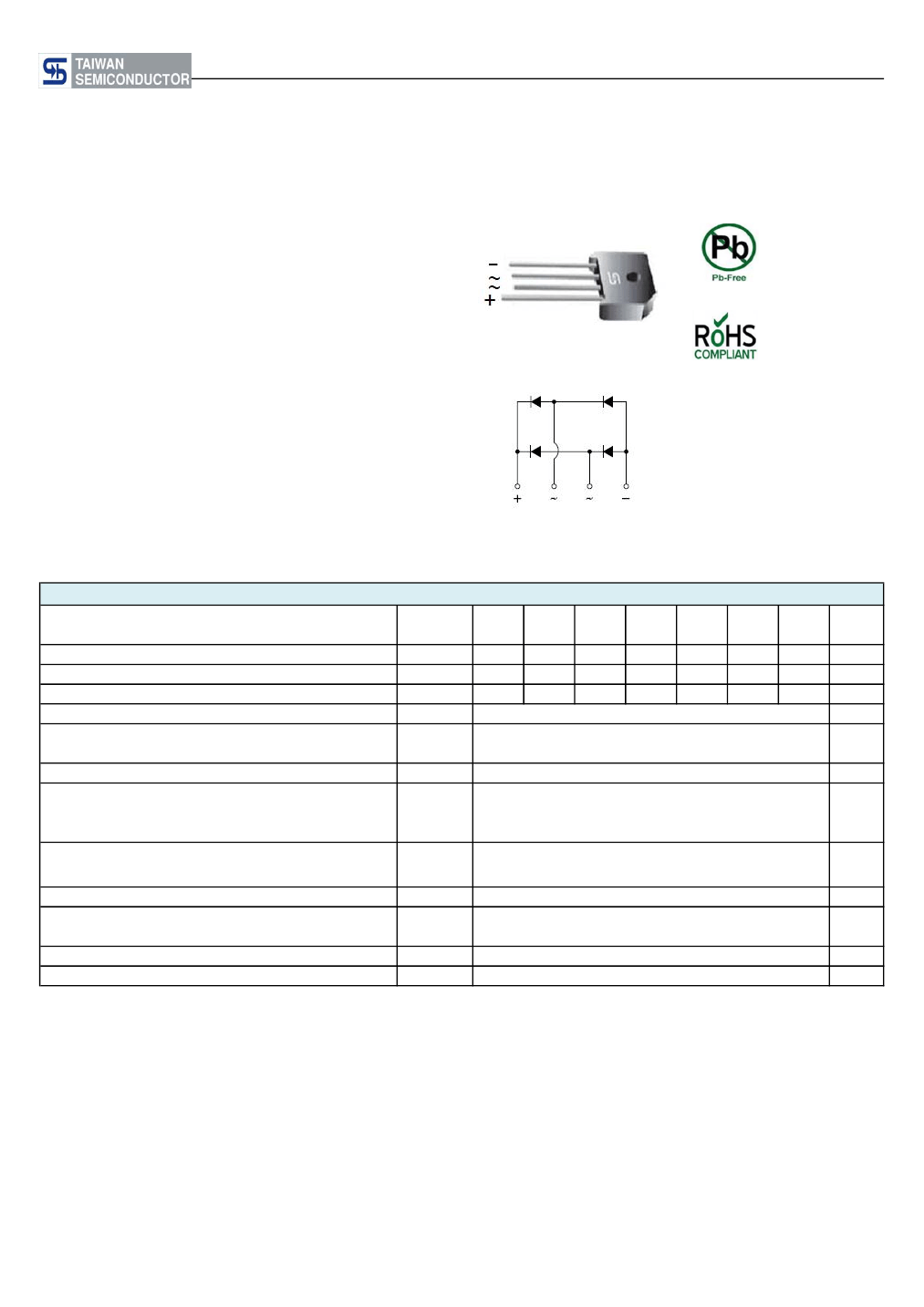

KBU1001G thru KBU1007G
Taiwan Semiconductor
CREAT BY ART
Glass Passivated Bridge Rectifiers
FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- High case dielectric strength
- Typical IR less than 0.1μA
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
KBU
MECHANICAL DATA
Case:
KBU
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Mounting torque:
0.56 Nm max.
Weight:
7.2 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 5 A
I
F
= 10 A
Maximum DC reverse current
at rated DC blocking voltage
Typical junction capacitance per leg
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs, 1% Duty Cycle
Note 2: Measured at 1MHz and applied Reverse Voltage of 4.0V D.C.
T
J
=25
o
C
T
J
=125
o
C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
KBU
50
35
50
KBU
100
70
100
KBU
200
140
200
KBU
400
280
400
10
200
166
1.0
1.1
5
500
400
2.2
25
- 55 to +150
- 55 to +150
O
KBU
600
420
600
KBU
800
560
800
KBU
1000
700
1000
1001G 1002G 1003G 1004G 1005G 1006G 1007G
Unit
V
V
V
A
A
A
2
s
V
I
R
Cj
R
θJC
R
θJA
T
J
T
STG
μA
pF
C/W
O
O
C
C
Document Number: DS_D1409013
Version: H14
KBU1001G thru KBU1007G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
KBU100xG
(Note 1)
PACKING CODE
PACKING CODE
SUFFIX
T0
G
KBU
500 / Tray
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (KBU1001G) to 1000V (KBU1007G)
EXAMPLE
PREFERRED P/N
KBU1007G T0
KBU1007G T0G
PART NO.
KBU1007G
KBU1007G
PACKING CODE
T0
T0
G
Green compound
PACKING CODE
SUFFIX
DESCRIPTION

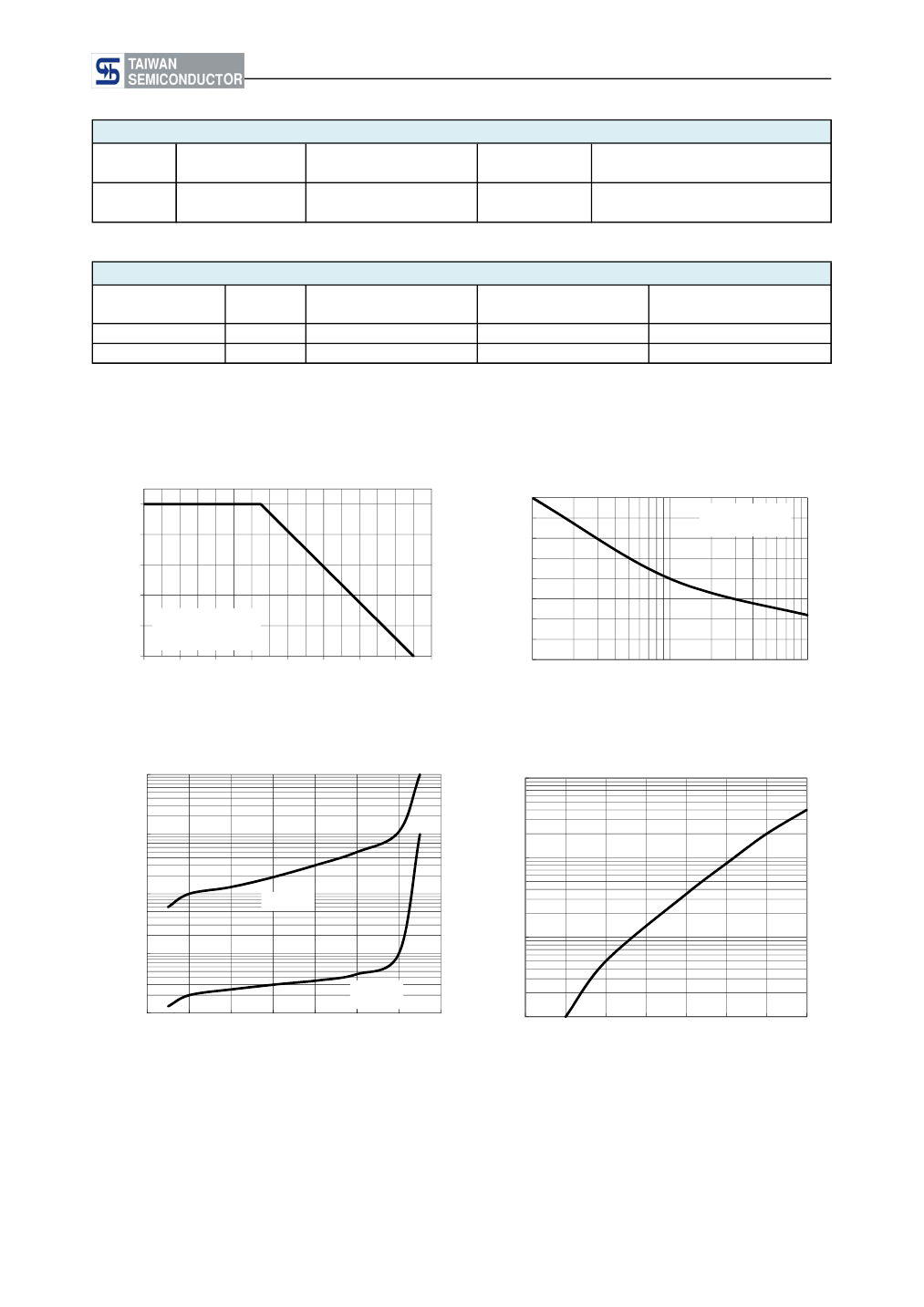

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25
o
C unless otherwise noted)
FIG.1 MAXIMUM DERATING CURVE FOR
OUTPUT CURRENT
10
AVERAGE FORWARD
A
CURRENT (A)
8
6
4
2
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
PEAK FORWARD SURGE CURRENT (A)
200
175
150
125
100
75
50
25
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single
Half Sine Wave
FIG. 2 MAXIMUM FORWARD SURGE CURRENT
PER LEG
1000
INSTANTANEOUS REVERSE CURRENT (μA)
FIG. 3 TYPICAL REVERSE CHARACTERISTICS
PER LEG
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
INSTANTANEOUS FORWARD CURRENT (A)
10
10
T
J
=125
o
C
1
1
T
J
=25
o
C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (V)
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
INSTANTANEOUS FORWARD VOLTAGE (V)
Document Number: DS_D1409013
Version: H14
KBU1001G thru KBU1007G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
A
100
10
0.1
1
10
100
REVERSE VOLTAGE (V)

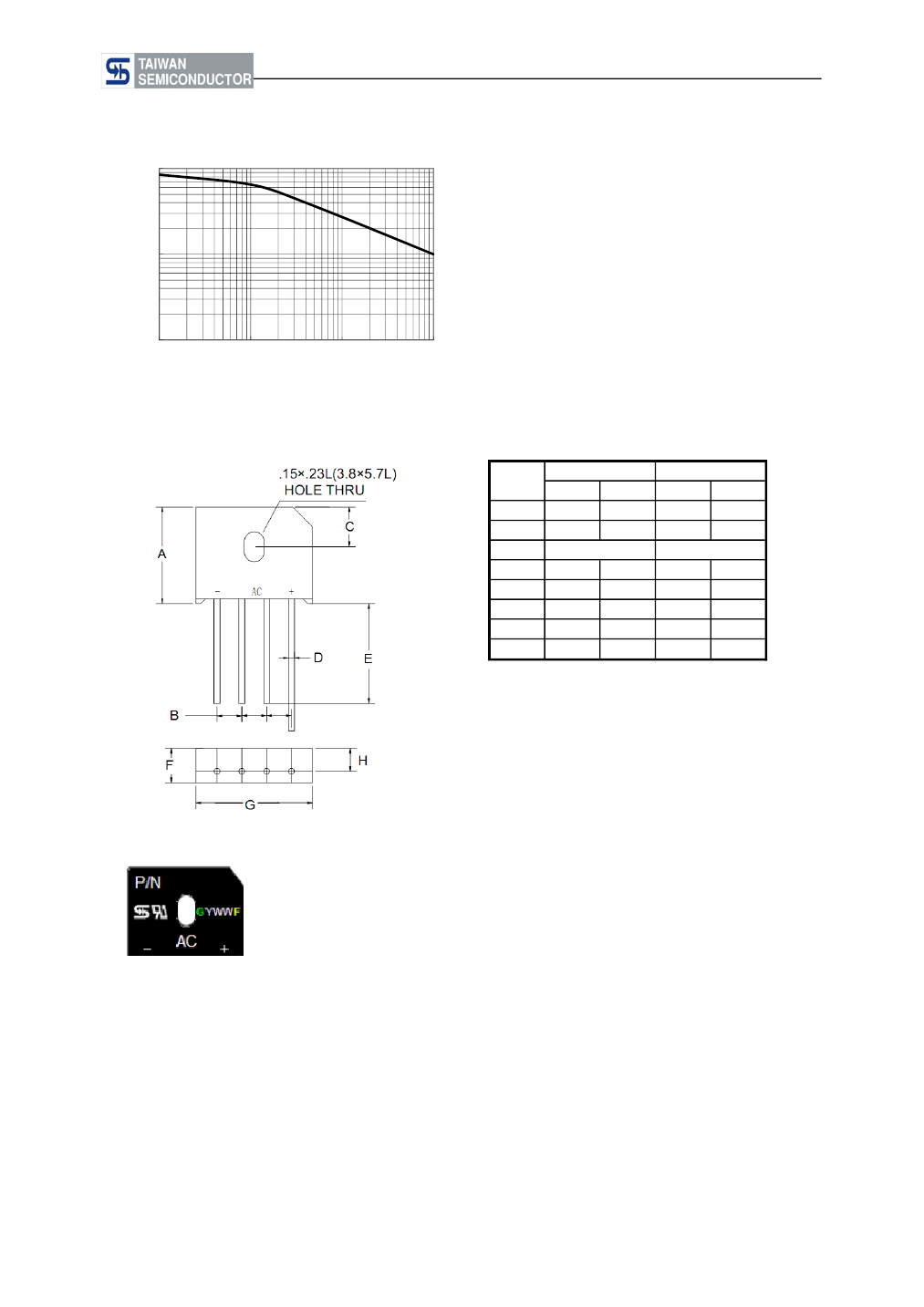

PACKAGE OUTLINE DIMENSIONS
KBU
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
18.8
4.6
1.2
20.0
6.8
22.7
4.6
Max
19.8
5.6
1.3
-
7.1
23.7
5.0
Unit (inch)
Min
0.740
0.181
0.047
0.787
0.268
0.894
0.181
Max
0.780
0.220
0.051
-
0.280
0.933
0.197
8.2 (TYP.)
0.322 (TYP.)
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1409013
Version: H14
KBU1001G thru KBU1007G
Taiwan Semiconductor
CREAT BY ART
