52852-1210

Description
Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,
CategoryThe connector    The connector
File Size507KB,8 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

52852-1210 Overview

Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

52852-1210 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Connector typeFFC/FPC CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1
FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 7 to 30 circuits
s
For 0.30mm thick FFC/FPC
s
Metal solder tabs provide PCB hold-down and
strain relief for SMT tails
Reference Information

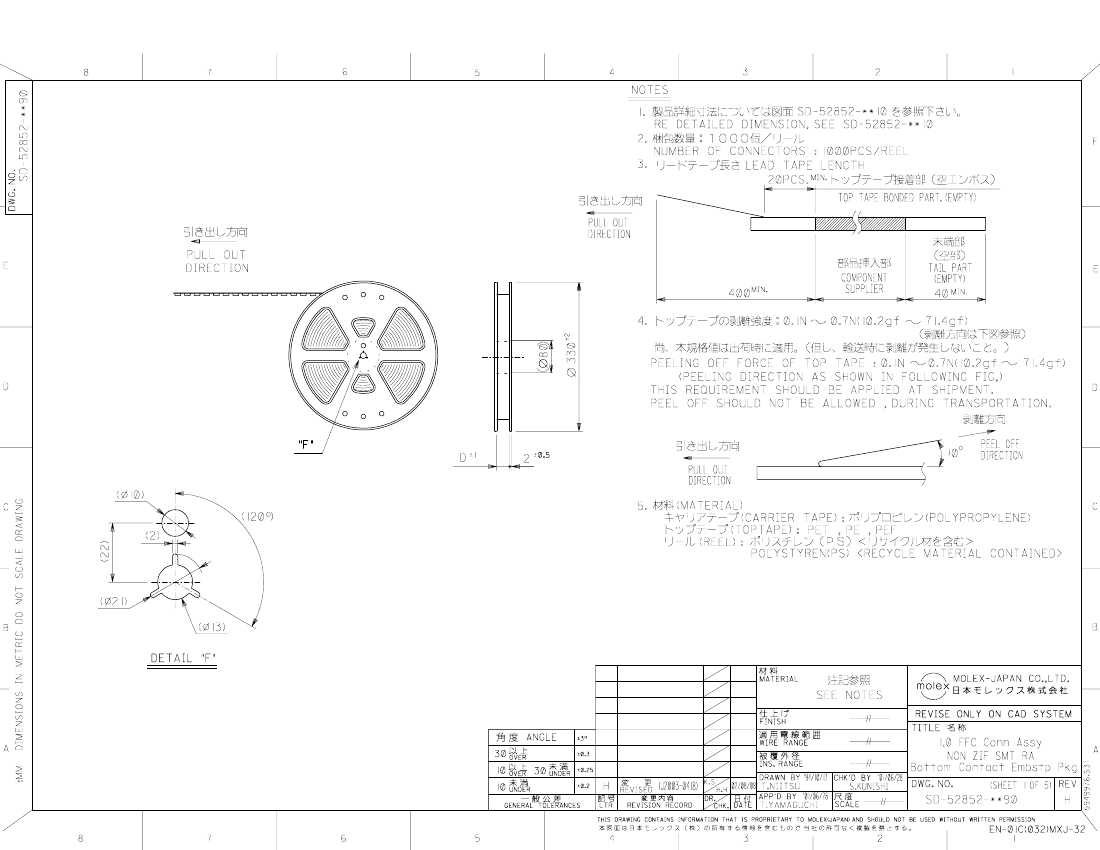

Packaging: Embossed tape
Designed In: Millimeters
Electrical
Voltage: 50V
Current: 0.5A
Contact Resistance: 30m
max.
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: 100 M
min.
Physical
Housing: PPS, UL 94V-0
Contact: Phosphor Bronze
Plating: Tin/Lead
Solder Tabs: Phosphor Bronze, Tin/Lead plating
Operating Temperature: -20 to +80˚C
1.00mm (.039") Pitch
FFC/FPC Connector
52852
Right Angle, SMT
Non-ZIF
Bottom Contact Style

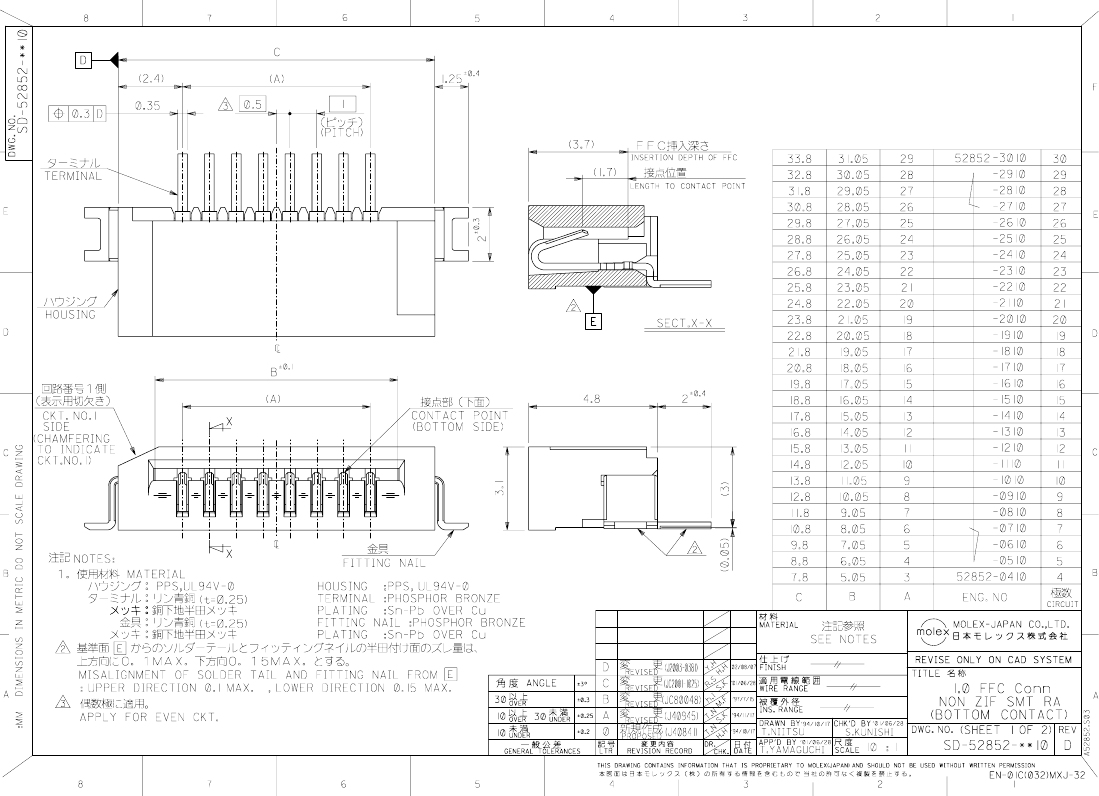

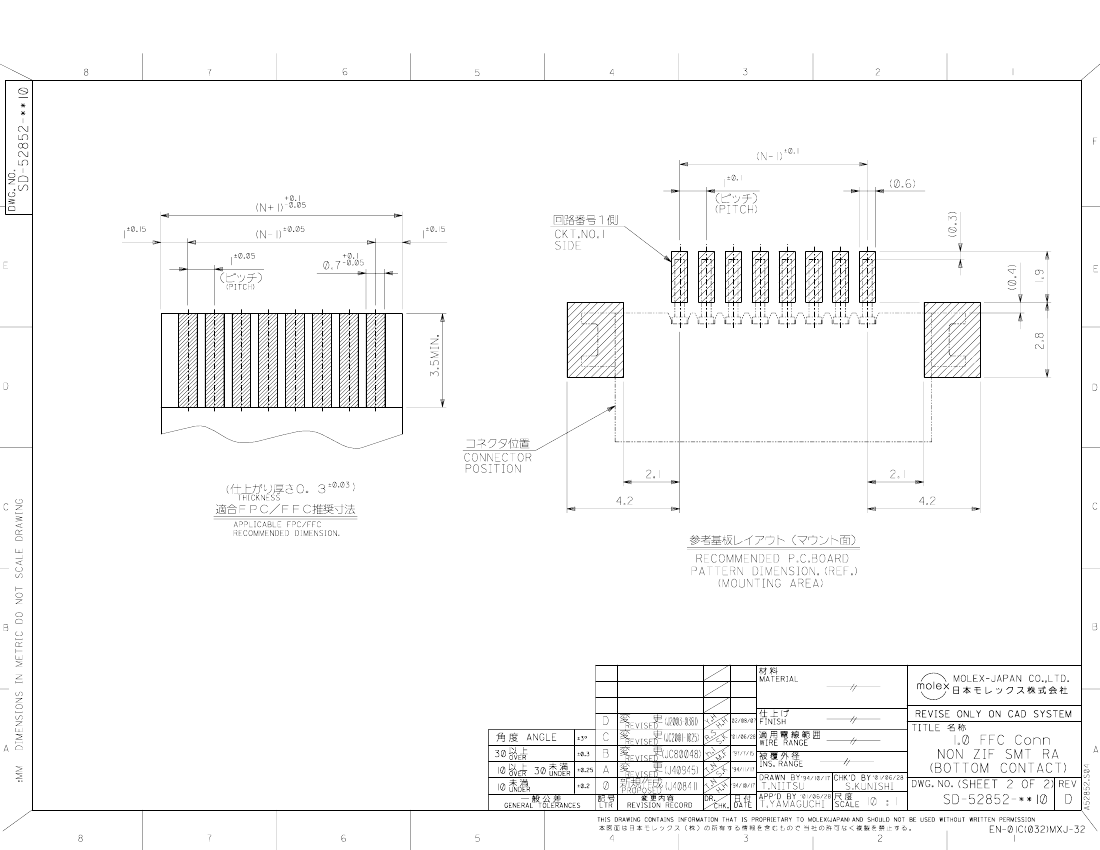

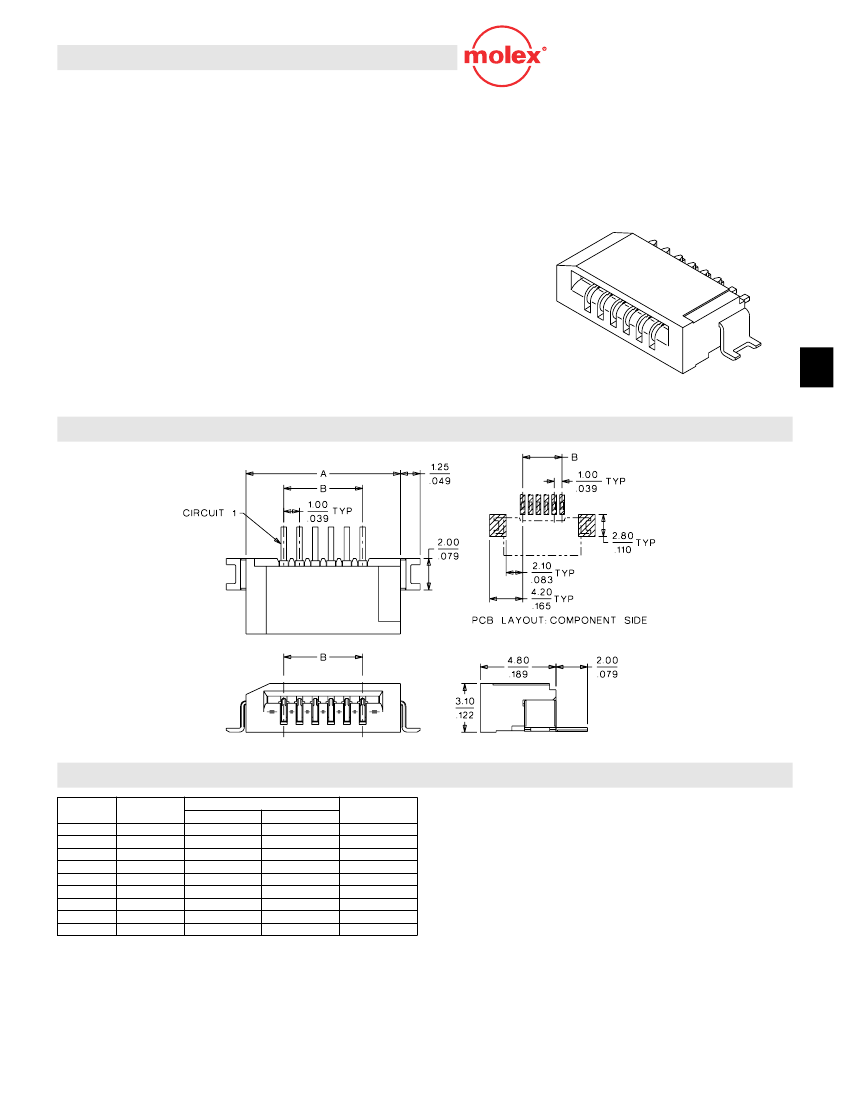

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
7
13
16
18
19
20
22
26
30
Order No.
52852-0790
52852-1390
52852-1690
52852-1890
52852-1990
52852-2090
52852-2290
52852-2690
52852-3090
Dimension
A
10.80 (.425)
16.80 (.661)
19.80 (.779)
21.80 (.858)
22.80 (.897)
23.80 (.937)
25.80 (1.015)
29.80 (1.173)
33.80 (1.330)
B
6.00 (.236)
12.00 (.472)
15.00 (.590)
17.00 (.669)
18.00 (.708)
19.00 (.748)
21.00 (.826)
25.00 (.984)
29.00 (1.141)

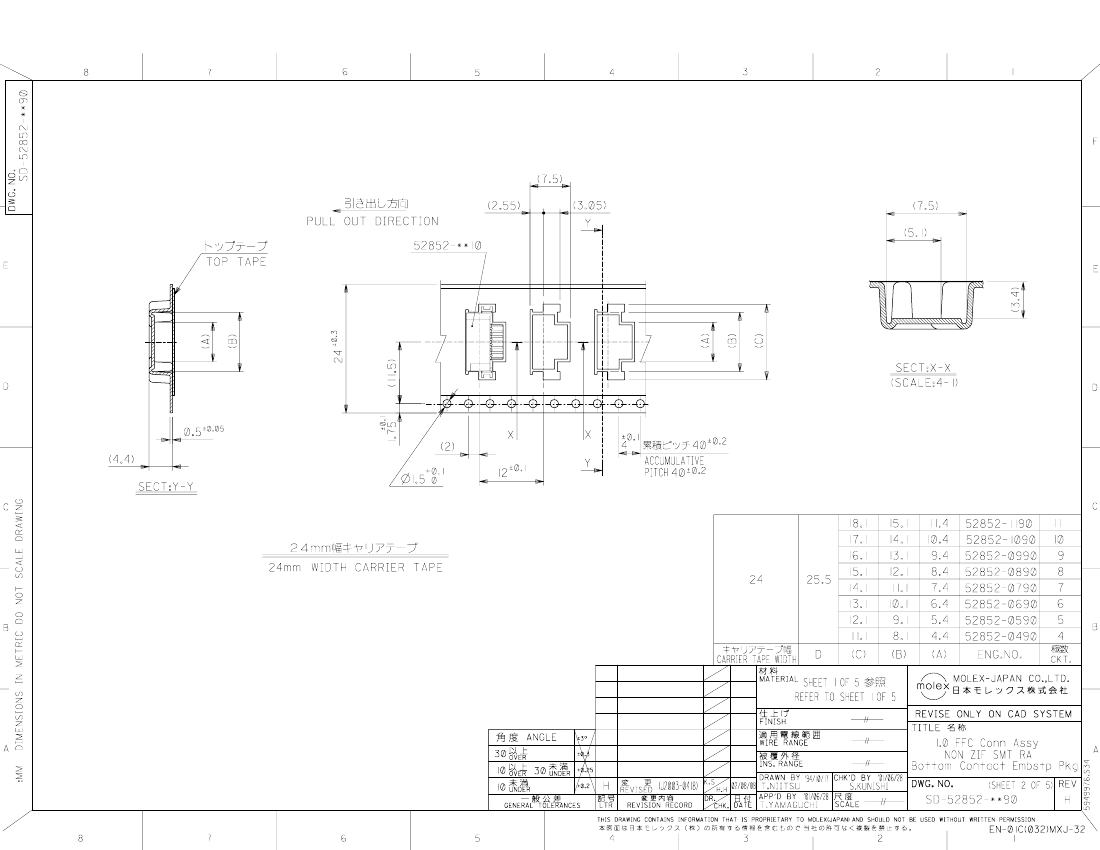

Carrier
Tape Width
24.00
32.00
32.00
44.00
44.00
44.00
44.00
44.00
56.00
(.945)
(1.260)
(1.260)
(1.732)
(1.732)
(1.732)
(1.732)
(1.732)
(2.204)
Note: For cable specification dimensions, see cable pages at end of section
MX01
G-27
FFC/FPC Connectors
