ODU CARD
Contents
Chapter
1
2
Female headers, Series 517
Pin headers, Series 511
From page
3
18

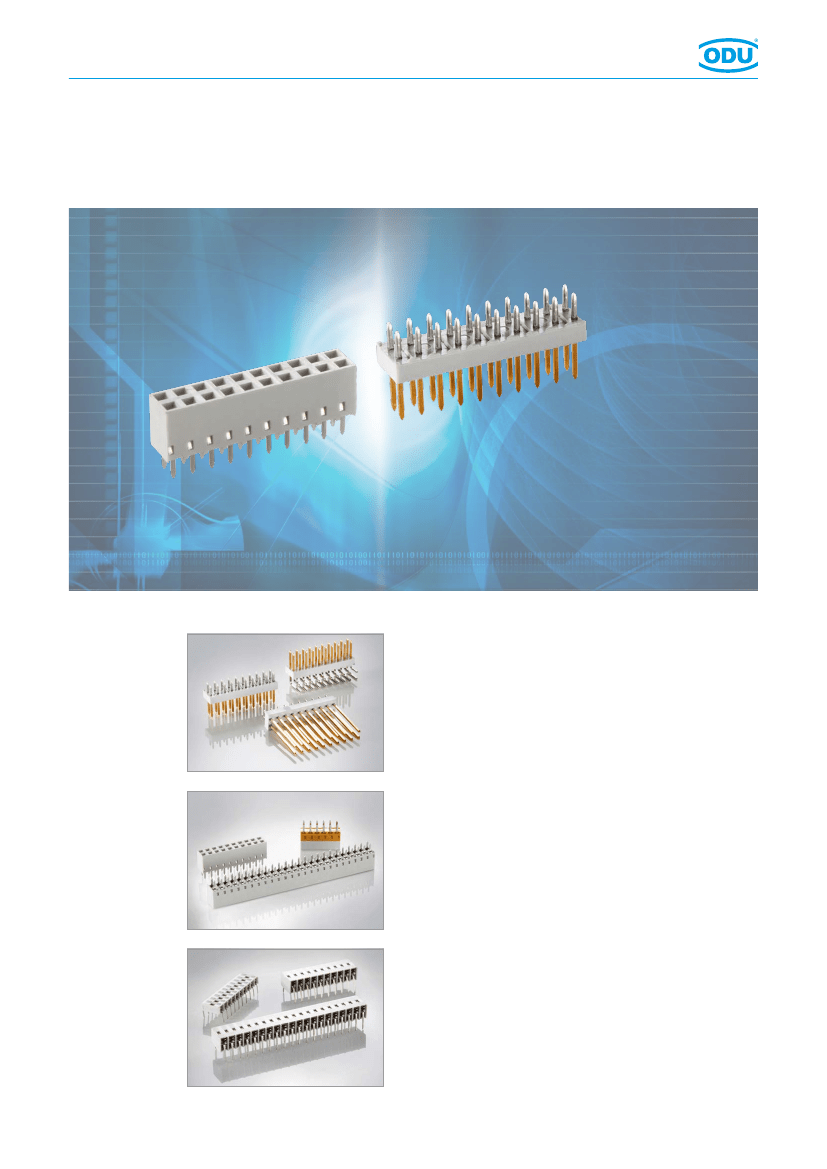

Description:
The ODU CARD connectors are suitable as
pluggable contact elements with a medium
or high number of contacts. Thanks to the
geometrically favourable positioning, they
allow a high packing density on the PCBs.
ODU CARD connectors are available as
square sockets / pin combination.
Board-to-board connector,
pitch = 2.54 mm.
Features:
– Detachable connection using pin and
female headers
– 1- and 2-row versions
– 1-row: 2 – 30 contacts
– 2-row: 2 – 60 contacts (in steps of 2)
– Pin headers with optimal pin tip shape
– Female headers for vertical assembly
also available with covering foil
All dimensions in mm.
Some of the pictures are illustrations.
Errors and omissions excepted.
Issue: 2014 - 03
www.odu.de
Page 2
ODU CARD
Explanation of number codes for ODU CARD, Series 517
Pitch 2.54 mm for cross-section 0.64 × 0.64 mm
Number codes
A
B
C
D
E
.
No.
Meaning
Coding
.
.
.
A
Series
B
Type
517
= Female headers, pitch 2.54 mm
022
= Vertical assembly, 2-point contact,
1-row
023
= Vertical assembly, 2-point contact,
2-row
027
= Vertical assembly, with angled soldering
lugs, 4-point contact, 1-row
028
= Vertical assembly, with angled soldering
lugs, 4-point contact, 2-row
032
= Pluggable on one side, insulator 5.08 / 2.8 mm,
mating length 6.0 mm, 2-row, straight
033
= Vertical assembly, with cranked soldering
lug, 2-point contact, 2-row
220
= Horizontal assembly, 4-point contact, 1-row
221
= Horizontal assembly, 4-point contact, 2-row
003
= In mating area 0.5 μm Au on Ni,
in termination area 2.0 μm Sn on Ni
(standard)
009
= Flash-gold-plated (upon request)
035
= In mating area 0.75 μm Au on Ni,
in termination area 2.0 μm Sn on Ni
(upon request)
010
= 10 contacts (example)
000
= Cardboard box
C
Surface plating
D
E
Number of contacts
Packaging
Ordering example for Series 517
A
B
C
D
E
5 1 7
.
0 2 2
.
0 0 3
.
0 1 0
.
0 0 0
A = Series: 517 female headers, pitch 2.54 mm
B = Type: vertical assembly, 2-point contact, 1-row
C = Surface plating: in mating area 0.5 μm Au on Ni,
in termination area 2.0 μm Sn on Ni (standard)
D = Number of contacts: 10
E = Packaging: cardboard box
www.odu.de
Page 5
