5962R9672502TXC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9672502TXC

5962R9672502TXC: DescriptionBus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERAMIC, DFP-20; Categorylogic logic; File Size49KB，3 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric View All

5962R9672502TXC Overview

Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERAMIC, DFP-20

5962R9672502TXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	20
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-CDFP-F20
JESD-609 code	e4
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.92 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACTS573T

Semiconductor

Data Sheet

January 1999

File Number

4613

Radiation Hardened Octal Three-State

Transparent Latch

Harris’ Satellite Applications

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The Harris ACTS573T is a Radiation Hardened Octal

Transparent Latch with an active low output enable. The

outputs are transparent to the inputs when the latch enable

(LE) is High. When the latch goes low the data is latched.

The output enable controls the three-state outputs. When

the output enable pins (OE) are high the output is in a high

impedance state. The latch operation is independent of the

state of output enable.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- Single Event Upset (SEU) Immunity: <1 x 10

-10

Errors/Bit/Day (Typ)

- SEU LET Threshold . . . . . . . . . . . . .>100 MEV-cm

/mg

• 1.25 Micron Radiation Hardened SOS CMOS

• Signiﬁcant Power Reduction Compared to ALSTTL Logic

• DC Operating Voltage Range . . . . . . . . . . . . 4.5V to 5.5V

• Input Logic Levels

- V

= 0.8V Max

- V

= VCC/2 Min

• Fast Propagation Delay . . . . . . . . 18ns (Max), 12ns (Typ)

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACTS573T are

contained in SMD 5962-96725.

A “hot-link” is provided from

our website for downloading.

http://www.semi.harris.com/families/smdrh.htm

Harris’ Quality Management Plan (QM Plan), listing all Class

T screening operations, is also available on our website.

http://www.semi.harris.com/quality/manuals.htm

Pinouts

ACTS573T (SBDIP), CDIP2-T20

TOP VIEW

20 V

19 Q0

18 Q1

17 Q2

16 Q3

15 Q4

14 Q5

13 Q6

12 Q7

11 LE

Ordering Information

ORDERING

INFORMATION

5962R9672502TRC

ACTS573D/Sample-02

5962R9672502TXC

ACTS573K/Sample-02

PART

NUMBER

ACTS573DTR-02

ACTS573D/Sample-02

ACTS573KTR-02

ACTS573K/Sample-02

TEMP.

RANGE

(

-55 to 125

GND 10

ACTS573T (FLATPACK), CDFP4-F20

TOP VIEW

GND

NOTE:

Minimum order quantity for -T is 1000 units

Orders must be placed through Harris Sales or Rep Ofﬁces.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-800-4-HARRIS

Harris Corporation 1999

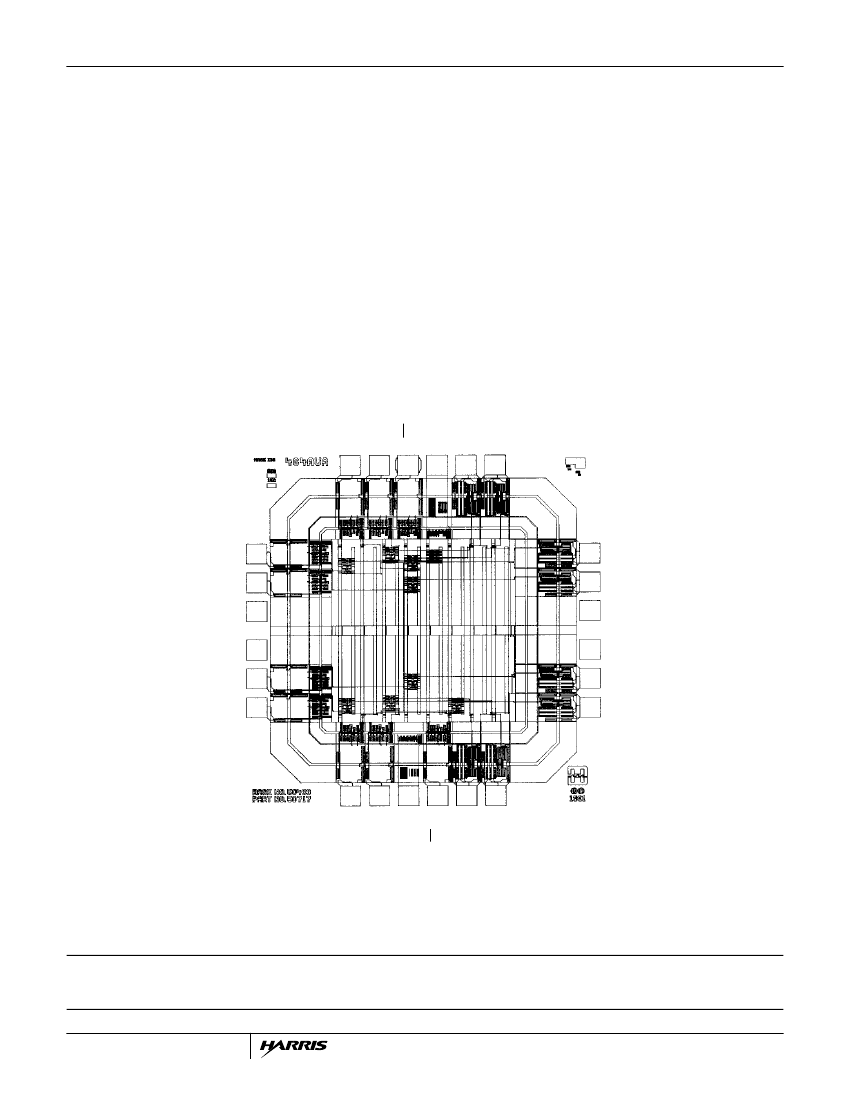

Satellite Applications Flow™ (SAF) is a trademark of Harris Corporation.
