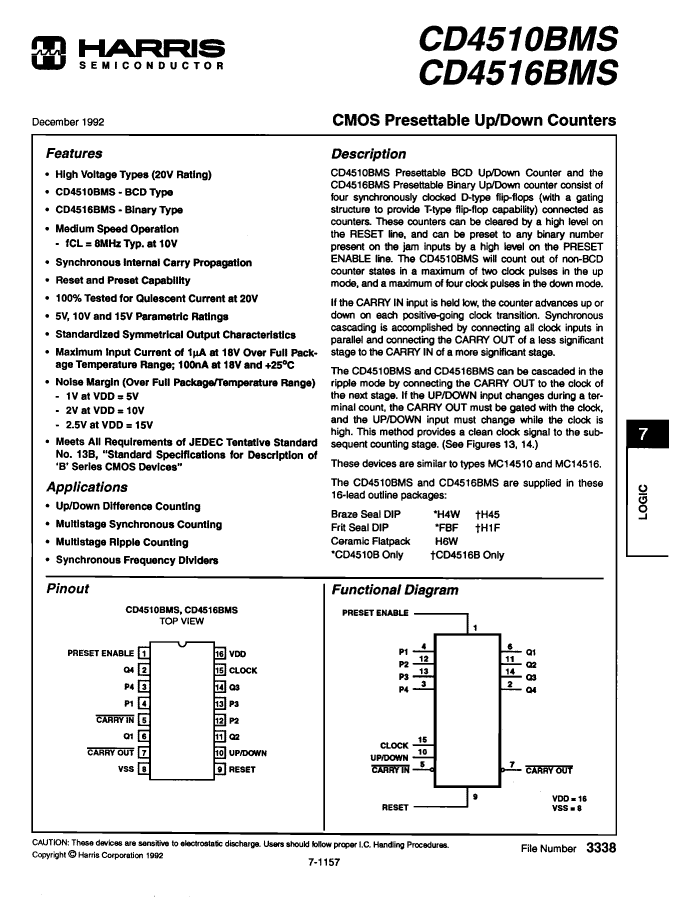

5962R9665701VXC datasheet, PDF

5962R9665701VXC: DescriptionDecade Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16; Categorylogic logic; File Size414KB，12 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric View All

5962R9665701VXC Overview

Decade Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, CMOS, CDFP16

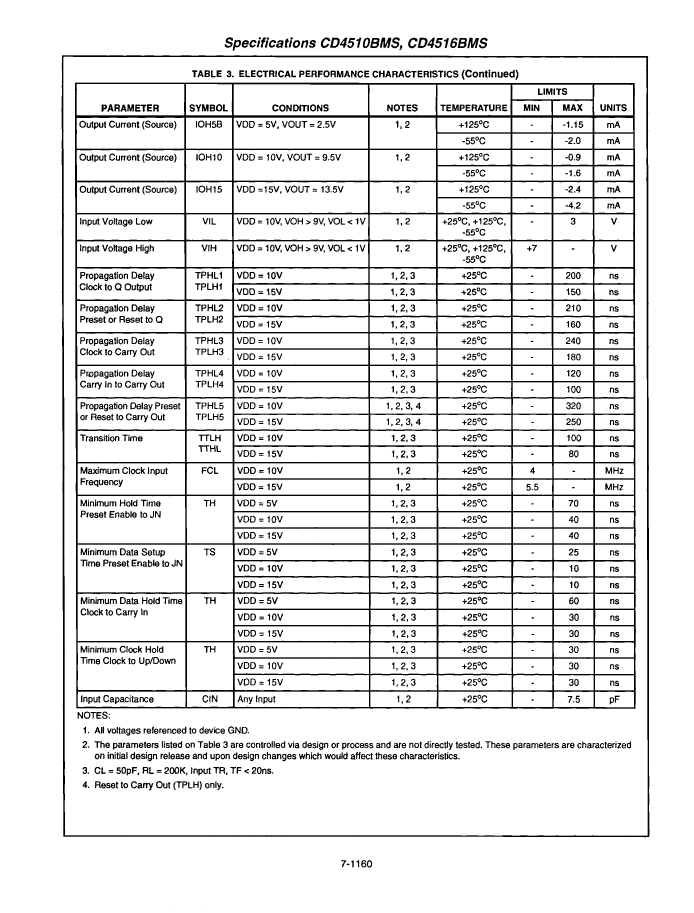

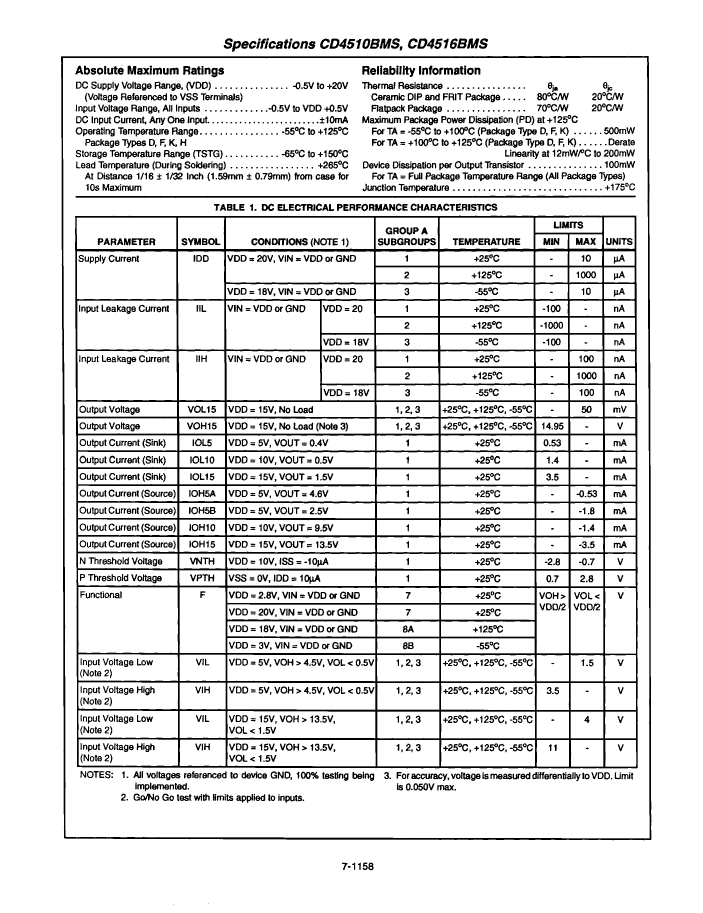

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	TCO OUTPUT; INPUT AC PARAMETRIC VALUES NOT FROM POST RADIATION MEASUREMENT
Counting direction	BIDIRECTIONAL
series	4000/14000/40000
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK

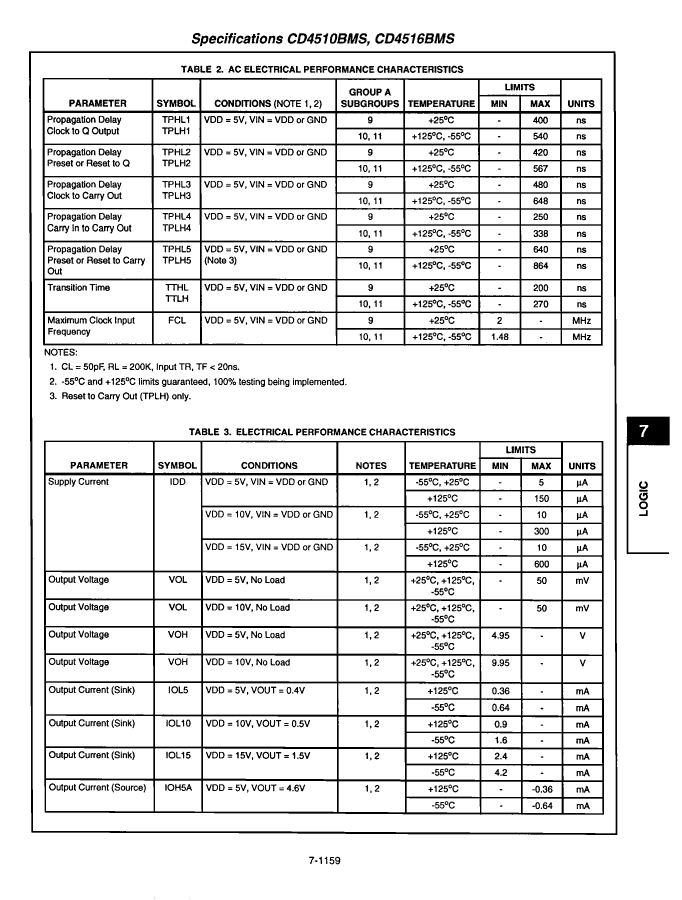

propagation delay (tpd)	540 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL

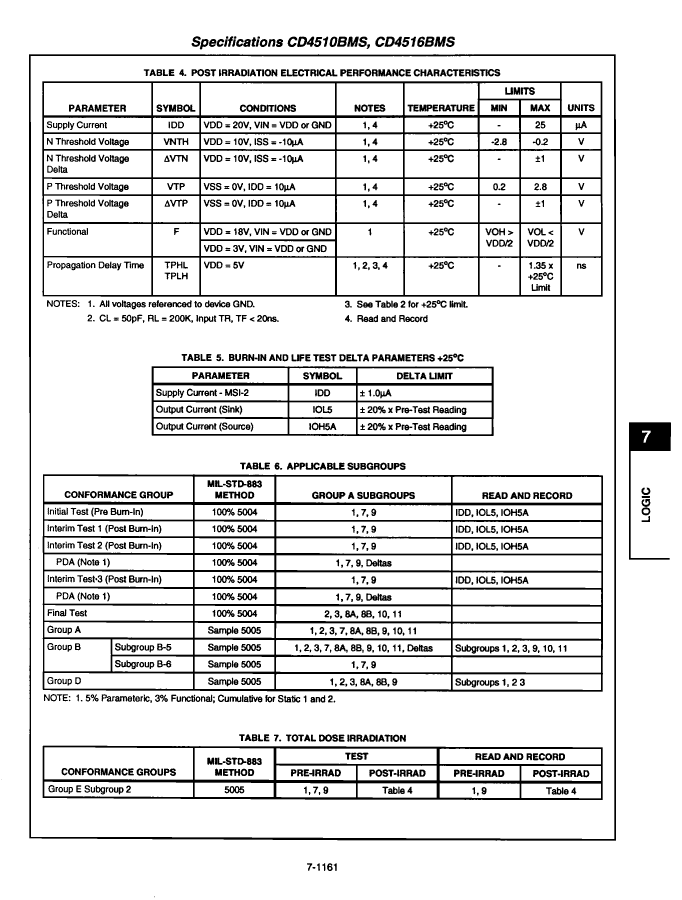

total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
minfmax	1.48 MHz
Base Number Matches	1
