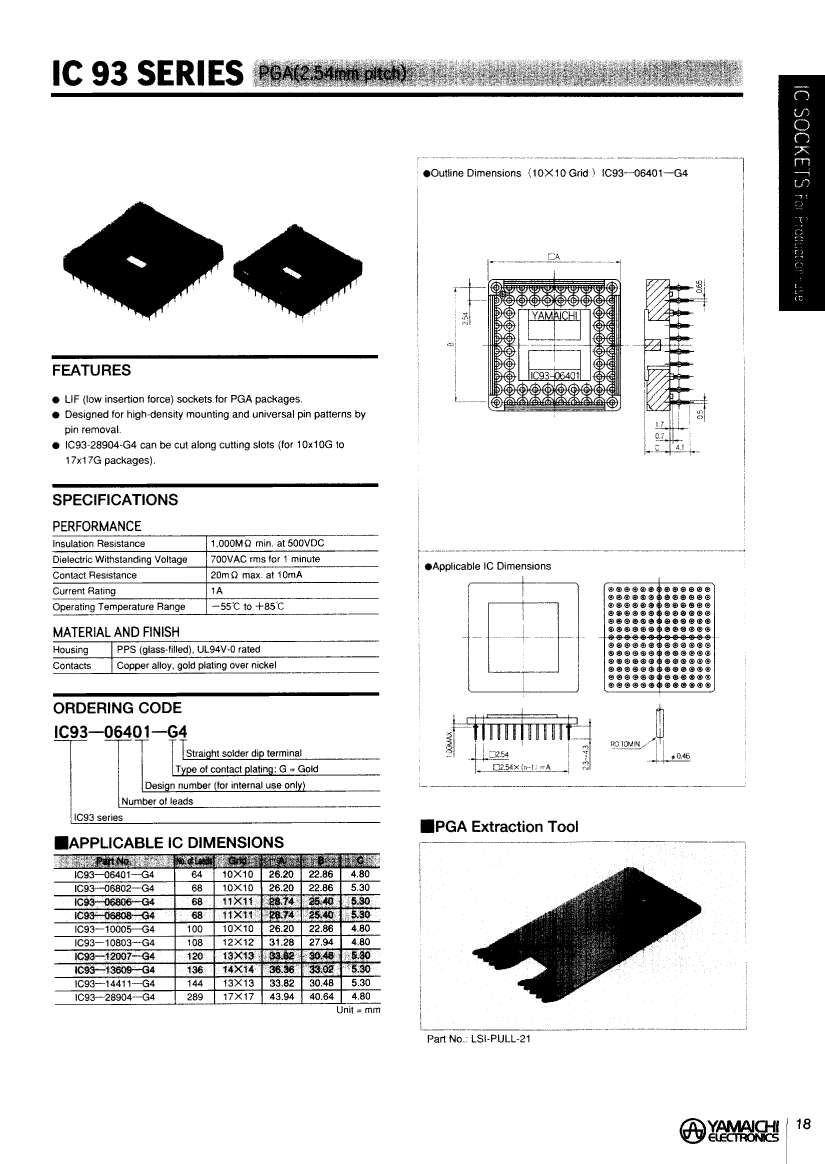

IC93-28904-G4: DescriptionIC Socket, PGA289, 289 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size244KB，3 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric Compare View All

IC93-28904-G4 Overview

IC Socket, PGA289, 289 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

IC93-28904-G4 Parametric

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	1.598 inch
subject depth	0.217 inch
body length	1.598 inch

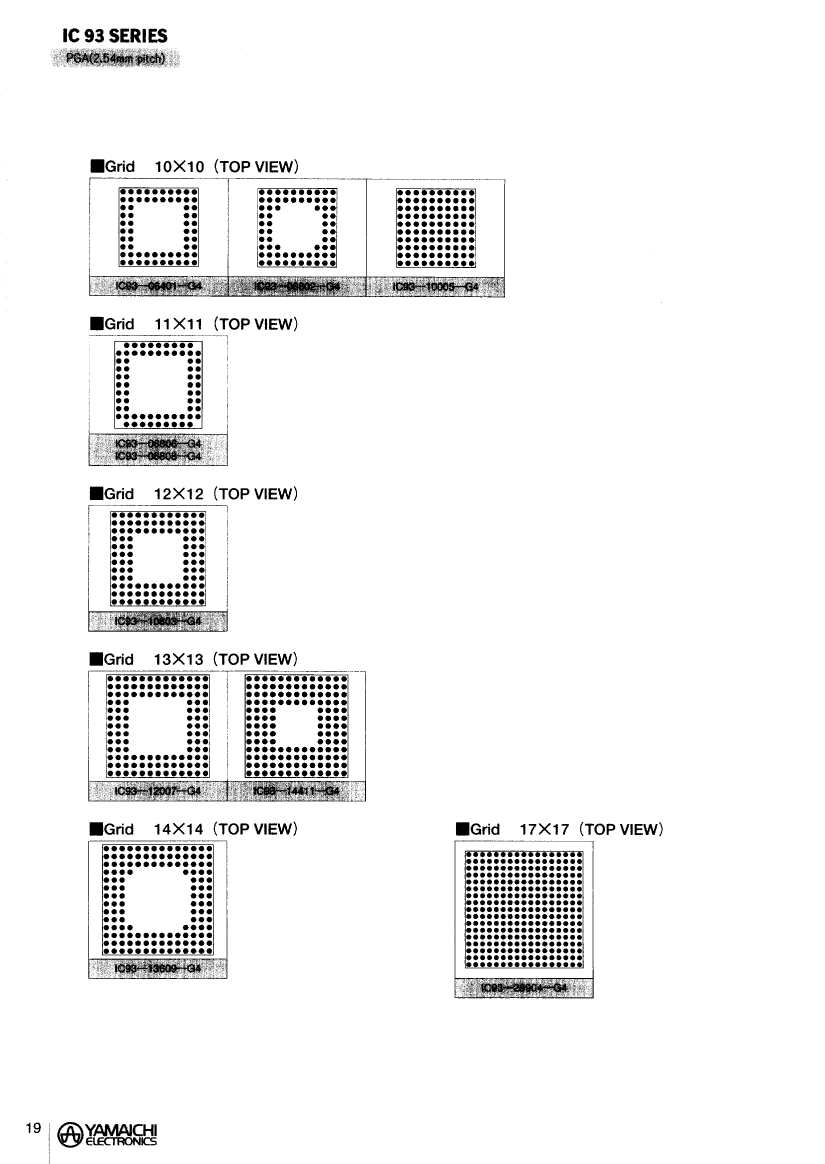

Contact structure	17X17
Contact to complete cooperation	AU ON NI
Contact material	P-CUSN
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	PGA289
Dielectric withstand voltage	700VAC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	IC93
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	289
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

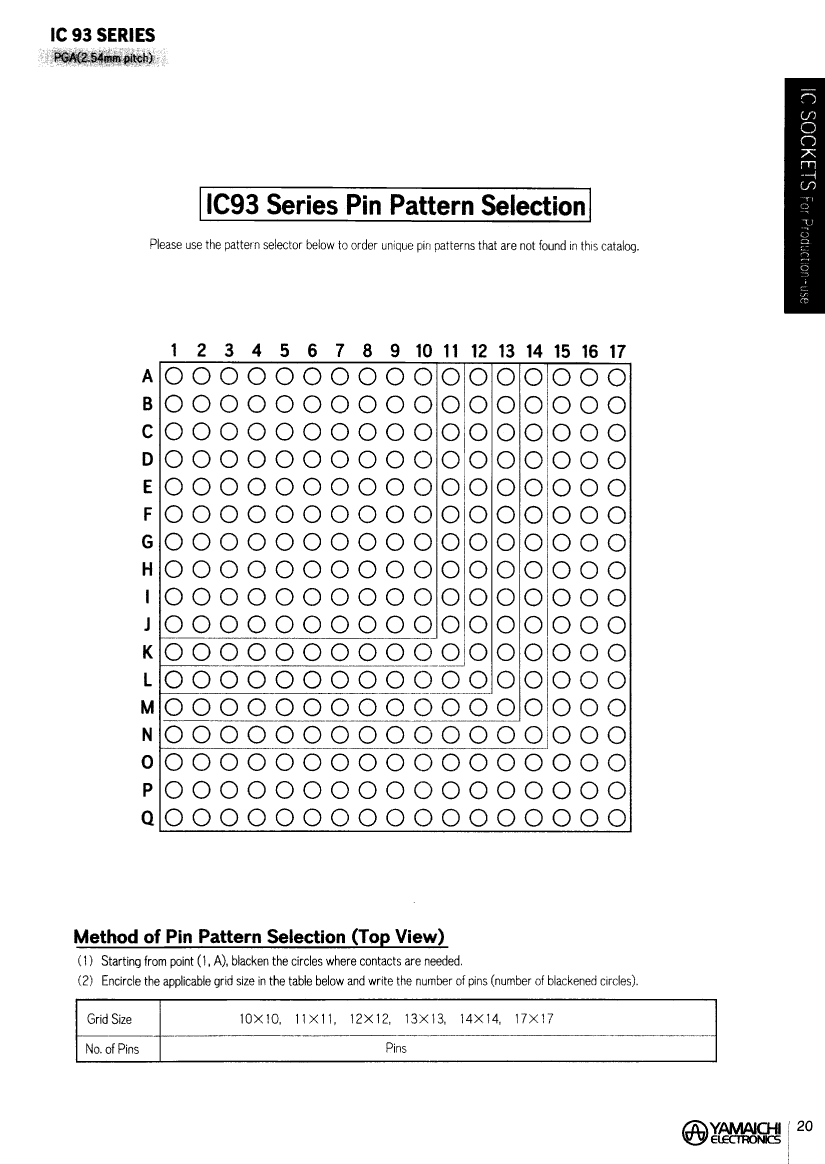

Preview

Download Datasheet

View All

IC93-28904-G4 Related Products

	IC93-28904-G4	IC93-06401-G4	IC93-06808-G4	IC93-12007-G4	IC93-14411-G4	IC93-06806-G4	IC93-06802-G4	IC93-10803-G4	IC93-13609-G4
Description	IC Socket, PGA289, 289 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA64, 64 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA68, 68 Contact(s)	IC Socket, PGA120, 120 Contact(s)	IC Socket, PGA144, 144 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA68, 68 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA68, 68 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA108, 108 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder	IC Socket, PGA136, 136 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA289	PGA64	PGA68	PGA120	PGA144	PGA68	PGA68	PGA108	PGA136
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Number of contacts	289	64	68	120	144	68	68	108	136
Maker	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	-	-	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.	Yamaichi Electronics Co., Ltd.
body width	1.598 inch	1.031 inch	-	-	1.331 inch	1.121 inch	1.031 inch	1.231 inch	1.431 inch
subject depth	0.217 inch	0.217 inch	-	-	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
body length	1.598 inch	1.031 inch	-	-	1.331 inch	1.121 inch	1.031 inch	1.231 inch	1.431 inch
Contact structure	17X17	10X10	-	-	13X13	11X11	10X10	12X12	14X14
Contact to complete cooperation	AU ON NI	AU ON NI	-	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	P-CUSN	P-CUSN	-	-	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	RND PIN-SKT	RND PIN-SKT	-	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	700VAC V	700VAC V	-	-	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	IC93	IC93	-	-	IC93	IC93	IC93	IC93	IC93
Plug contact pitch	0.1 inch	0.1 inch	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Maximum operating temperature	85 °C	85 °C	-	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.1 mm	0.1 mm	-	-	0.1 mm	0.1 mm	0.1 mm	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	-	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	-	-	-
