5962-8754801XX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-8754801XX

5962-8754801XX: DescriptionSerial I/O Controller, 1 Channel(s), 0.0078125MBps, NMOS, CDIP28, CERAMIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size154KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

5962-8754801XX Overview

Serial I/O Controller, 1 Channel(s), 0.0078125MBps, NMOS, CDIP28, CERAMIC, DIP-28

5962-8754801XX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Address bus width
boundary scan	NO
Bus compatibility	IAPX 86; IAPX 88
maximum clock frequency	2.4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; BISYNC
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.0078125 MBps
External data bus width	8
JESD-30 code	R-GDIP-T28
length	37.1475 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	28
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.588 mm
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

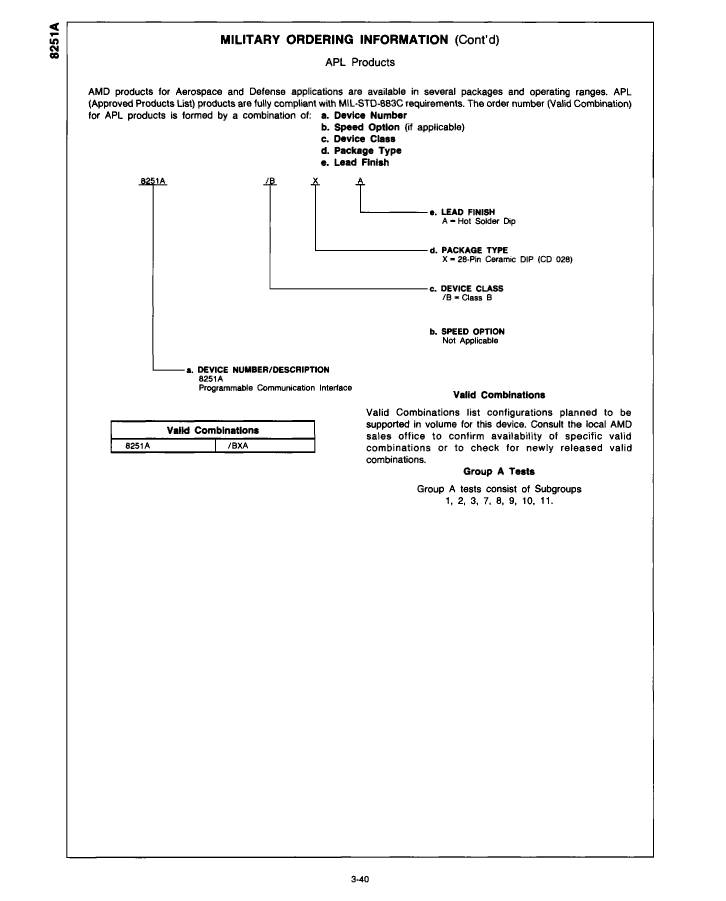

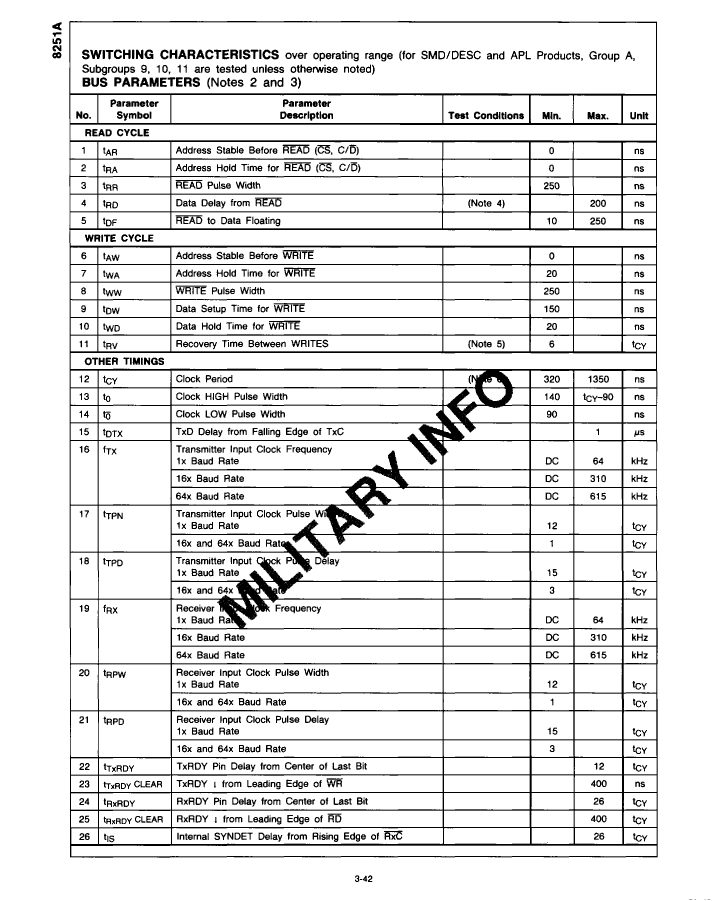

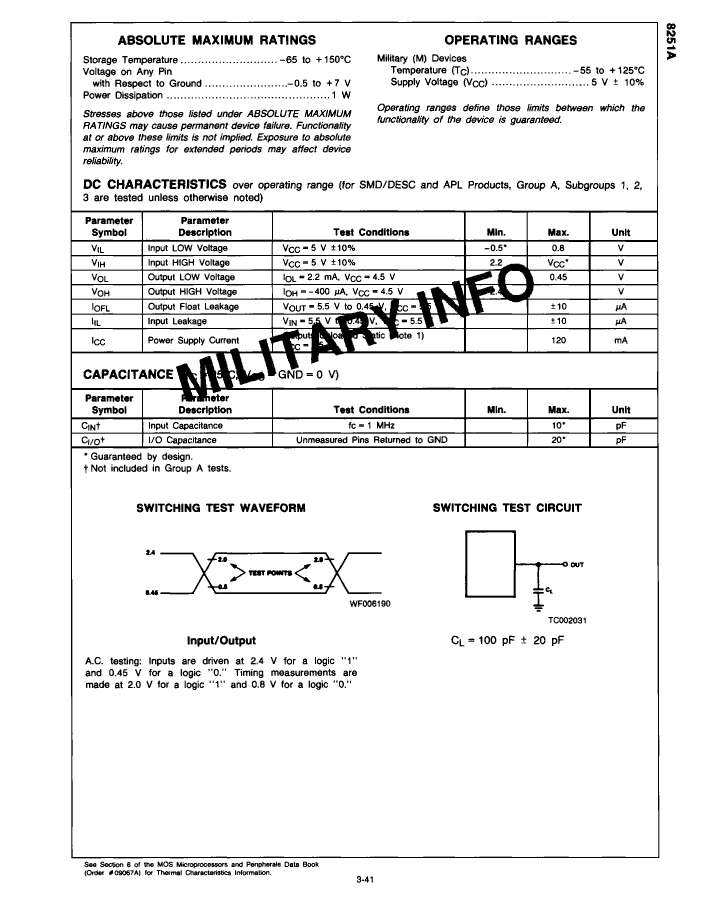

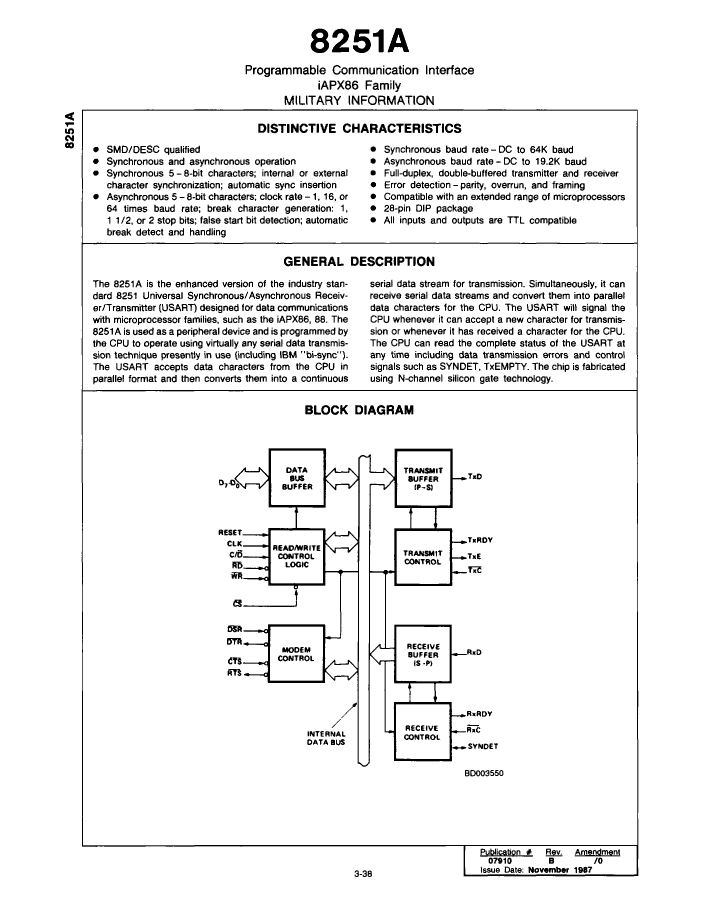

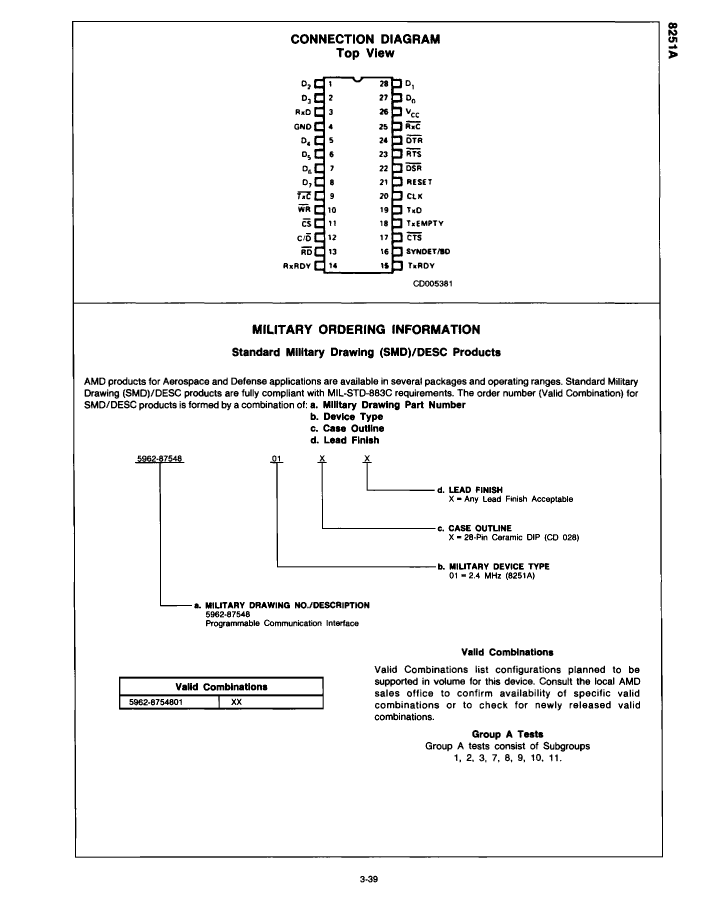

Preview

Download Datasheet

View All

5962-8754801XX Related Products

	5962-8754801XX	8251A/BXA	8251A/BXX
Description	Serial I/O Controller, 1 Channel(s), 0.0078125MBps, NMOS, CDIP28, CERAMIC, DIP-28	Serial I/O Controller, 1 Channel(s), 0.0078125MBps, NMOS, CDIP28, CERAMIC, DIP-28	Serial I/O Controller, 1 Channel(s), 0.0078125MBps, NMOS, CDIP28
package instruction	DIP,	DIP, DIP28,.6	DIP,
Reach Compliance Code	unknown	unknown	unknown
boundary scan	NO	NO	NO
Bus compatibility	IAPX 86; IAPX 88	IAPX 86; IAPX 88	IAPX 86; IAPX 88
maximum clock frequency	2.4 MHz	2.4 MHz	2.4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; BISYNC	ASYNC, BIT; SYNC, BYTE; BISYNC	ASYNC, BIT; SYNC, BYTE; BISYNC
Data encoding/decoding methods	NRZ	NRZ	NRZ
Maximum data transfer rate	0.0078125 MBps	0.0078125 MBps	0.0078125 MBps
External data bus width	8	8	8
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-GDIP-T28
length	37.1475 mm	37.1475 mm	37.1475 mm
low power mode	NO	NO	NO
Number of serial I/Os	1	1	1
Number of terminals	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.588 mm	5.588 mm	5.588 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	NMOS	NMOS	NMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Parts packaging code	DIP	DIP	-
Contacts	28	28	-
Maximum slew rate	120 mA	120 mA	-
Maker	-	AMD	AMD
