IM821C-3E-BS-115.194001MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> IM821C-3E-BS-115.194001MHZ

IM821C-3E-BS-115.194001MHZ: DescriptionXO, Clock,; CategoryPassive components oscillator; File Size608KB，9 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

IM821C-3E-BS-115.194001MHZ Overview

XO, Clock,

IM821C-3E-BS-115.194001MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	STANDBY; ENABLE/DISABLE FUNCTION; ALSO COMPATIBLE WITH HCMOS OUTPUT; TR, 7 INCH
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	115.194001 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.8mm
longest rise time	2 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

MEMS Oscillator, High Temperature, LVCMOS/HCMOS Compatible, 115.19401 MHz to 137.000MHz

IM821 Series

Features:



MEMS Technology

Direct pin to pin drop-in replacement for industry-standard packages

LVCMOS/HCMOS Compatible Output

Industry-standard package 2.0 x1.6, 2.5 x 2.0, 3.2 x 2.5, and 5.0 x 3.2 mm x mm

Pb-free, RoHS and REACH compliant

Fast delivery times

Typical Applications:



Fibre Channel

Server and Storage

GPON, EPON

100M / 1G /10G Ethernet

Electronic Specifications:

Frequency Range

Frequency Stability

Operating Temperature

Supply Voltage (Vdd) ±10%

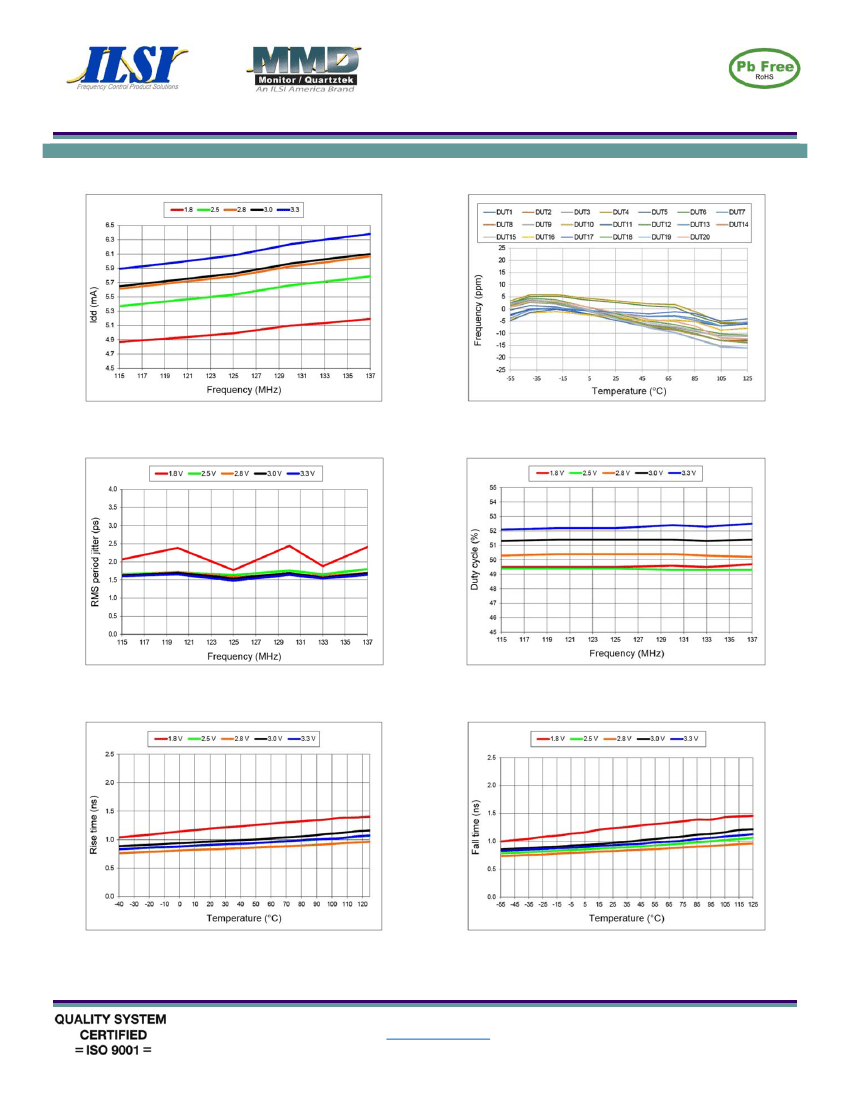

Current Consumption

115.194001 MHz to 137.000MHz

See Part Number Guide

6.2 mA typ./ 8.0 mA max

5.4 mA typ./ 7.0 mA max

4.9 mA typ./ 6.0 mA max

4.7 mA max

4.5 mA max

2.6 µA typ./ 8.5 µA max

1.4 µA typ./ 5.5 µA max

0.6 µA typ./ 4.0 µA max

LVCMOS/HCMOS

45%/55%

1.0 nSec typ./ 2.0 nSec max

1.3 nSec typ./ 2.5 nSec max

90% of Vdd min

10% of Vdd max

70% of Vdd min

30% of Vdd max

50 kΩ min / 87 kΩ typ./ 150 kΩ max

2.0 MΩ min

5 mSec max

130 nSec max

5 mSec max

1.6 pSec typ./ 2.5 pSec max

1.8 pSec typ./ 3.0 pSec max

12 pSec typ./ 20 pSec max

14 pSec typ./ 30 pSec max,

0.5 pSec typ./ 0.8 pSec max,

1.3 pSec typ./ 2.0 pSec max,

Inclusive of Initial Tolerance, Operating Temperature Range, Load, Voltage,

and Aging

OE Disable Current

Standby Current

No load condition, F = 125 MHz, Vdd = +2.8 V, +3.0 V or +3.3 V

No load condition, F = 125 MHz, Vdd = +2.5 V

No load condition, F = 125 MHz, Vdd = +1.8 V

Vdd = +2.5 V, or +3.3 V, OE = Low, output is high Z state

Vdd = +1.8 V, OE = Low, output is high Z state

Vdd = +2.8 V to 3.3 V,

= low

Vdd = +2.5 V,

= Low

Vdd = +1.8 V,

= Low

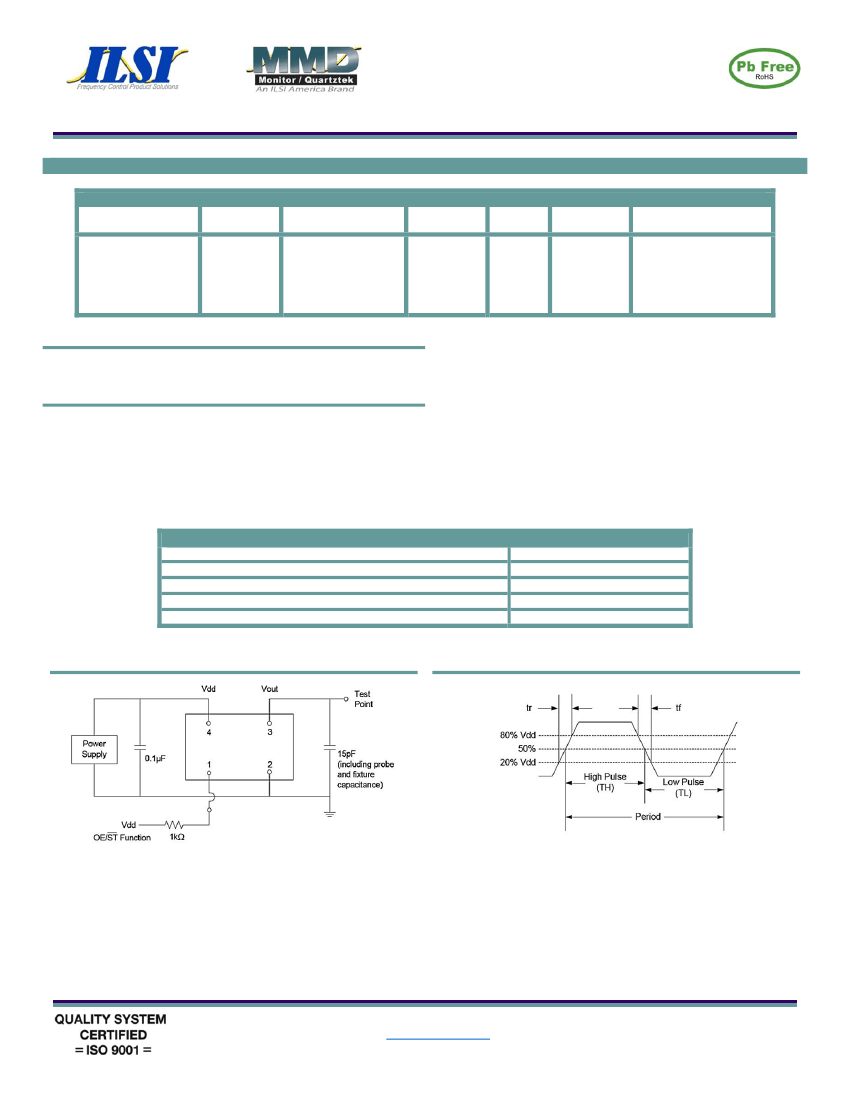

50% of waveform

Vdd = +2.5 V, +2.8 V, 3.0 V or 3.3 V from 20% to 80% of waveform

Vdd = +1.8 V, from 20% to 80% of waveform

Waveform Output

Symmetry

Rise / Fall Time

Logic “1”

Logic “0”

Input Voltage High

Input Voltage Low

Input Pull-up Impedance

Startup Time

Enable/Disable Time

Resume Time

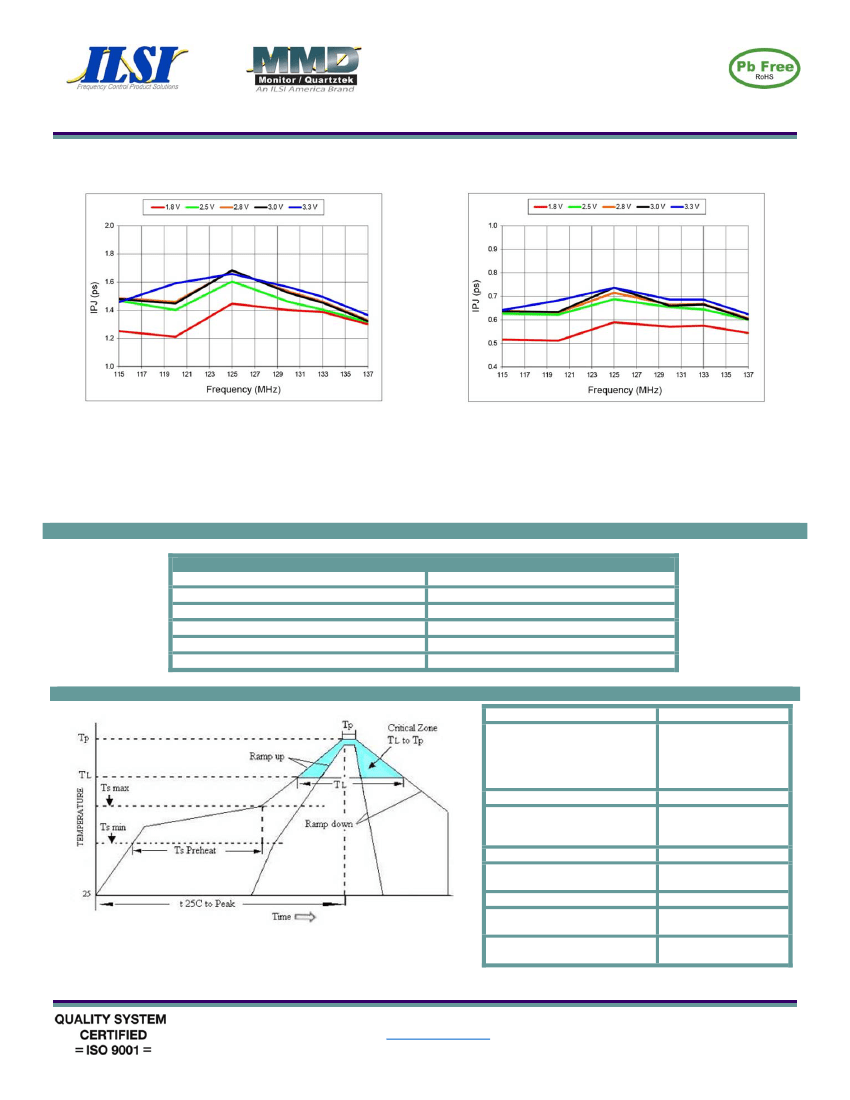

RMS Period Time

Peak-to-Peak Period Jitter

RMS Period Time (random)

Pin 1, OE or

Pin 1, OE logic high or logic low, or

logic high

Pin 1,

logic low

Measured from the time Vdd reaches its rated minimum values

F = 115.194001 MHz, For other frequencies, T_oe = 100 nSec + 3 * clock

periods

Measured from the time

pin crosses 50% threshold.

F = 125 MHz, Vdd = +2.5 V, +2.8 V, +3.0 V or +3.3 V

F = 125 MHz, Vdd = +1.8 V

F = 125 MHz, Vdd = +2.5 V, +2.8 V, +3.0 V or +3.3 V

F = 125 MHz, Vdd = +1.8 V

F = 125 MHz, Integration bandwidth = 900 kHz to 7.5 MHz

F = 125 MHz, Integration bandwidth = 12.0 kHz to 20.0 MHz

Notes:



All min and max limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.



Typical values are at +25ºC and nominal supply voltage.

ILSI America Phone 775-851-8880

●

Fax 775-851-8882

●email:

e-mail@ilsiamerica.com

●

www.ilsiamerica.com

Specifications subject to change without notice

Rev 01/30/16_A

Page 1 of 9
