KM736V599AT-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM736V599AT-10

KM736V599AT-10: DescriptionCache SRAM, 32KX36, 5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100; Categorystorage storage; File Size453KB，8 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM736V599AT-10 Overview

Cache SRAM, 32KX36, 5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100

KM736V599AT-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	LQFP, QFP100,.63X.87
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	5 ns
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
memory density	1179648 bit
Memory IC Type	CACHE SRAM
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	100
word count	32768 words
character code	32000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX36
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Encapsulate equivalent code	QFP100,.63X.87
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum standby current	0.01 A
Minimum standby current	3.14 V
Maximum slew rate	0.24 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.13 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
Base Number Matches	1

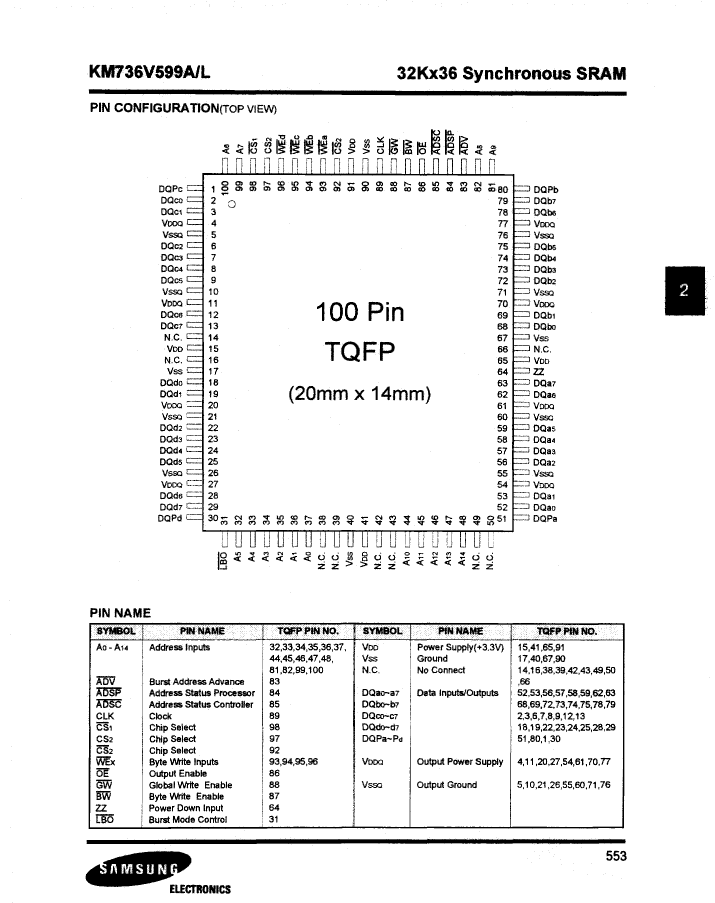

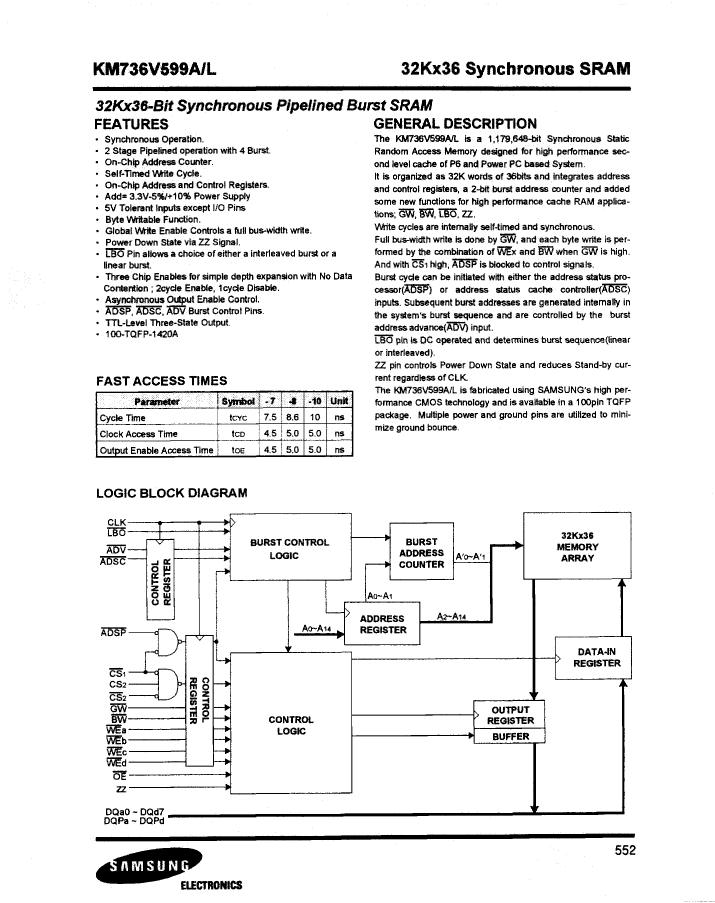

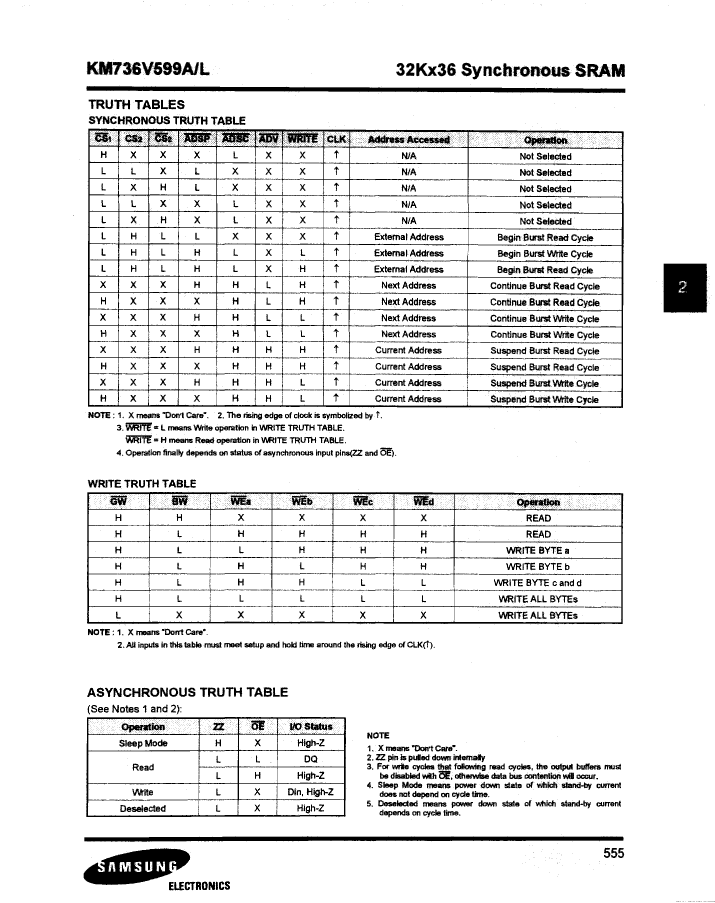

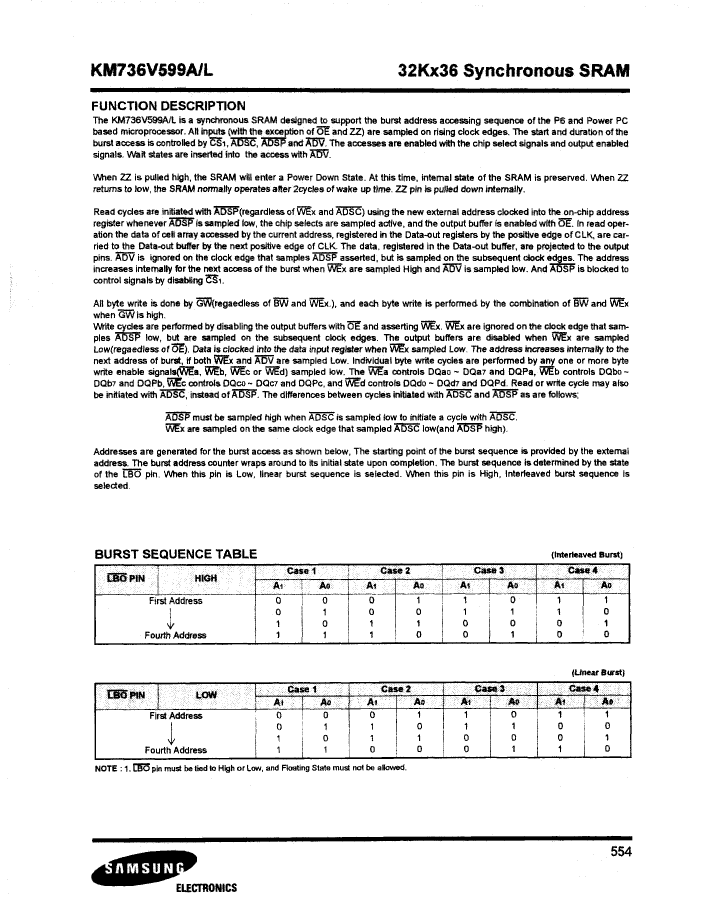

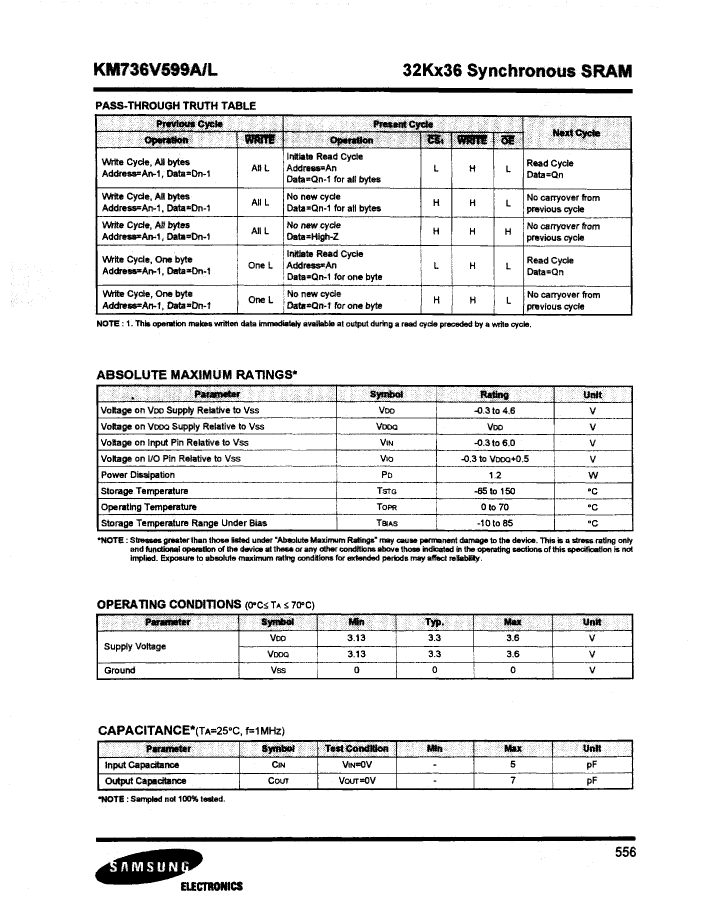

Preview

Download Datasheet

View All

KM736V599AT-10 Related Products

	KM736V599AT-10	KM736V599AT-8	KM736V599AT-7	KM736V599ALT-7	KM736V599ALT-10	KM736V599ALT-8
Description	Cache SRAM, 32KX36, 5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Cache SRAM, 32KX36, 5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Cache SRAM, 32KX36, 4.5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Cache SRAM, 32KX36, 4.5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Cache SRAM, 32KX36, 5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100	Cache SRAM, 32KX36, 5ns, CMOS, PQFP100, 20 X 14 MM, TQFP-100
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	LQFP, QFP100,.63X.87	LQFP, QFP100,.63X.87	LQFP, QFP100,.63X.87	LQFP, QFP100,.63X.87	LQFP, QFP100,.63X.87	LQFP, QFP100,.63X.87
Contacts	100	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	5 ns	5 ns	4.5 ns	4.5 ns	5 ns	5 ns
Maximum clock frequency (fCLK)	100 MHz	116 MHz	133 MHz	133 MHz	100 MHz	116 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e0	e0	e0	e0	e0
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit
Memory IC Type	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM	CACHE SRAM
memory width	36	36	36	36	36	36
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	100	100	100	100	100	100
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX36	32KX36	32KX36	32KX36	32KX36	32KX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	LQFP	LQFP	LQFP	LQFP	LQFP
Encapsulate equivalent code	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87	QFP100,.63X.87
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Maximum standby current	0.01 A	0.01 A	0.01 A	0.0005 A	0.0005 A	0.0005 A
Minimum standby current	3.14 V	3.14 V	3.14 V	3.14 V	3.14 V	3.14 V
Maximum slew rate	0.24 mA	0.26 mA	0.27 mA	0.27 mA	0.24 mA	0.26 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V	3.13 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
Maker	-	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
