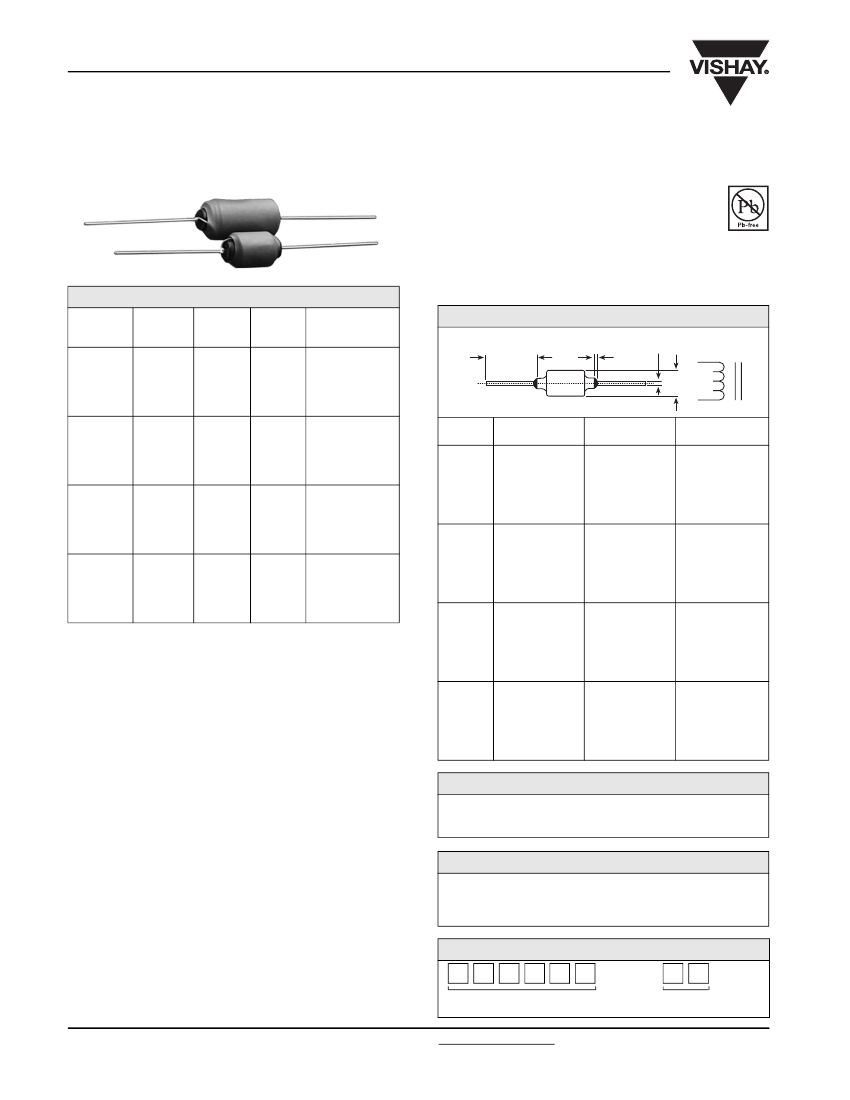

IHA
Vishay Dale
Filter Inductors
High Current
FEATURES
•
•
•
•
Printed circuit mounting (axial leads)
Pre-tinned leads
Low cost construction
Protected by polyolefin tubing - flame retardant
UL type VW-1 per MIL-I-23053/5, Class 3
requirements
RoHS
COMPLIANT
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
IHA-101
IHA-102
IHA-103
IHA-104
IHA-105
IHA-201
IHA-202
IHA-203
IHA-204
IHA-205
IHA-301
IHA-302
IHA-303
IHA-304
IHA-305
IHA-501
IHA-502
IHA-503
IHA-504
IHA-505
IND.
at 1 kHz
(µH)
50
100
250
500
1000
27
50
100
250
500
5
10
27
50
100
5
10
27
50
100
TOL.
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
± 10 %
DCR
MAX.
(Ohms)
0.120
0.160
0.280
0.420
0.600
0.060
0.085
0.120
0.200
0.320
0.015
0.021
0.040
0.050
0.070
0.010
0.015
0.030
0.040
0.060
RATED
CURRENT
(Max. Amps)
2.5
2.1
1.8
1.6
1.4
3.7
3.1
2.7
2.4
2.3
6.8
6.1
4.8
4.3
4.2
9.3
8.3
6.5
6.1
5.9
DIMENSIONS
in inches [millimeters]
1.25 [31.75]
Min. Typ.
B
Max.
0.125
[3.18]
C Typ.
A Max.
Schematic
MODEL
IHA-101
IHA-102
IHA-103
IHA-104
IHA-105
IHA-201
IHA-202
IHA-203
IHA-204
IHA-205
IHA-301
IHA-302
IHA-303
IHA-304
IHA-305
IHA-501
IHA-502
IHA-503
IHA-504
IHA-505
A
(Max.)
0.475 [12.07]
0.475 [12.07]
0.475 [12.07]
0.550 [13.97]
0.550 [13.97]
0.500 [12.70]
0.500 [12.70]
0.500 [12.70]
0.600 [15.24]
0.750 [19.05]
0.475 [12.07]
0.475 [12.07]
0.550 [13.97]
0.550 [13.97]
0.550 [13.97]
0.475 [12.07]
0.475 [12.07]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
B
(Max.)
0.800 [20.32]
0.800 [20.32]
1.050 [26.67]
1.050 [26.67]
1.175 [29.85]
0.800 [20.32]
0.800 [20.32]
0.920 [23.37]
0.920 [23.37]
1.050 [26.67]
0.800 [20.32]
0.920 [23.37]
0.800 [20.32]
0.920 [23.37]
1.175 [29.85]
1.050 [26.67]
1.050 [26.67]
1.050 [26.67]
1.050 [26.67]
1.300 [33.02]
C
± 0.002 [0.050]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.032 [0.813]
0.040 [1.02]
0.040 [1.02]
0.040 [1.02]
0.040 [1.02]
0.040 [1.02]
ELECTRICAL SPECIFICATIONS
Inductance:
Measured at 1.0 V with zero DC current
Current Rating:
Maximum continuous operating current
(DC or RMS) based on 50 °C temperature rise
Dielectric Rating:
2500 VRMS, 60 Hz, applied for one
minute between winding and outer circumference to within
0.250" [6.35 mm] of the insulation sleeve edge
Operating Temperature:
- 55 °C to + 125 °C (no load)
- 55 °C to + 75 °C (at full rated current)
MECHANICAL SPECIFICATIONS
Winding:
Layered solenoid type
Wire:
Solid soft copper
Terminals:
Tinned copper leads
Encapsulant:
Polyolefin tubing
Core Material:
Ferrite
MARKING
- Vishay Dale
- Model
- Date code
DESCRIPTION
IHA-101
e2
INDUCTANCE INDUCTANCE PACKAGE JEDEC LEAD
MODEL
(Pb)-FREE
VALUE
TOLERANCE
CODE
STANDARD
50 µH
10 %
EB
APPLICATIONS
Noise filtering for switching regulators, power amplifiers,
power supplies and SCR and Triac control circuits
GLOBAL PART NUMBER
I
H
A
1
0
1
E
B
MODEL
PACKAGE
CODE
Document Number: 34014
Revision: 18-Apr-06
www.vishay.com
38
For technical questions contact magnetics@vishay.com
