61305421021TPK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 61305421021TPK

61305421021TPK: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size687KB，2 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

61305421021TPK Overview

Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

61305421021TPK Parametric

Parameter Name	Attribute value
Maker	Wurth Elektronik
Reach Compliance Code	compliant
body width	0.2 inch
subject depth	0.259 inch
body length	2.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	6130
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	54
Base Number Matches	1

Preview

Download Datasheet

View All

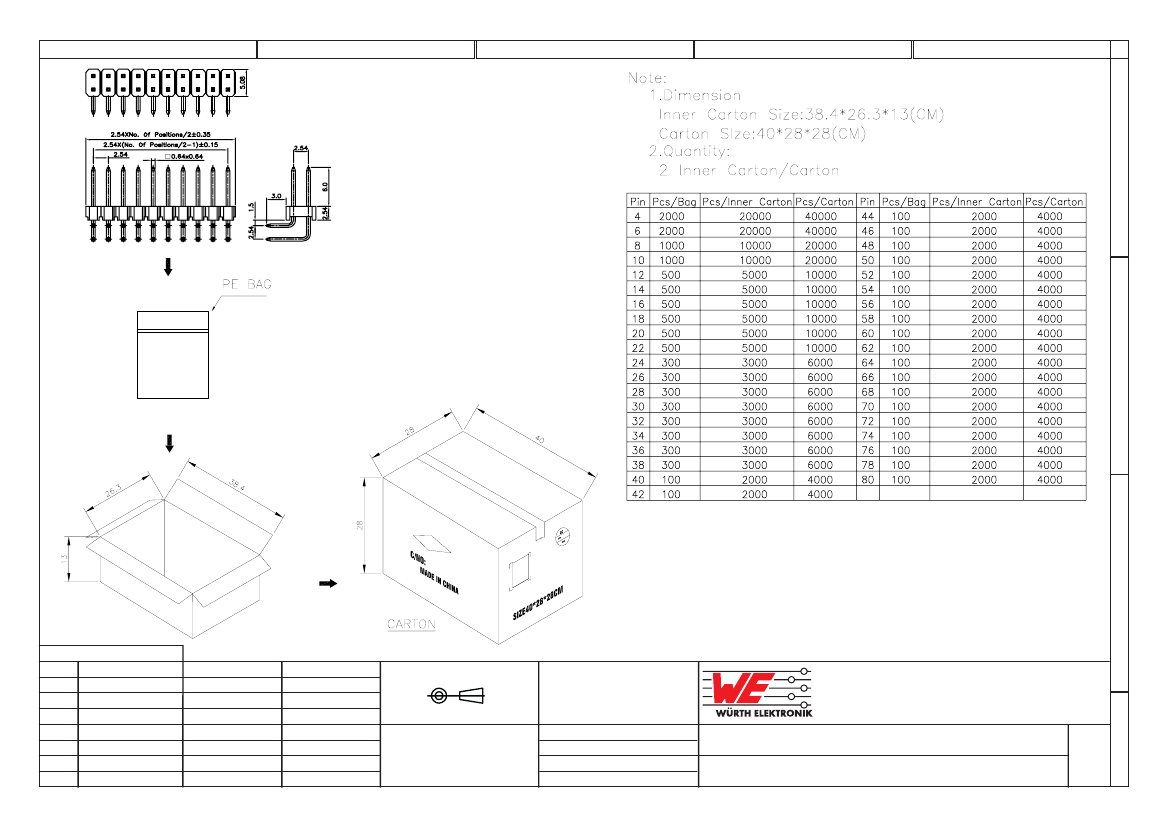

2.54x(No. of positions/2)±0.3

2.54x(No. of positions/2-1)

2.54±0.05

0.64±0.05

5.08

2.54

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PBT

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: GOLD

QUALITY CLASS: 3 AS PER CECC 75 301-802

PITCH: 2.54MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 125°C

FLAMABILITY RATING: UL94-V0

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3A

WORKING VOLTAGE: 250V AC

INSULATOR RESISTANCE: >1000 mOHM

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC/MN

CONTACT RESISTANCE: 20 mOHM MAX

SOLDERING

WAVE PROCESS ONLY

PACKAGING

BAG

DIMENSION

A= 2.54 x (NB. PIN / 2-1)

B= 2.54 x (NB. PIN / 2)

3.0

1.5

2.54

6.0

2.54x(No. of positions/2-1)

2.54

ø1.10

2.54

RoHS Compliant

REV

12-JUL-10

08-JUL-10

23-NOV-07

07-DEC-06

29-MAR-04

15-MAR-04

08-APR-13

DATE

DIMENSION

FILE

UPDATE

PACKAGING

MODIFICATIONS

DRAW

LEAD FREE

APPROVAL: RJ

SCALE:

SHEET: 1/2

DRAW: PEARL

WERI PART NO: 6130xx 21021

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

UNIT: MM

DESCRIPTION: 2.54MM ANGLED DUAL PIN HEADER

SIZE
