HKP-28M2WT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> HKP-28M2WT

Preview

HKP-28M2WT: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

HKP-28M2WT Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

HKP-28M2WT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

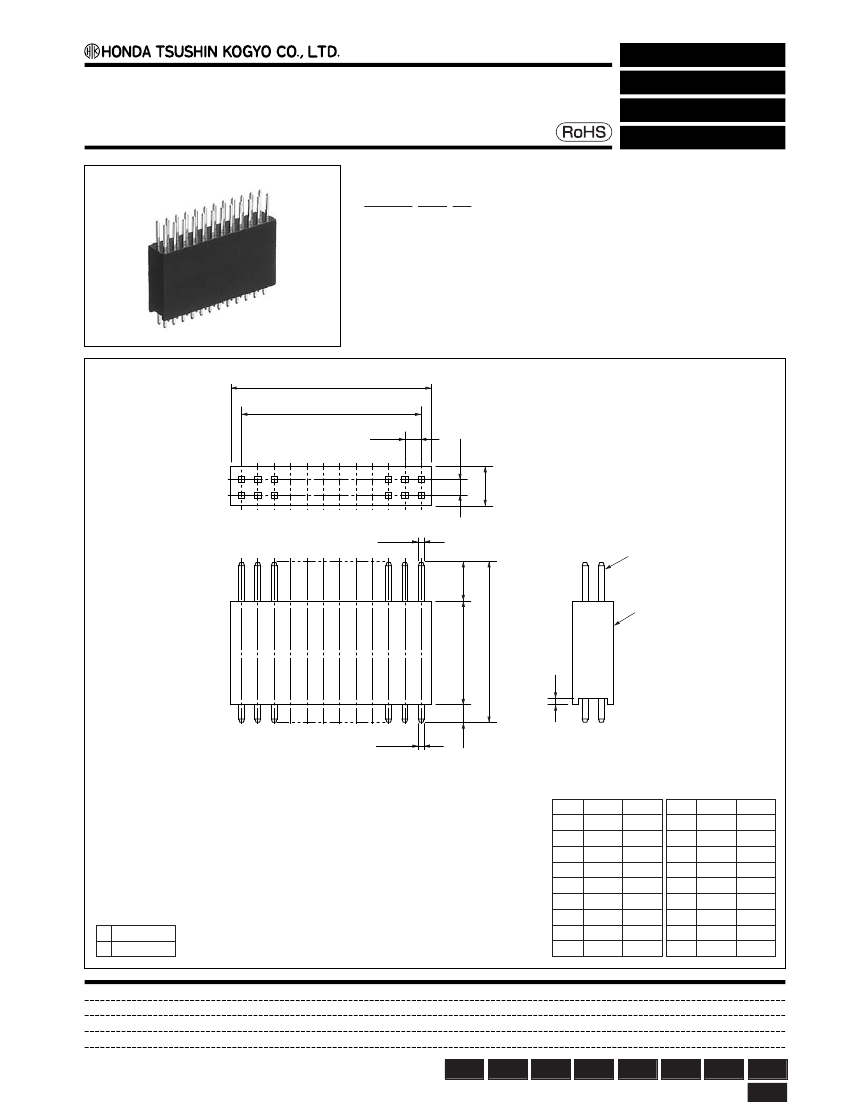

2.54 mm pitch connector

Straight through hole type male connector for PCB

HKP-( )M2WT

●

Configuration of product Part No.

For PCB

Straight Through hole

HKP- ( ) M2WT

➀

➁

➂

➀

Series name

➁

No. of contacts:

4–36

➂

Type of contact

M: Male

B

A

2.54

œ0.635

6

➁

6

➀

16.3

25

œ0.635

2.7

1

●

Dimensions

No. of

contacts

4

6

8

10

12

14

A

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

B

5.68

8.22

10.76

13.30

15.84

18.38

20.92

23.46

26.00

No. of

contacts

22

24

26

28

30

32

34

36

38

A

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

B

28.54

31.08

33.62

36.16

38.70

41.24

43.78

46.32

48.86

●

Components

➀

Insulator

➁

Contact

16

18

20

Mating connectors:

HKP series double-row type female connector

DIC series

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole
