5962F9854001VRX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9854001VRX

5962F9854001VRX: DescriptionAC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20; Categorylogic logic; File Size47KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9854001VRX Overview

AC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20

5962F9854001VRX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDIP-T20
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	300k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

ACS240MS

March 1998

Radiation Hardened

Inverting, Octal, Three-State Buffer/Line Driver

Description

The Radiation Hardened ACS240MS is an Inverting, Octal,

Three-State Buffer/Line Driver with two active-LOW Enable

inputs (AE and BE). Each Enable input controls four outputs.

When an Enable input is LOW, the corresponding outputs

are active and input signals are inverted. A HIGH on an

Enable input causes the corresponding outputs to be high

impedance, regardless of the input levels.

The ACS240MS is fabricated on a CMOS Silicon on Sap-

phire (SOS) process, which provides an immunity to Single

Event Latch-up and the capability of highly reliable perfor-

mance in any radiation environment. These devices offer

signiﬁcant power reduction and faster performance when

compared to ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS240 are

contained in SMD 5962-98540. A “hot-link” is provided

on our homepage with instructions for downloading.

http://www.intersil.com/data/sm/index.htm

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-up Free Under any Conditions

- Total Dose . . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels V

= (0.3V)(V

), V

= (0.7V)(V

)

• Output Current

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±16mA

• Quiescent Supply Current. . . . . . . . . . . . . . . . . . . .20µA

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . . . . 11.5ns

Applications

• Databus Driving

• Data Routing

• Redundant Data Control Circuitry

Ordering Information

SMD PART NUMBER

5962F9854001VRC

N/A

5962F9854001VXC

N/A

INTERSIL PART NUMBER

ACS240DMSR-02

ACS240D/Sample-02

ACS240KMSR-02

ACS240K/Sample-02

ACS240HMSR-02

TEMP. RANGE (

-55 to 125

PACKAGE

20 Ld SBDIP

20 Ld Flatpack

Die

CASE OUTLINE

CDIP2-T20

CDFP4-F20

N/A

Pinouts

ACS240 (SBDIP)

TOP VIEW

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

20 V

19 BE

18 AO1

17 BI4

16 AO2

15 BI3

14 AO3

13 BI2

12 AO4

11 BI1

AI1

BO4

AI2

BO3

AI3

BO2

AI4

BO1

GND

ACS240 (FLATPACK)

TOP VIEW

AO1

BI4

AO2

BI3

AO3

BI2

AO4

BI1

GND 10

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

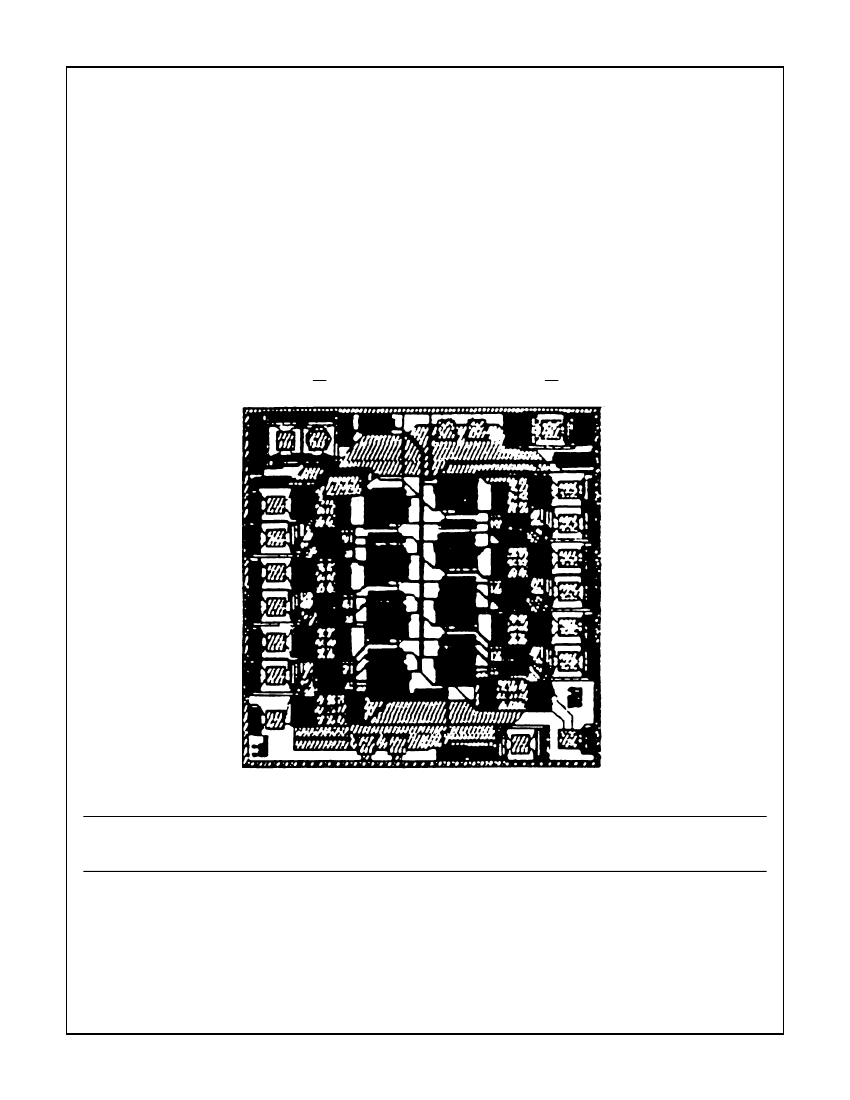

File Number

4478

5962F9854001VRX Related Products

	5962F9854001VRX	5962F9854001VXX
Description	AC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, CERAMIC, DIP-20	AC SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20
Parts packaging code	DIP	DFP
package instruction	DIP,	DFP,
Contacts	20	20
Reach Compliance Code	unknown	unknown
series	AC	AC
JESD-30 code	R-CDIP-T20	R-CDFP-F20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	4	4
Number of functions	2	2
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
propagation delay (tpd)	10 ns	10 ns
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V
Base Number Matches	1	1
