54F657/BLA datasheet, PDF - EEWORLD Datasheet

54F657/BLA: DescriptionBus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24; Categorylogic logic; File Size227KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

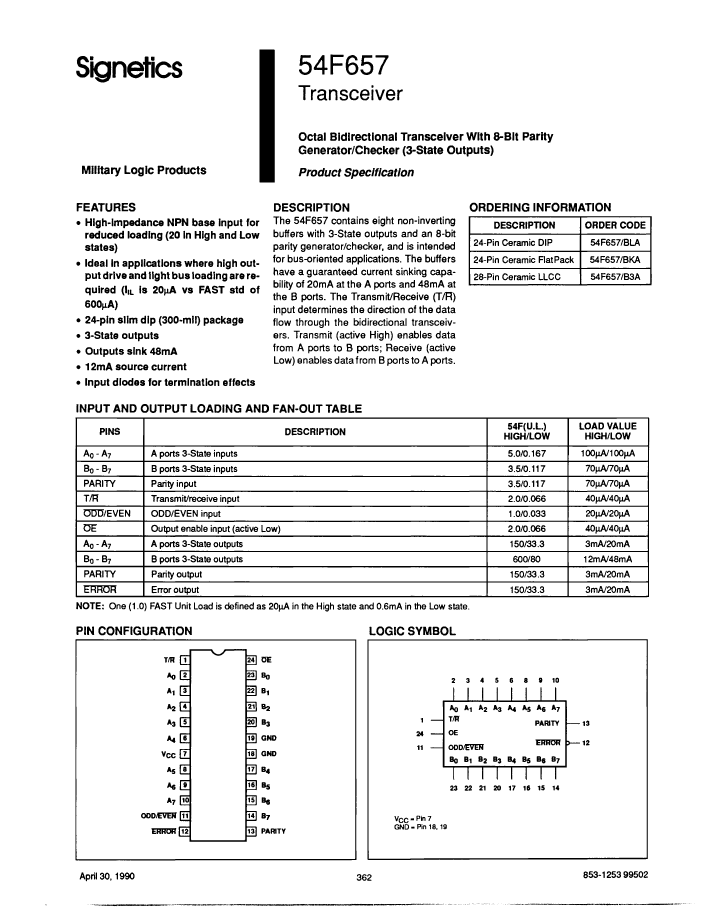

54F657/BLA Overview

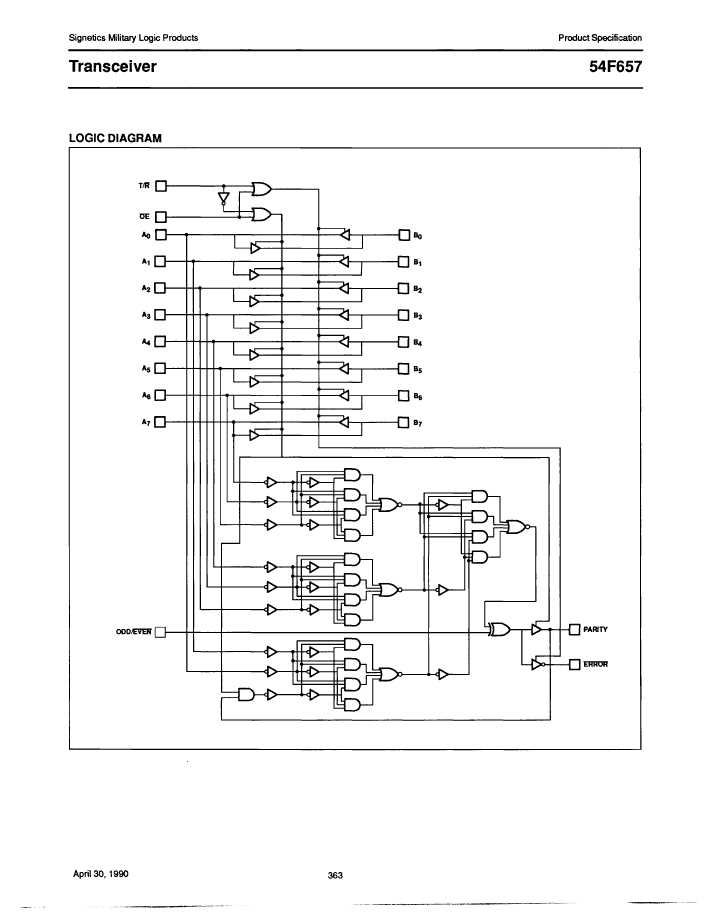

Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	F/FAST
JESD-30 code	R-CDIP-T24
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24

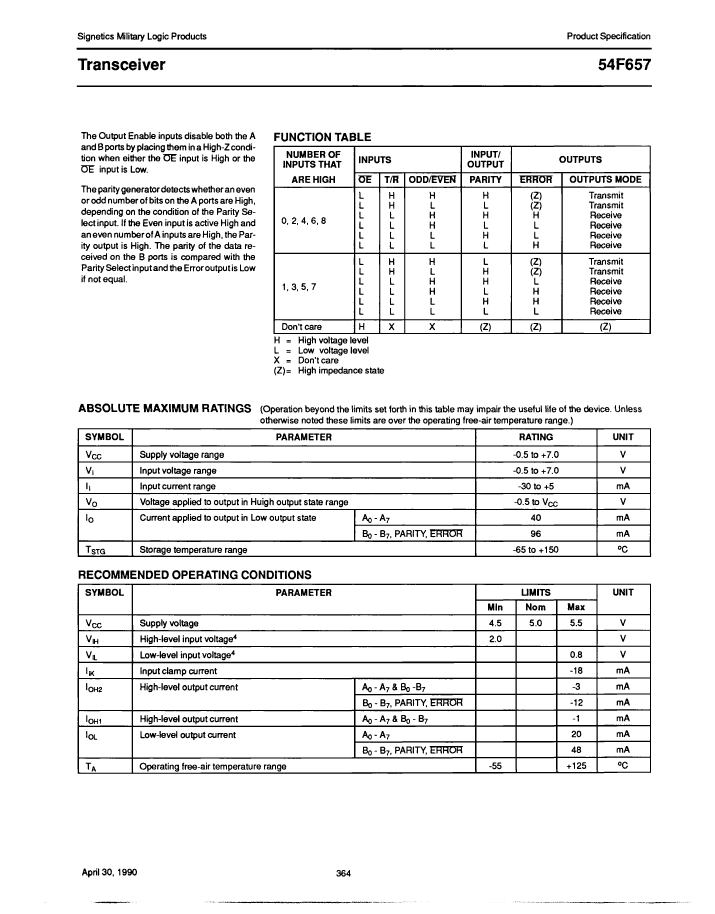

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE

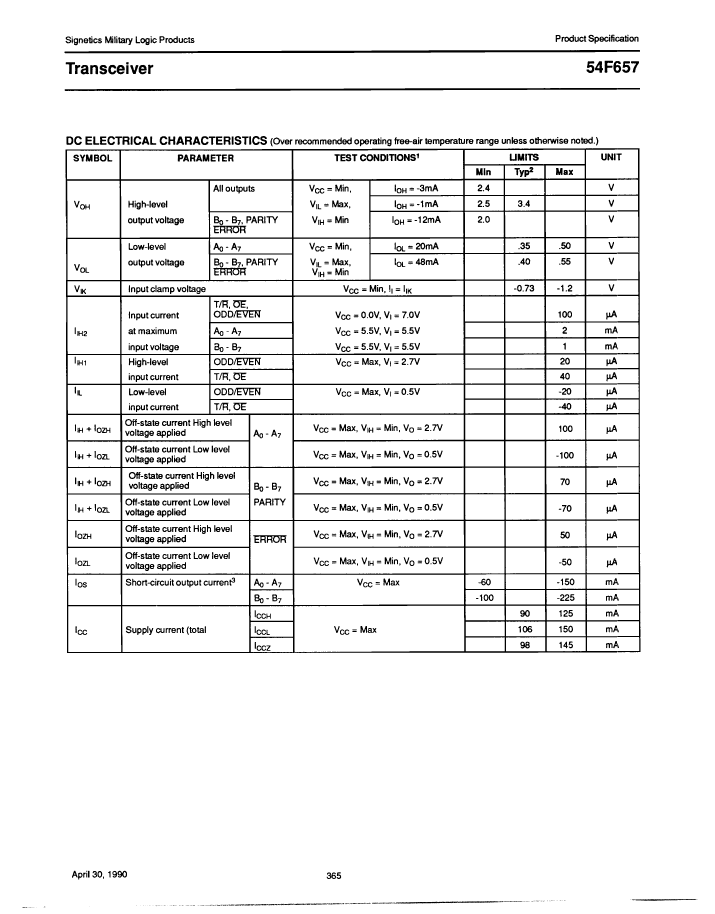

Maximum supply current (ICC)	150 mA

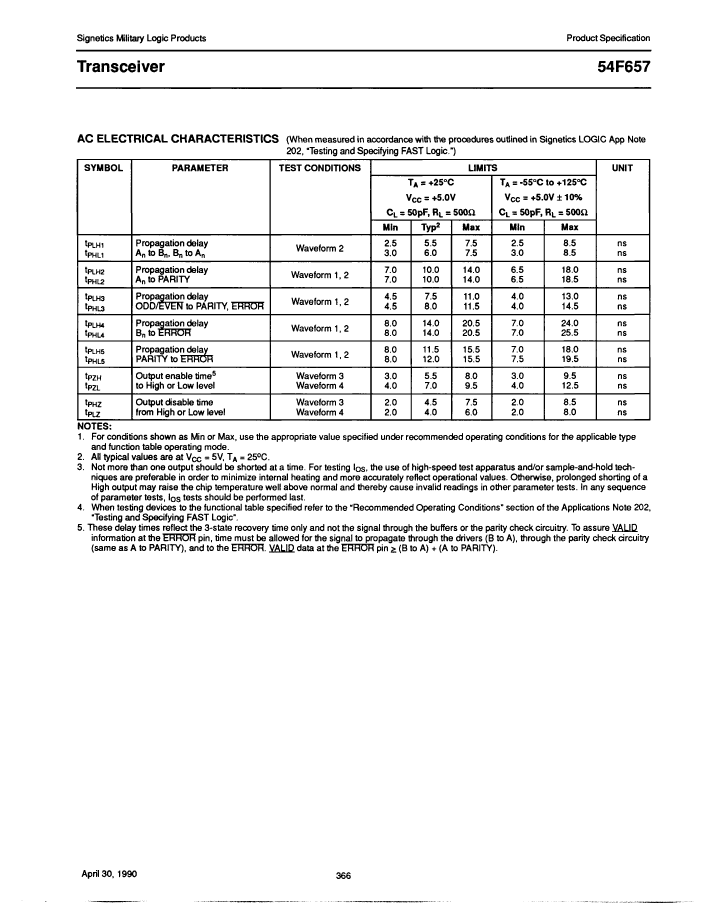

propagation delay (tpd)	8.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	54F657/BLA	54F657/BKA	54F657/B3A
Description	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP24,	Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC28,
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDIP-T24	R-CDFP-F24	S-CQCC-N28
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	24	24	28
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Maximum supply current (ICC)	150 mA	150 mA	150 mA
propagation delay (tpd)	8.5 ns	8.5 ns	8.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
