54FCT240LB datasheet, PDF - EEWORLD Datasheet

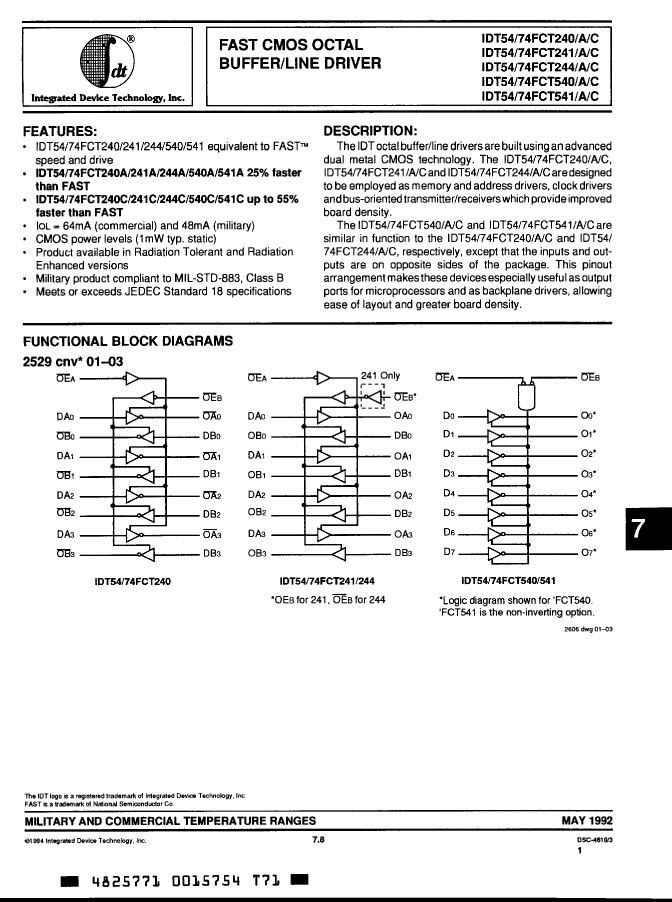

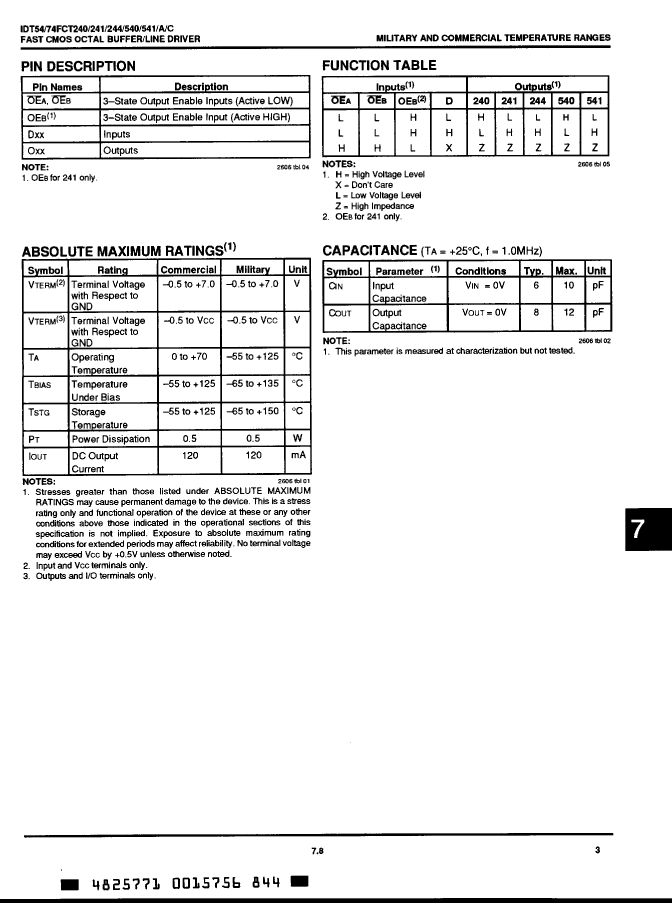

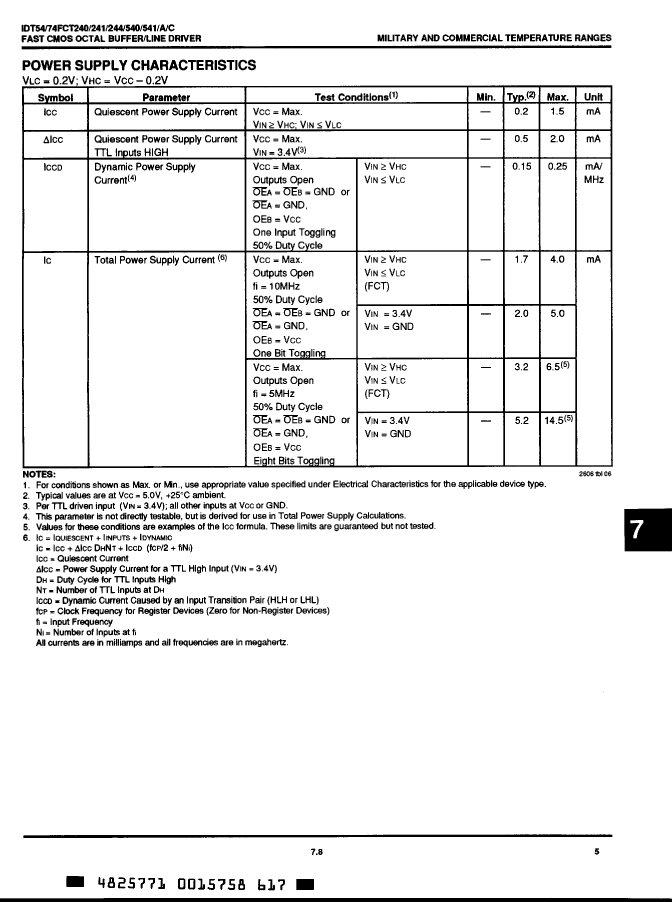

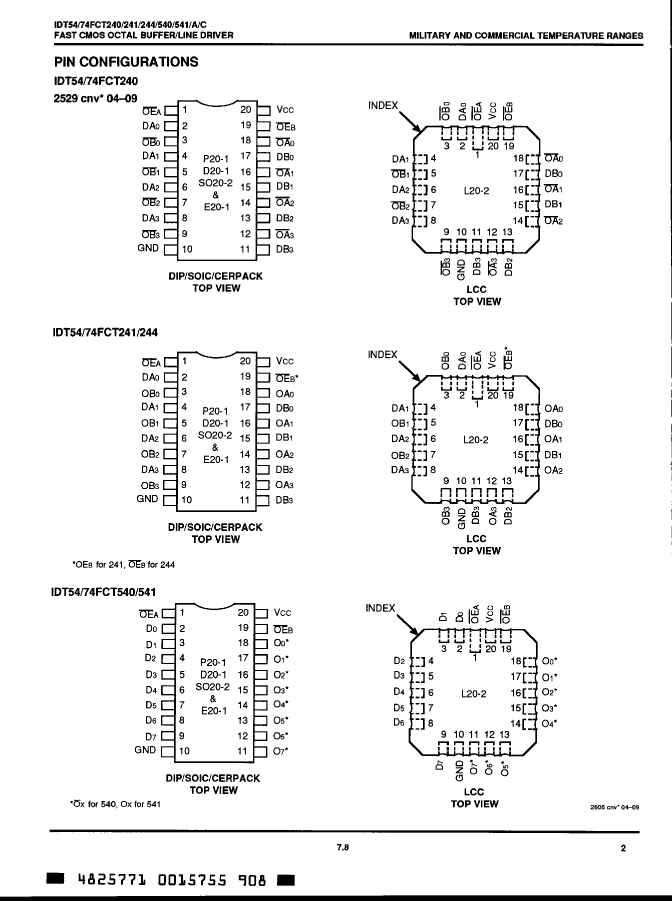

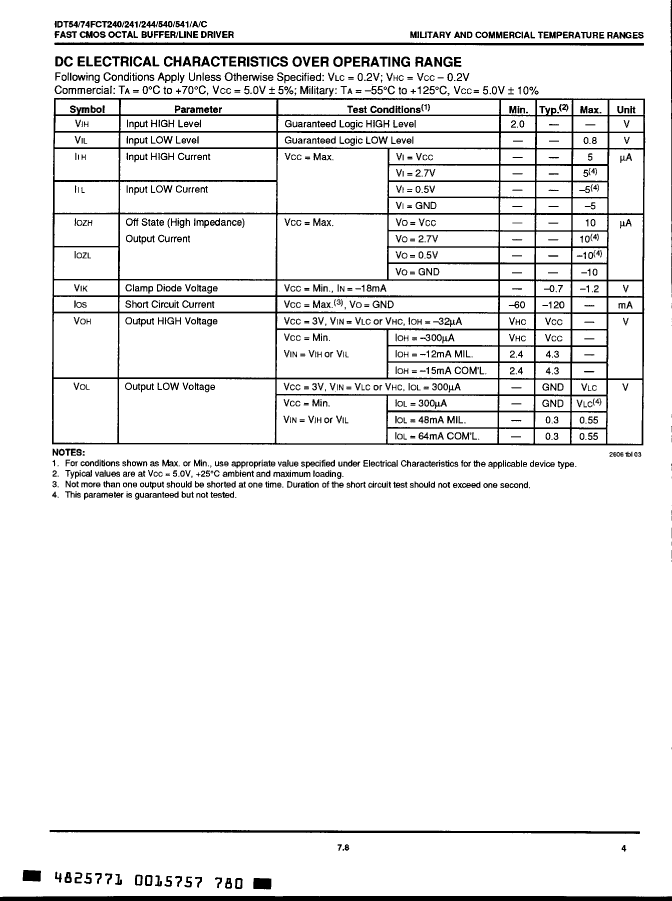

54FCT240LB: DescriptionLCC-20, Tube; Categorylogic logic; File Size395KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

54FCT240LB Overview

LCC-20, Tube

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	LCC
package instruction	LCC-20
Contacts	20
Manufacturer packaging code	LC20
Reach Compliance Code	not_compliant
Other features	IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V
Control type	ENABLE LOW
series	FCT
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Humidity sensitivity level	1
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Prop。Delay @ Nom-Sup	9 ns
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1
