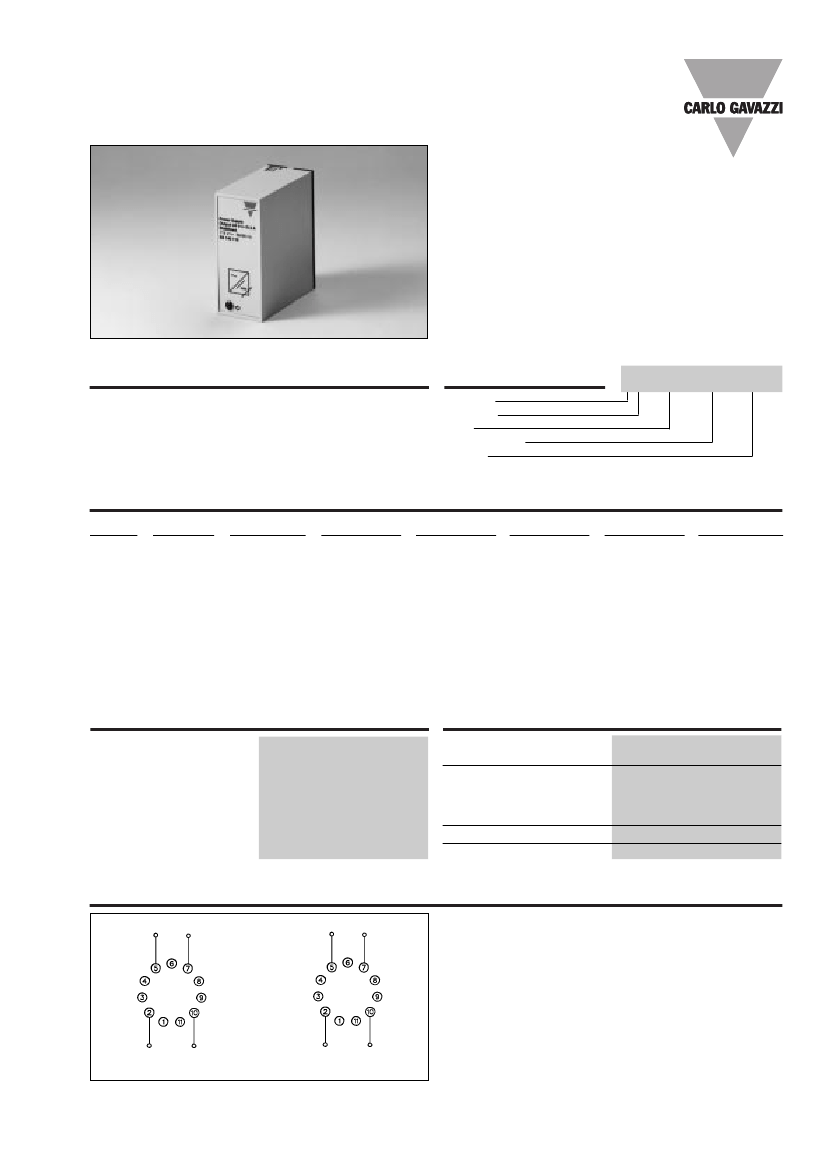

General Accessories
Power Supply Units
Types SS 110, SS 120, SS 130, SS 140
• Insulation: 4 kV rms/8 mm
• LED-indication for power supply ON
• S-housing
• Power supply: 115 or 230 VAC
• Output: 24 V/12 VAC, 0.5 to 1 A
24 V/12 VDC, 0.3 to 1 A
Product Description
For mounting on an 11-pole
circular socket. Used together
with the whole timer program
as supply where 12 VAC/DC
or 24 VDC is needed.
Ordering Key
Housing
Function
Type
Power supply
Output
SS 110 230 12
Type Selection
Supply
115 VAC
230 VAC
115 VAC
230 VAC
115 VAC
230 VAC
115 VAC
230 VAC
Regulated
No
No
No
No
No
No
Yes
Yes
Short-circuit
Protection
Protection
Protection
Protection
Protection
Protection
Protection
Protection
12 VAC/1 A
SS 110 115 12
SS 110 230 12
SS 120 115 12
SS 120 230 12
SS 130 115 12
SS 130 230 12
SS 140 115 12
SS 140 230 12
SS 130 115 24**
SS 130 230 24**
SS 140 115 24**
SS 140 230 24**
12 VDC/1 A
12 VDC/0.5 A
24 VAC/0.3 A
SS 110 115 24*
SS 110 230 24*
SS 120 115 24
SS 120 230 24
24 VDC/0.5 A
Note:
*AC output 0.5 A
**DC output 0.3 A
Supply Specifications
Power supply AC types
Rated operational voltage
through pins 2 & 10 230
115
Dropout tolerance
Rated insulation voltage
Rated transient protection volt.
Installation cat. III (IEC 60664)
230 VAC ± 15%, 45 to 65 Hz
115 VAC ± 15%, 45 to 65 Hz
≥
40 ms
≥
2.0 kVAC (rms) (supply/elec.)
4 kV (1.2/50 ms) (line/neutral)
General Specifications
Indication for
Power supply ON
Environment
Pollution degree
Operating temperature
Storage temperature
Weight
CE-marking
LED, green
IP 20 B
2 (IEC 60664)
-20 to +50°C (-4 to +122°F)
-50 to +85°C (-58 to +185°F)
500 g
Yes
Wiring Diagrams
AC output
~
DC output
+
-
Note:
It is recommended always to use a hold down spring type HF.
Power supply
SS 110, SS 120, SS 130, SS 140
Power supply
SS 110, SS 120, SS 130, SS 140
Specifications are subject to change without notice (25.06.99)
