5-1761204-3 datasheet, PDF - EEWORLD Datasheet

5-1761204-3: DescriptionCONNECTOR, 8 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

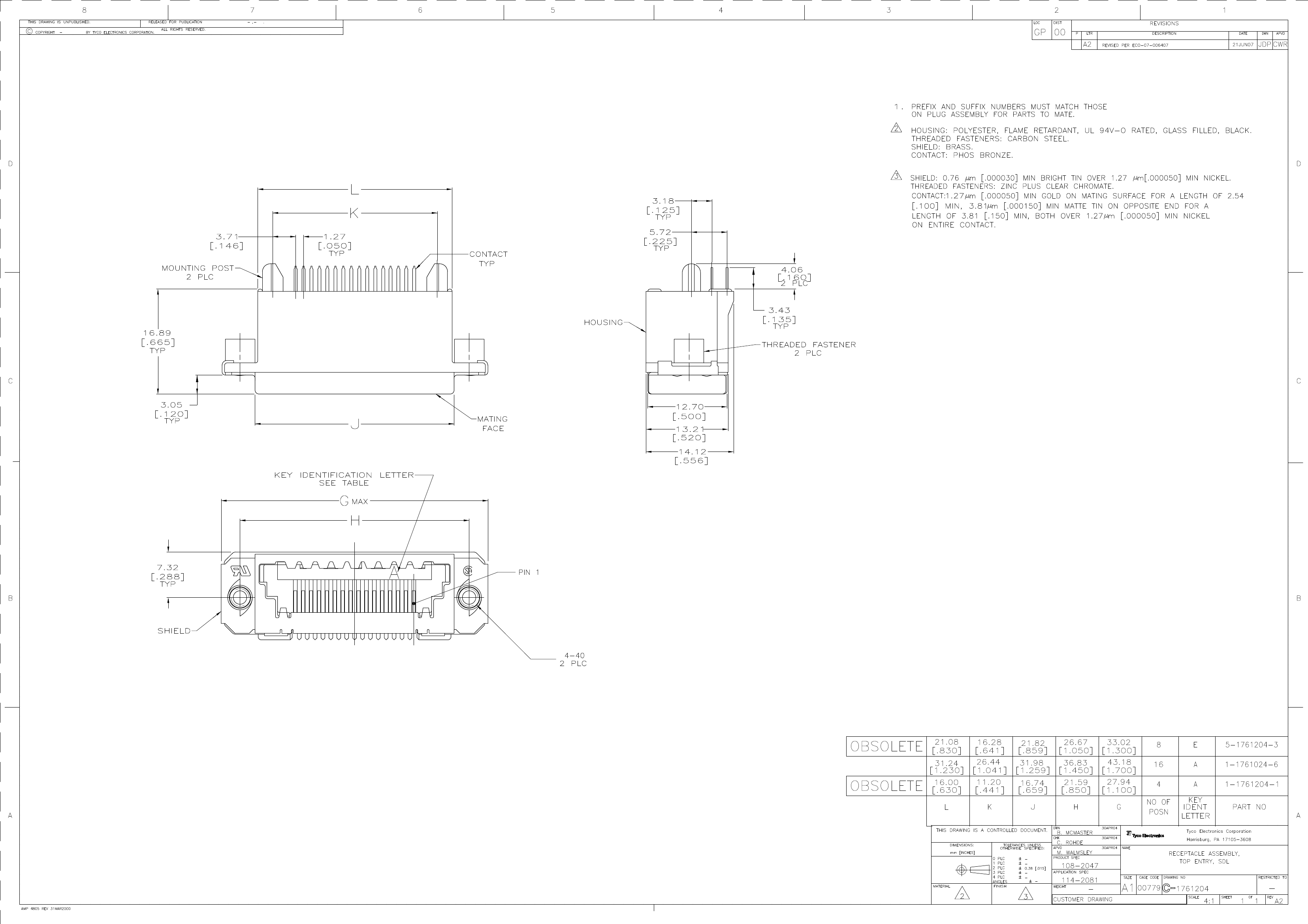

5-1761204-3 Overview

CONNECTOR, 8 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2064575156
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.556 inch
subject depth	0.665 inch
body length	1.3 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	TELCOM, MODULAR
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of ports	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Shell surface	TIN
Shell material	BRASS
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

	5-1761204-3	SMDT0402BBBY8251N	SMDT0402BBOY2641
Description	CONNECTOR, 8 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, RECEPTACLE	Fixed Resistor, Thin Film, 0.0625W, 8250ohm, 25V, 0.1% +/-Tol, 10ppm/Cel, Surface Mount, 0402, CHIP	Fixed Resistor, Thin Film, 0.0625W, 2640ohm, 25V, 0.1% +/-Tol, 3ppm/Cel, Surface Mount, 0402, CHIP
Is it Rohs certified?	conform to	conform to	conform to
Objectid	2064575156	145059043517	145059274867
Reach Compliance Code	unknown	compliant	compliant
JESD-609 code	e3	e3	e3
package instruction	-	CHIP	CHIP
ECCN code	-	EAR99	EAR99
Other features	-	PRECISION	PRECISION
structure	-	Rectangular	Rectangular
Installation features	-	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	-	2	2
Maximum operating temperature	-	155 °C	155 °C
Minimum operating temperature	-	-55 °C	-55 °C
Package height	-	0.3 mm	0.3 mm
Package length	-	1 mm	1 mm
Package form	-	SMT	SMT
Package width	-	0.5 mm	0.5 mm
method of packing	-	BULK	BULK
Rated power dissipation(P)	-	0.0625 W	0.0625 W
Rated temperature	-	70 °C	70 °C
resistance	-	8250 Ω	2640 Ω
Resistor type	-	FIXED RESISTOR	FIXED RESISTOR
size code	-	0402	0402
surface mount	-	YES	YES
technology	-	THIN FILM	THIN FILM
Temperature Coefficient	-	10 ppm/°C	3 ppm/°C
Terminal surface	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	-	WRAPAROUND	WRAPAROUND
Tolerance	-	0.1%	0.1%
Operating Voltage	-	25 V	25 V
