54ACT32DM datasheet, PDF - EEWORLD Datasheet

54ACT32DM: DescriptionOR Gate, ACT Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size289KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

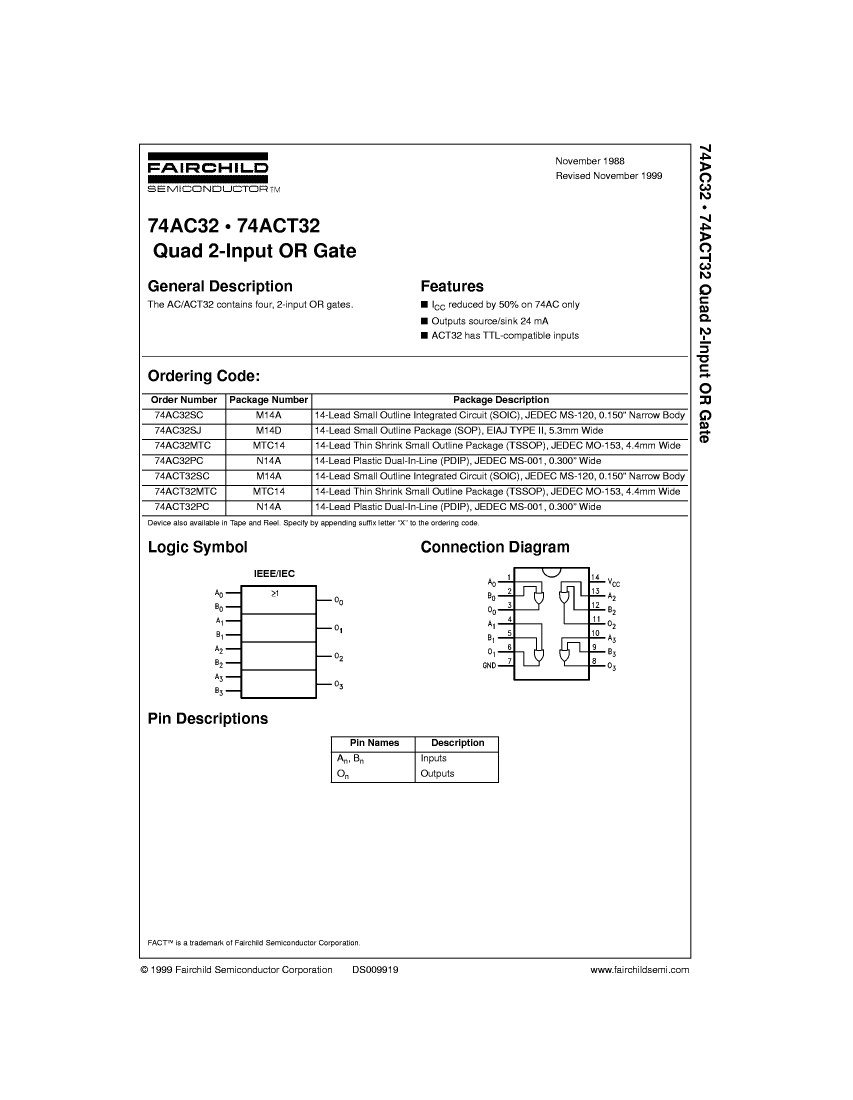

54ACT32DM Overview

OR Gate, ACT Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-GDIP-T14

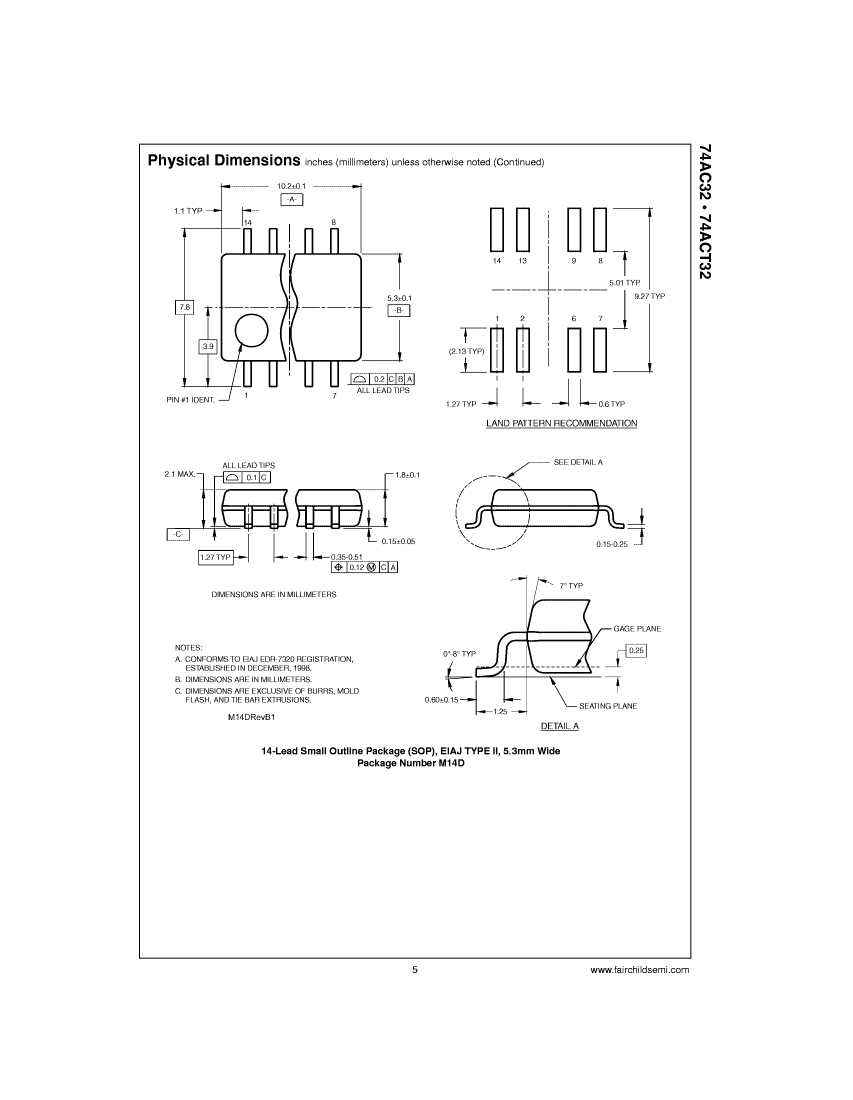

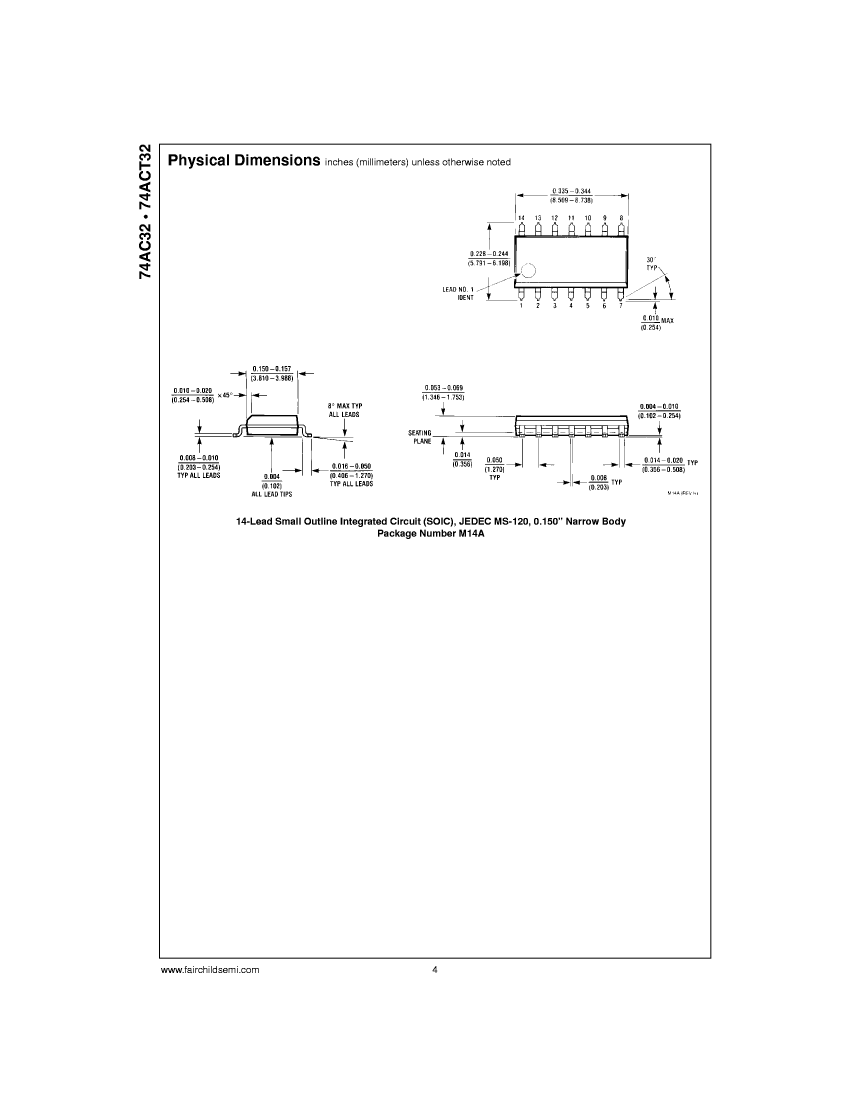

length	19.43 mm
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14

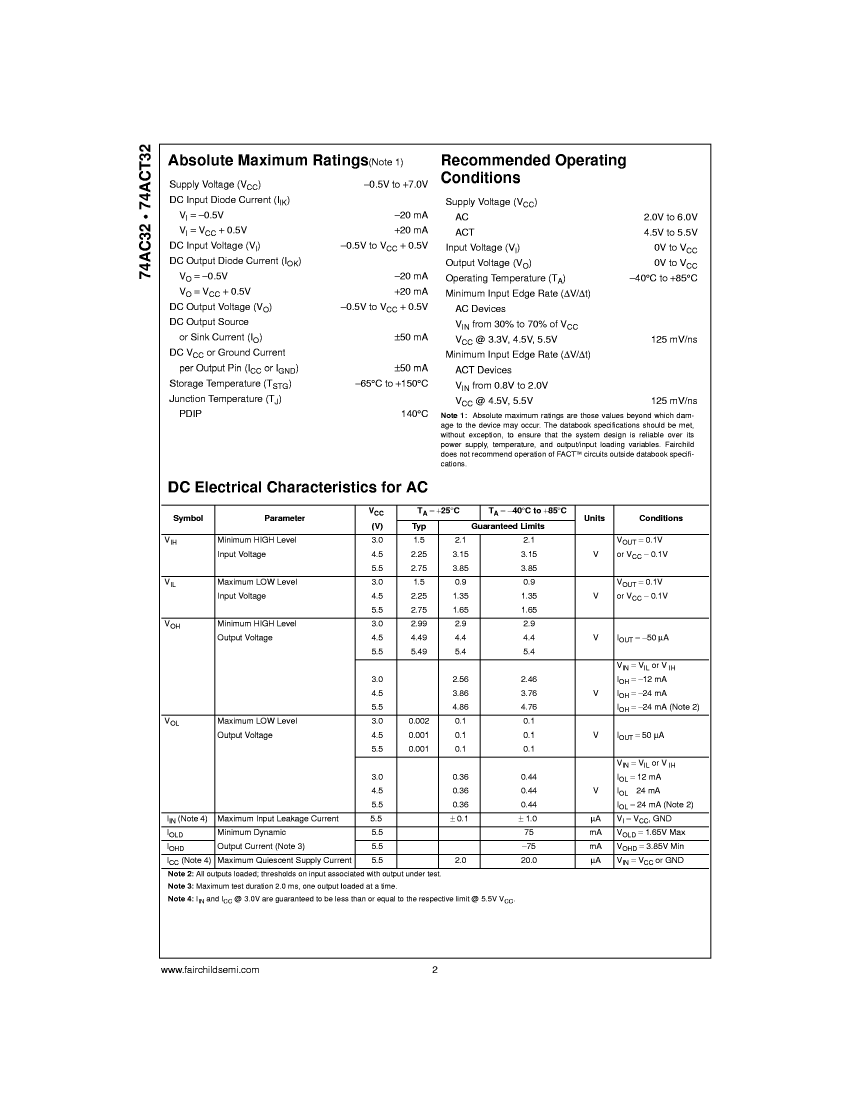

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm

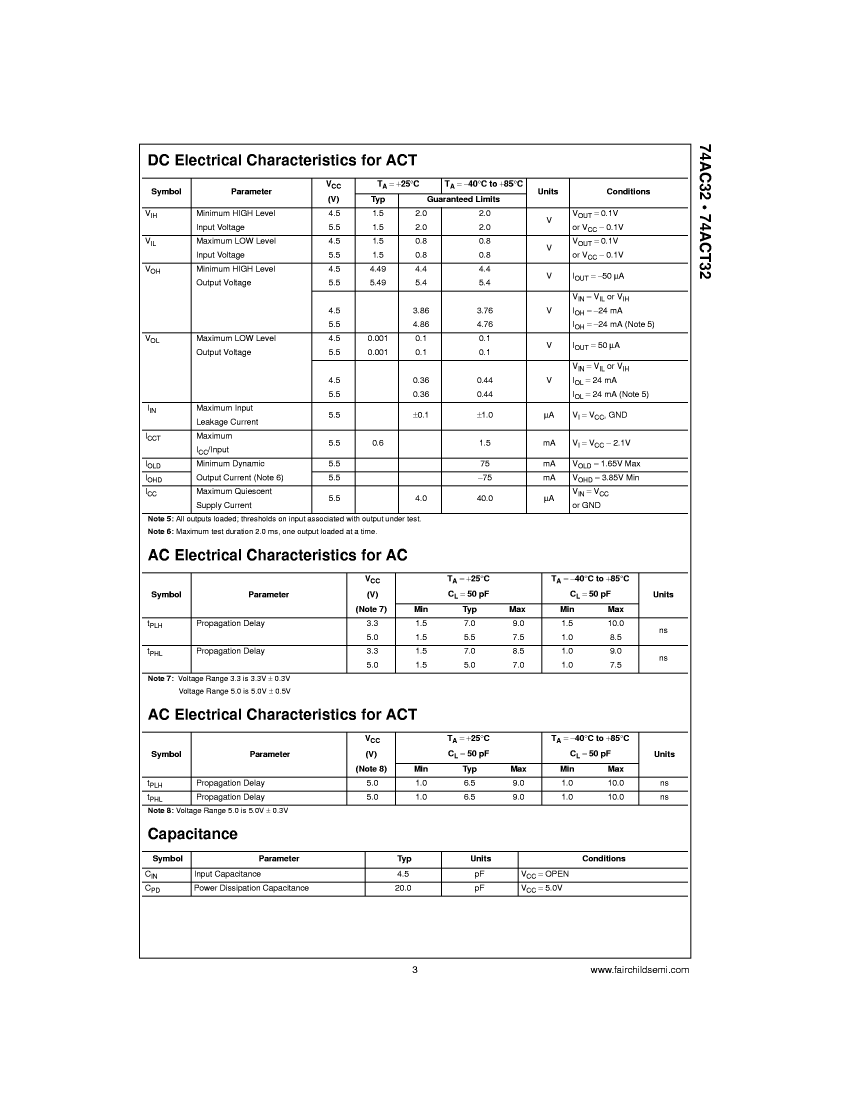

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	54ACT32DM	74AC32DC
Description	OR Gate, ACT Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14	OR Gate, AC Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
series	ACT	AC
JESD-30 code	R-GDIP-T14	R-GDIP-T14
length	19.43 mm	19.43 mm
Logic integrated circuit type	OR GATE	OR GATE
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
