MX-826
Precision, High-Speed 8-Channel Analog Multiplexers
FEATURES
170ns maximum settling time to ±0.1%
225ns maximum settling time to ±0.01%
400ns maximum settling time to ±0.003%
Channels single-ended inputs
8
395mW power dissipation
Small, 24-pin DDIP package
PRODUCT OVERVIEW
The MX-826 is a precision, high-speed multiplexer
characterized for 10, 12 and 14-bit applications. The
performance benchmarks are its 225 nanoseconds
maximum settling time to ±0.01% accuracy and its
unprecedented specification of accuracy to ±0.003%.
The MX-826 provides eight single-ended inputs.
Channel addressing is done by a three-bit binary code
and break-before-make switching assures that no
two channels are ever momentarily shorted together.
The MX-826 operates from ±15V and +5V power
supplies. Models are available in two operating
temperature ranges: 0 to +70°C and –55 to
+125°C. MIL-STD-883 screening is optional.

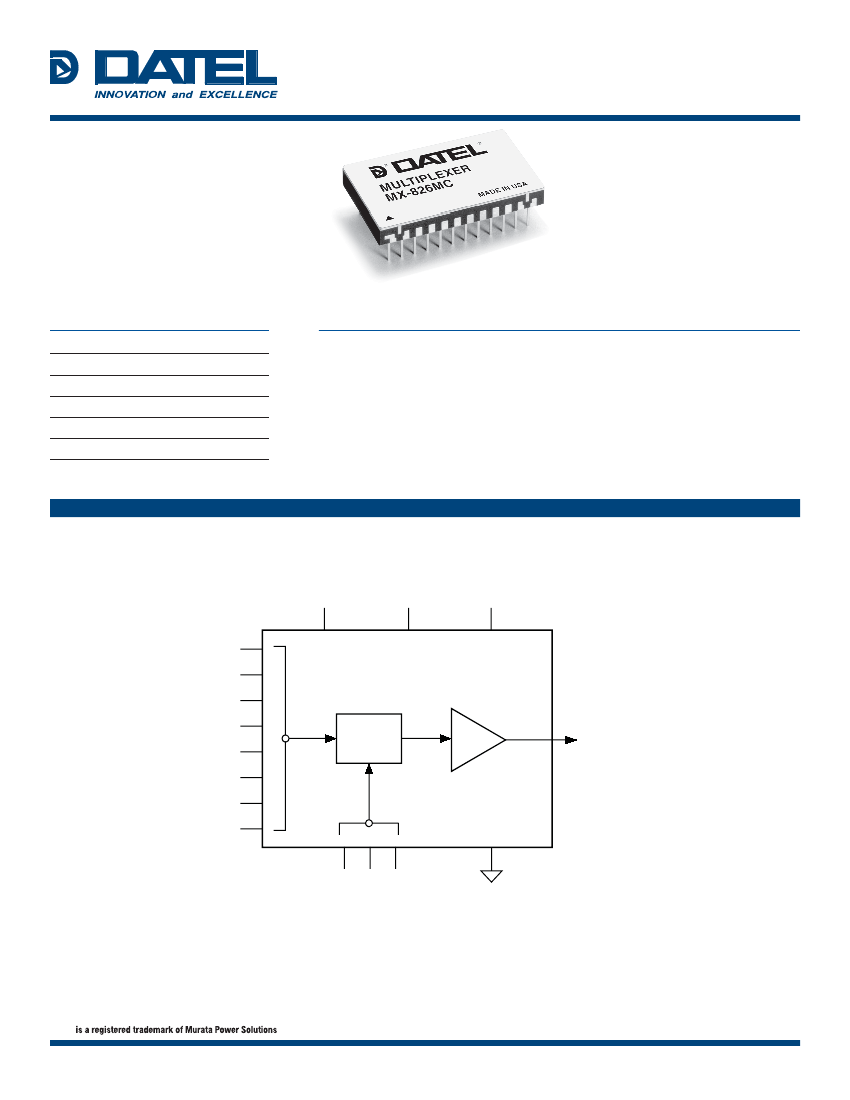

FUNCTIONAL BLOCK DIAGRAM
15V
SUPPLY
19
+5V
SUPPLY
24
+15V
SUPPLY
16
4
5
6
ANALOG
INPUTS
7
8
9
10
11
MUX
–1
13 OUTPUT
1 2 3
CHANNEL
ADDRESS
12, 17, 18, 23
DATEL
•
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA
•
Tel: (508) 339-3000
•
www.datel.com
•
e-mail: help@datel.com
MDA_MX826_A02
Page 1 of 6
®
®
MX-826
Precision, High-Speed 8-Channel Analog Multiplexers
Units
Volts
Volts
Volts
Volts
Volts
°C
Performance
Harmonic Distortion
DC to 500kHz, 10Vp-p
Signal-to-Noise Ratio
With Distortion
Without Distoration
Power Requirements
Range
+15V Supply
–15V Supply
+5V Supply
Current
(Quiescent)
+15V Supply
–15V Supply
+5V Supply
Power Supply Rejection Ratio
Power Dissipation
Physical Environmental
Operating Temp. Range, case
MC Model
MM Model
Storage Temp. Range
Package Type
Weight
0
–55
–65
–
–
–
+70
+125
+150
°C
°C
°C
+14.5
–14.5
+4.75
–
–
–
82
–
+15
–15
+5
+13
–13
<1
–
395
+15.5
–15.5
+5.25
+21
–21
+1
–
575
Volts
Volts
Volts
mA
mA
mA
dB
mW
–
–
–
–90
72
80
–80
69
75
dB
dB
dB
ABSOLUTE MAXIMUM RATINGS
Parameters
+15V Supply
(Pin 16)
–15V Supply
(Pin 19)
+5V Supply
(Pin 24)
Digital Input
(Pin 1, 2, 3)
Analog Input (Pin 4-11)
Lead Temperature
(10s)
Short Circuit to Ground
(Pin 13)
Limits
0 to +18
0 to –18
–0.5 to +7
–0.3 to +5.5
–15 to +15
300
Continuous
FUNCTIONAL SPECIFICATIONS
(Apply over the operating temperature range and over the operating power supply
range unless otherwise specified.)
Input
Input Voltage Range
Digital Input, Logic Levels
Logic 1
Logic 0
Logic Loading
Logic 1
Logic 0
Outputs
Output Range
Output Current
Stable Capacitive Load
Output Impedance DC
Performance
Gain
Gain Error,
25°C
Gain Tempco,
–55 to +125°C
Offset,
25°C
Offset Voltage Drift
Slew Rate
Cross Talk
100kHz
1MHz
Bandwidth
3dB Small Signal
Full Power
Input Impedance
Output Settling Time
(10V step, +25°C) 500Ω Load
±0.1% 10 Bits
±0.01% 12 Bits
±0.003% 14 Bits
(20V step, + 25°C) 1kΩ Load
±0.1% 10 Bits
±0.01% 12 Bits
±0.003% 14 Bits
Switching Characteristics
Break-Before-Make Delay
Turn On Time
Turn Off Time
DATEL
Min.
–10
+2.0
–
–
–
–
–10.0
15
100
–
–
–
–
–
–
±250
–
–
8
3
2.45
Typ.
Max.
+10
Units
Volts
Volts
Volts
uA
uA
Volts
mA
pF
Ω
V/V
%FS
ppm/°C
mV
μV/°C
V/μs
dB
dB
MHz
MHz
kΩ
–
–
–
–
–
+0.8
+10
–10
+10
24-Pin. Metal-Sealed, Ceramic DDIP
0.42 oz. (12 grams)
–
–
0.1
–1
–
±0.5
±0.1
<5
±300
–90
–80
8.5
4.5
2.5
–
–
–
–
±0.03
±5
±0.5
±15
–
–83
–75
–
–
2.55
TECHNICAL NOTES
1.
Bypass the ±15V and +5V power supplies with a 1μF, 25V tantalum
electrolytic capacitors in parallel with a 0.1μF ceramic capacitors.
2.
Analog signals up to ±15V may be present while the MUX power
supplies are off.
3.
The absence of an RON specification or output leakage specification is
related to the architecture of the switching network. The inputs see a
constant 2.5k Ohm input impedance whether the channel is on or off.
4.
Typical recovery time from an overvoltage condition of >±3V is
approximately 200 nanoseconds from a negative overdrive and
700 nanoseconds from a positive overdrive.
5.
Double-level multiplexing may be used to provide up to 64 channels
(nine MX-826s required).
Table 1. Channel Addressing
On
Channel
A2
0
0
0
0
1
1
1
1
•
www.datel.com
•
Mux Address
A1
0
0
1
1
0
0
1
1
A0
0
1
0
1
0
1
0
1
–
–
–
–
–
–
8
–
–
100
150
300
150
200
600
15
20
20
•
170
225
400
200
300
720
25
50
50
ns
ns
ns
ns
ns
ns
ns
ns
ns
•
1
2
3
4
5
6
7
8
Tel: (508) 339-3000
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA
e-mail: help@datel.com
MDA_MX826_A02
Page 2 of 6
®
®
MX-826
Precision, High-Speed 8-Channel Analog Multiplexers

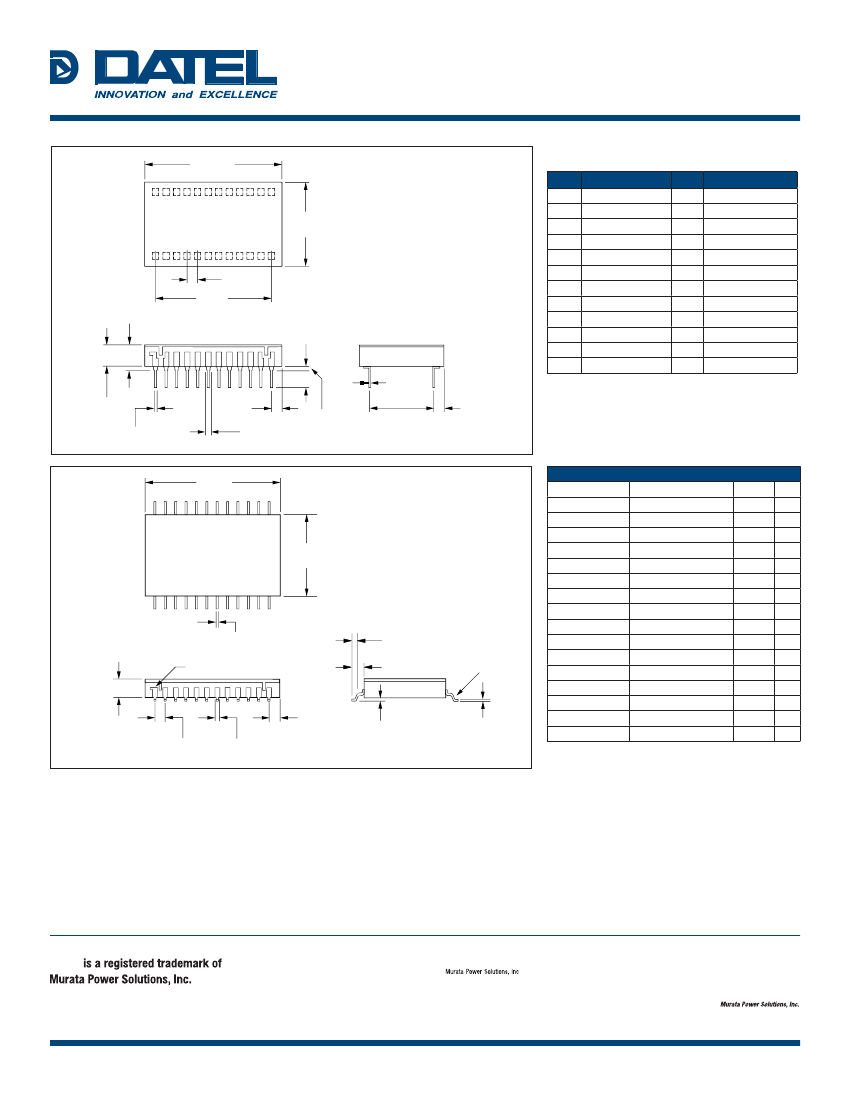

INPUT/OUTPUT CONNECTIONS
MECHANICAL DIMENSIONS
24-Pin DDIP
Versions
MX-826MC
MX-826MM
MX-826/883
24
1.31 MAX.
(33.27)
Dimension Tolerances
(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)
0.80 MAX.
(20.32)
1
12
Lead Material:
Kovar alloy
Lead Finish:
50 microinches (minimum)
gold plating over 100 microinches
(nominal) nickel plating
PIN
FUNCTION
PIN
FUNCTION
13
0.100 TYP.
(2.540)
1.100
(27.940)
0.235 MAX.
(5.969)
0.200 MAX.
(5.080)
0.010
+0.002
–0.001
(0.254)
0.190 MAX.
(4.826)
0.018 ±0.002
(0.457)
0.100
(2.540)
0.040
(1.016)
0.100
(2.540)
1
2
3
4
5
6
7
8
9
10
11
12
A0
A1
A2
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
GROUND
24
23
22
21
20
19
18
17
16
15
14
13
+5V SUPPLY
GROUND
NO CONNECTION
NO CONNECTION
NO CONNECTION
–15V SUPPLY
GROUND
GROUND
+15V SUPPLY
NO CONNECTION
NO CONNECTION
OUTPUT
SEATING
PLANE
0.025
(0.635)
0.600 ±0.010
(15.240)
24-Pin
Surface Mount
Versions
MX-826GC
MX-826GM
MX-826G/883
1.31 MAX.
(33.02)
24
13
Dimension Tolerances
(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)
0.80 MAX.
(20.32)
Lead Material:
Kovar alloy
Lead Finish:
50 microinches (minimum) gold plating
over 100 microinches (nominal) nickel plating
1
12
0.190 MAX.
(4.826)
0.020 TYP.
(0.508)
PIN 1
INDEX
0.060 TYP.
(1.524)
0.130 TYP.
(3.302)
0.015
(0.381)
MAX. radius
for any pin
0.100
(2.540)
0.100 TYP.
(2.540)
0.040
(1.016)
0.020
(0.508)
0.010 TYP.
(0.254)
ORDERING INFORMATION
Model Number
Operating Temp. Range Package RoHS
MX-826MC
0 to +70°C
DDIP
No
MX-826ME
–40 to +100°C
DDIP
No
MX-826MM
–55 to +125°C
DDIP
No
MX-826GC
0 to +70°C
SMT
No
MX-826GE
–40 to +100°C
SMT
No
MX-826GM
–55 to +125°C
SMT
No
MX-826/883
–55 to +125°C
DDIP
No
MX-826G/883
–55 to +125°C
SMT
No
5962-9450601HXC
–55 to +125°C
DDIP
No
5962-9450601HXA
–55 to +125°C
DDIP
No
MX-826MC-C
0 to +70°C
DDIP
Yes
MX-826ME-C
–40 to +100°C
DDIP
Yes
MX-826MM-C
–55 to +125°C
DDIP
Yes
MX-826GC-C
0 to +70°C
SMT
Yes
MX-826GE-C
–40 to +100°C
SMT
Yes
MX-826GM-C
–55 to +125°C
SMT
Yes
DESC drawing available: Drawing Number 5962-9450601. For
MIL-STD-883 product specifcation, contact DATEL.
DATEL
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA
ITAR and ISO 9001/14001 REGISTERED
. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not
imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change
without notice.
© 2012
www.datel.com • e-mail: help@datel.com
MDA_MX826_A02
Page 3 of 6
