Technical Data
Metal Switches
Series SN2
Description
SN2-SU1Z DGHW
Article number
6033371004

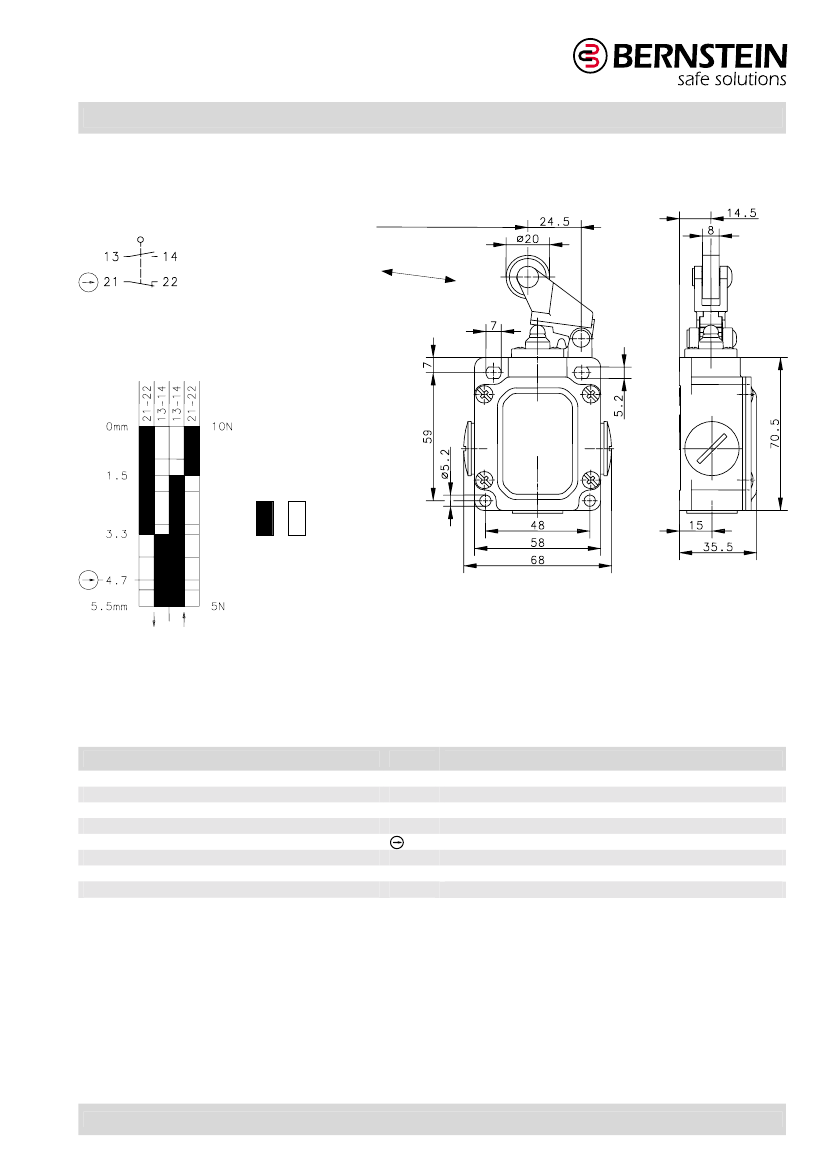

Operating symbol
Shifting possibility
of about 1mm from
20,5mm to 28,5mm
Operating diagram
ON
OFF
Tolerances
Operating point: ± 3,5°;
Actuating force: ± 10%
Electrical data
Rated insulation voltage
Conv. thermal current
Rated operational voltage
Utilization category
Positive opening NC contact
Short-circuit protective device
Protection class
U
i
I
the
U
e
400 VAC
10A
240V
AC-15, U
e
/I
e
240V/3A
IEC/EN 60947-5-1
Fuse 2A gL/gG
IEC/EN 60947-5-1, Annex K
I
This document will not become the contractual basis; the details included herein do not constitute any descriptions of expected conditions, so that warranties/claims for
defects on account of possible variations of the actual qualities from the qualities described herein are explicitly excluded. All rights reserved. Specifications subject to
change without notice!
Date of issue: 07.12.2004 / Page 1 of 2
Document: 6033371004_en / : 1 / Last update: 2072-04
Bernstein AG, Tieloser Weg 6, D-32457 Porta Westfalica, Germany / www.bernstein-ag.de
Vorlage : 0850174282 Orig. 1
Technical Data
Metal Switches
Mechanical data
Enclosure
Cover
Actuator
Ambient air temperature
Contact type
Mechanical life
Switching frequency
Assembly
Connection
Conductor cross-sections
Cable entrance
Weight
Installation position
Protection type
Die-cast aluminium
Sheet aluminium
Lever (st), roller (thermoplastic)
-30°C ... +80°C
1 NC, 1 NO (Zb)
6
10 x 10 operating cycles
≤
100 / min.
4 x M5
4 screw terminals (M3.5)
Solid: 0,5 ... 1,5mm²
Litz wire with ferrules: 0.5 ... 1.5mm²
3 x M20x1,5
≈
0,23kg
Operator definable
IP65 acc. to IEC/EN 60529
Actuation
By loosening the 4 screws the actuation assembly can be rotated in 90 degree increments such that 4 actuation
directions are possible. The actuation assembly is to be again fastened to the housing using the 4 screws.
Standards
VDE 0660 T100, DIN EN 60947-1, IEC 60947-1
VDE 0660 T200, DIN EN 60947-5-1, IEC 60947-5-1
EU Conformity
Approvals
CSA
UL
A300 (same polarity)
A300
Notes
The degree of protection (IP code) specified applies solely to a property closed cover and the use of an equivalent
cable gland with adequate cable.
This document will not become the contractual basis; the details included herein do not constitute any descriptions of expected conditions, so that warranties/claims for
defects on account of possible variations of the actual qualities from the qualities described herein are explicitly excluded. All rights reserved. Specifications subject to
change without notice!
Date of issue: 07.12.2004 / Page 2 of 2
Document: 6033371004_en / : 1 / Last update: 2072-04
Bernstein AG, Tieloser Weg 6, D-32457 Porta Westfalica, Germany / www.bernstein-ag.de
Vorlage : 0850174282 Orig. 1
