AZ832P2-2C-24DEL datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> AZ832P2-2C-24DEL

AZ832P2-2C-24DEL: DescriptionElectromechanical Relay, DPDT, 42.8VDC (Coil), 3A (Contact), 220VDC (Contact), Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size118KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric View All

AZ832P2-2C-24DEL Overview

Electromechanical Relay, DPDT, 42.8VDC (Coil), 3A (Contact), 220VDC (Contact), Random, AC/DC Output

AZ832P2-2C-24DEL Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	10 mm
body height	10.65 mm
Body length or diameter	20.2 mm
Coil operating voltage (DC)	18 V
Coil release voltage (DC)	18 V
Coil resistance	2040 Ω
Maximum coil voltage (DC)	42.8 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	125VA@250VAC
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated power R load	90W@220VDC
Contact (DC) maximum rated R load	3A@220VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	10
operating hours	3 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	10
physical size	20.2mm x 10mm x 10.65mm
Guideline	UL
Relay style	2 FORM C
Relay function	DPDT
release time	3 ms
seal	EPOXY
Terminal length	0.003 inch
Termination type	SOLDER
weight	5 g
Base Number Matches	1

Preview

Download Datasheet

View All

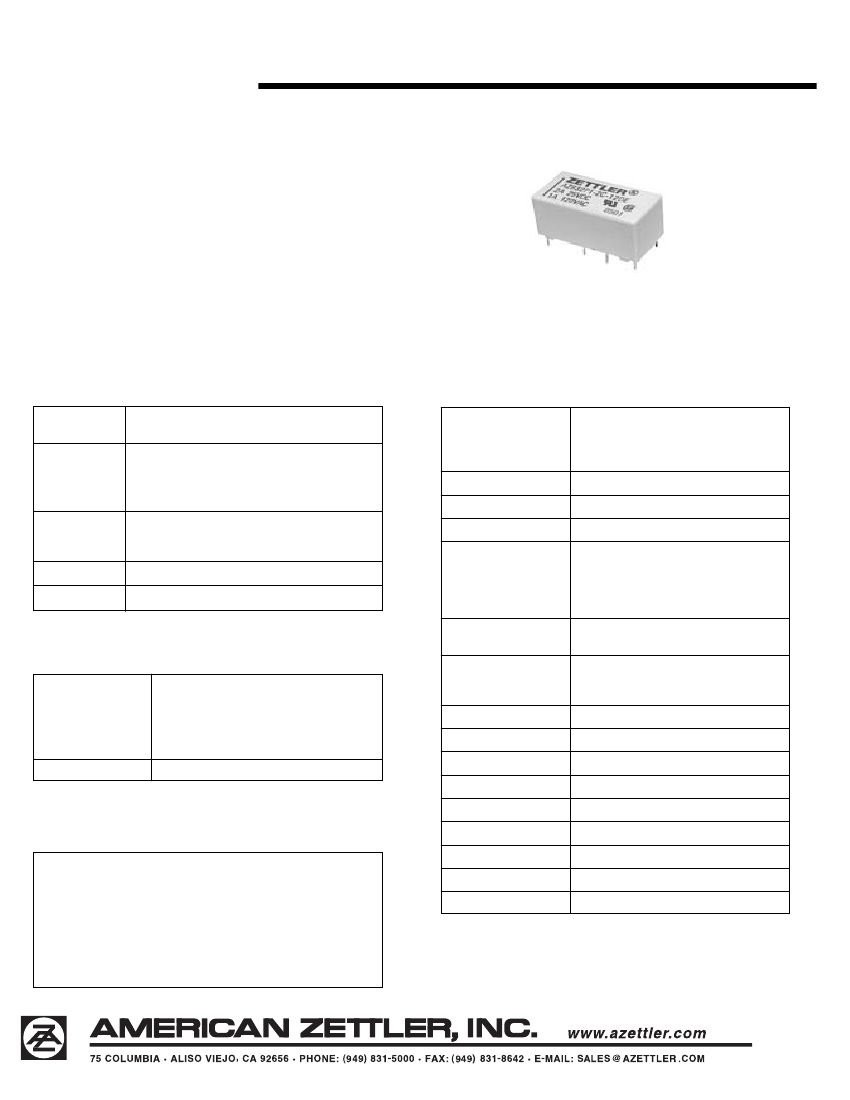

AZ832P

POLARIZED DIP RELAY

BISTABLE (LATCHING)

FEATURES

•

High sensitivity, 42 mW pickup

Low profile DIP package

Meets FCC Part 68.302 1500 V lightning surge

Meets FCC Part 68.304 1000 V dielectric

Single and dual coil versions

DC coils to 24 VDC

High switching capacity, 60 W, 250 VA

Fits standard 16 pin IC socket

Epoxy sealed for automatic wave soldering and cleaning

UL, CUR file E43203

GENERAL DATA

DPDT (2 Form C)

Bifurcated crossbar contacts

Resistive load:

Max. switched power: 60 W or 250 VA

Max. switched current: 2 A

Max. switched voltage: 250 VDC or 250 VAC

Rated Load

Material

Resistance

2 A at 30 VDC resistive

2 A at 125 VAC resistive

Gold plated silver against gold plated silver

< 50 milliohms initially

Insulation Resistance

Life Expectancy

Mechanical

Electrical

Set Time (typical)

Reset Time (typical)

Bounce (typical)

Dielectric Strength

(at sea level)

Minimum operations

2 x 10

1 x 10

at 2 A, 30 VDC or 1 A, 125 VAC

2 x 10

at 1 A, 30 VDC or .5 A, 125 VAC

3 ms at nominal coil voltage

3 ms

1500 Vrms contact to coil

1000 Vrms between contact sets

1000 Vrms across contacts

Meets FCC Part 68.302 lightning surge

Meets FCC Part 68.304 V dielectric

1000 megohms min. at 20°C, 500 VDC,

50% RH

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 115°C (239°F)

50 g at 10–500 Hz

50 g

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

5 grams

CONTACTS

Arrangement

Ratings

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature

Standard coil: 56 mW

Sensitive coil: 42 mW

0.9 W at 20°C (68°F)

Max. 115°C (239°F)

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

NOTES

All values at 20°C (68°F).

Relay may pull in with less than “Must Operate” value.

Relay has fixed coil polarity.

For complete isolation between the relay’s magnetic fields, it is

recommended that a .197" (5.0 mm) space be provided between

adjacent relays.

5. Relay adjustment may be affected if undue pressure is exerted

on relay case.

6. Specifications subject to change without notice.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

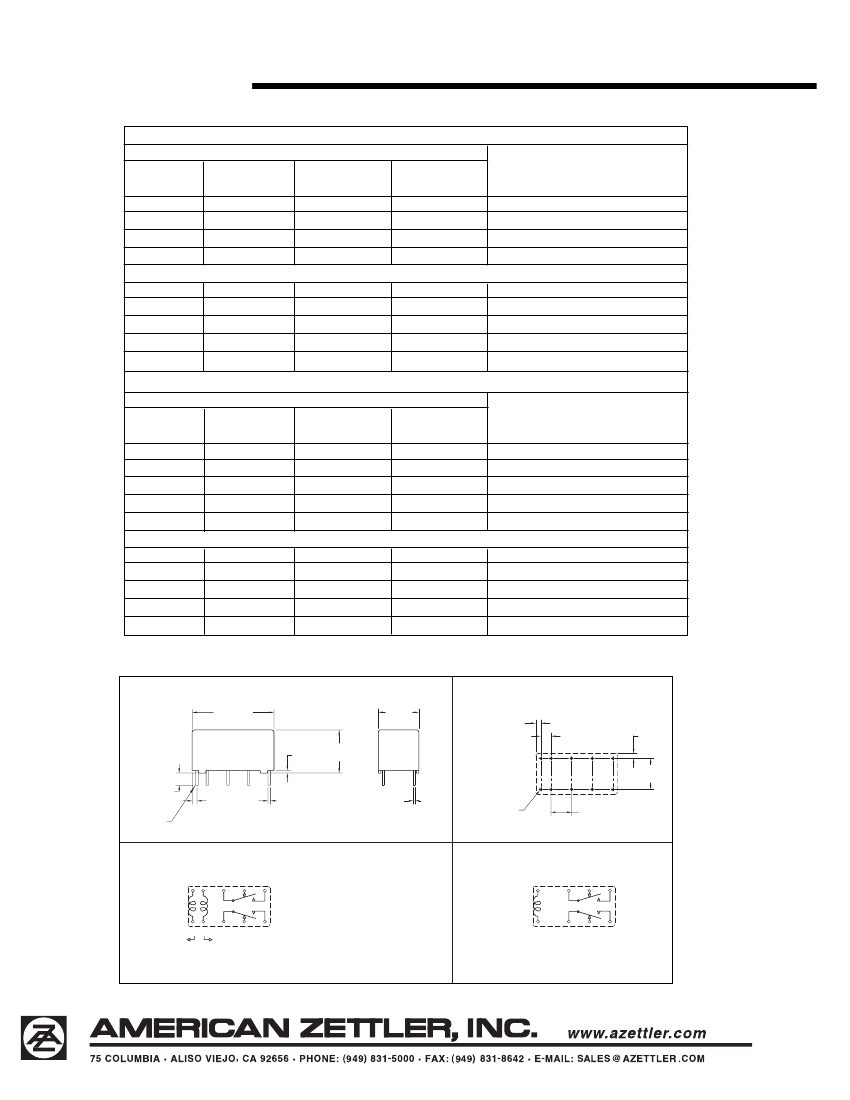

8/3/07 W
