74AC86SCQR datasheet, PDF - EEWORLD Datasheet

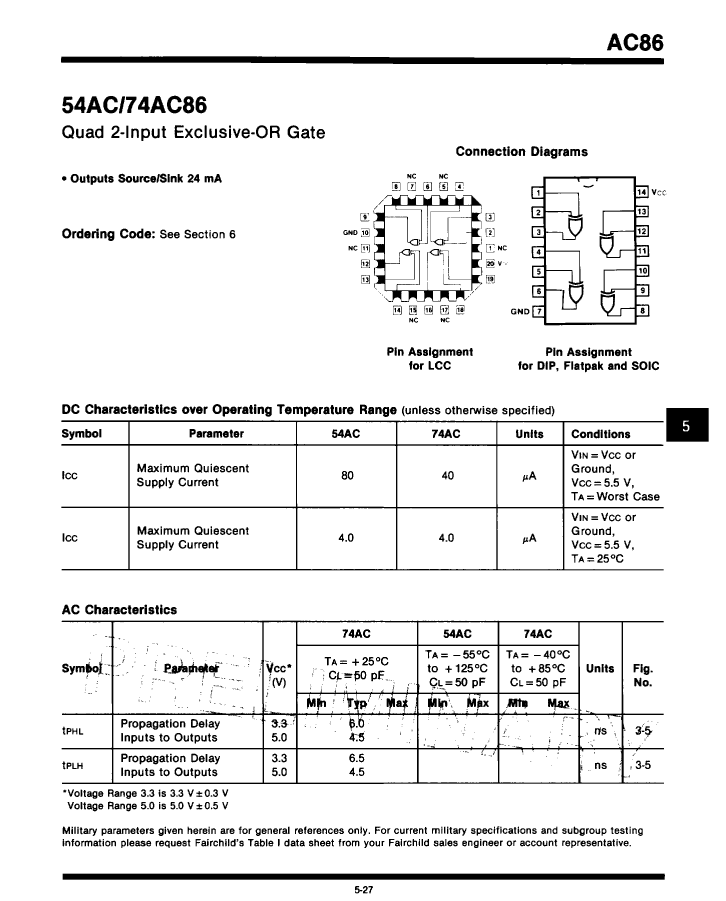

74AC86SCQR: DescriptionXOR Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14, SOIC-14; Categorylogic logic; File Size33KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

74AC86SCQR Overview

XOR Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14, SOIC-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	SOIC
package instruction	SOIC-14
Contacts	14
Reach Compliance Code	compliant
series	AC
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
MaximumI(ol)	0.012 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	12.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Base Number Matches	1
