54LS379DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS379DMQB

54LS379DMQB: DescriptionD Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,; Categorylogic logic; File Size131KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS379DMQB Overview

D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,

54LS379DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	D FLIP-FLOP
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

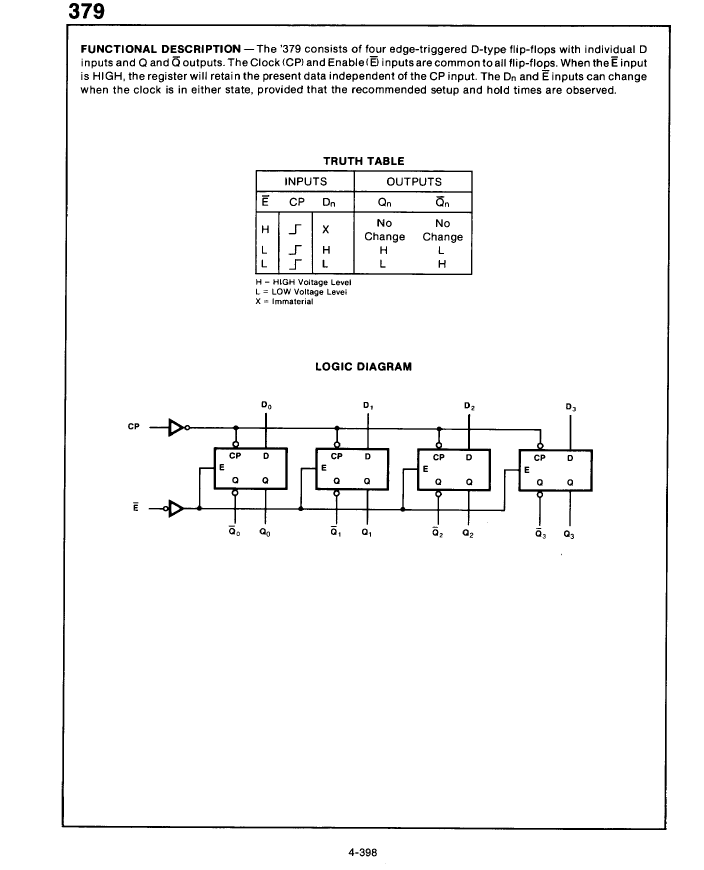

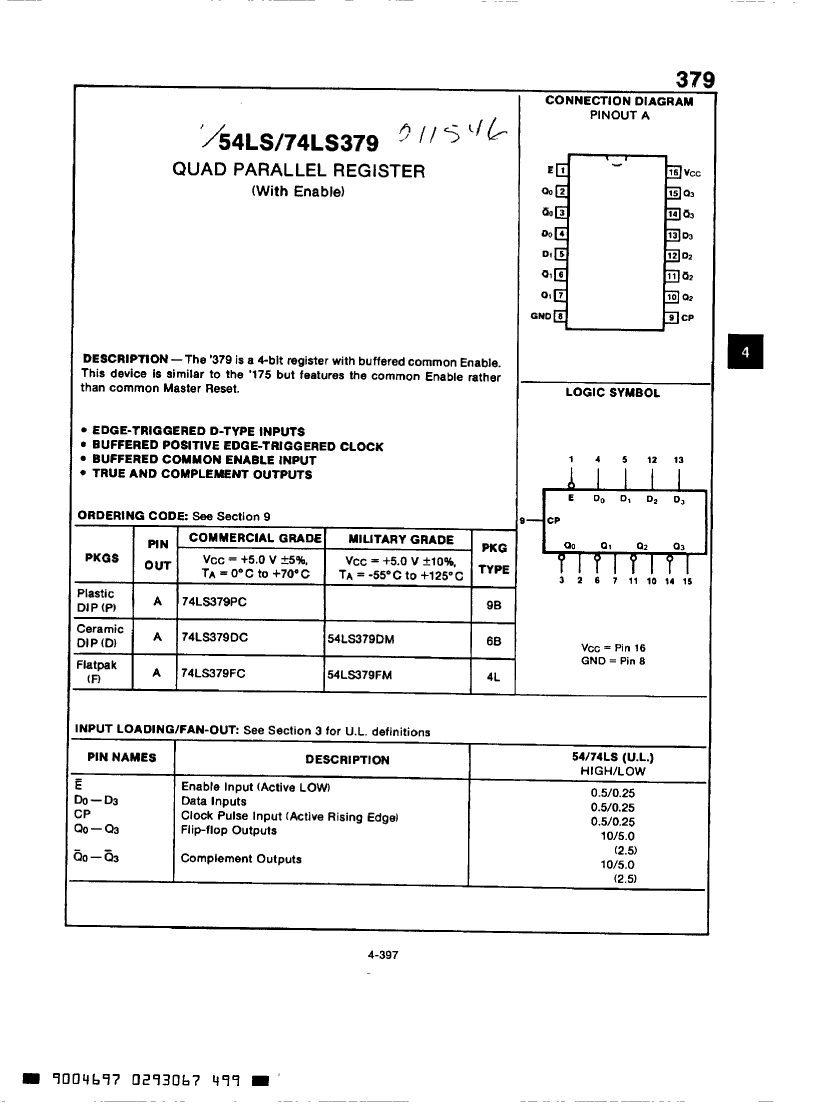

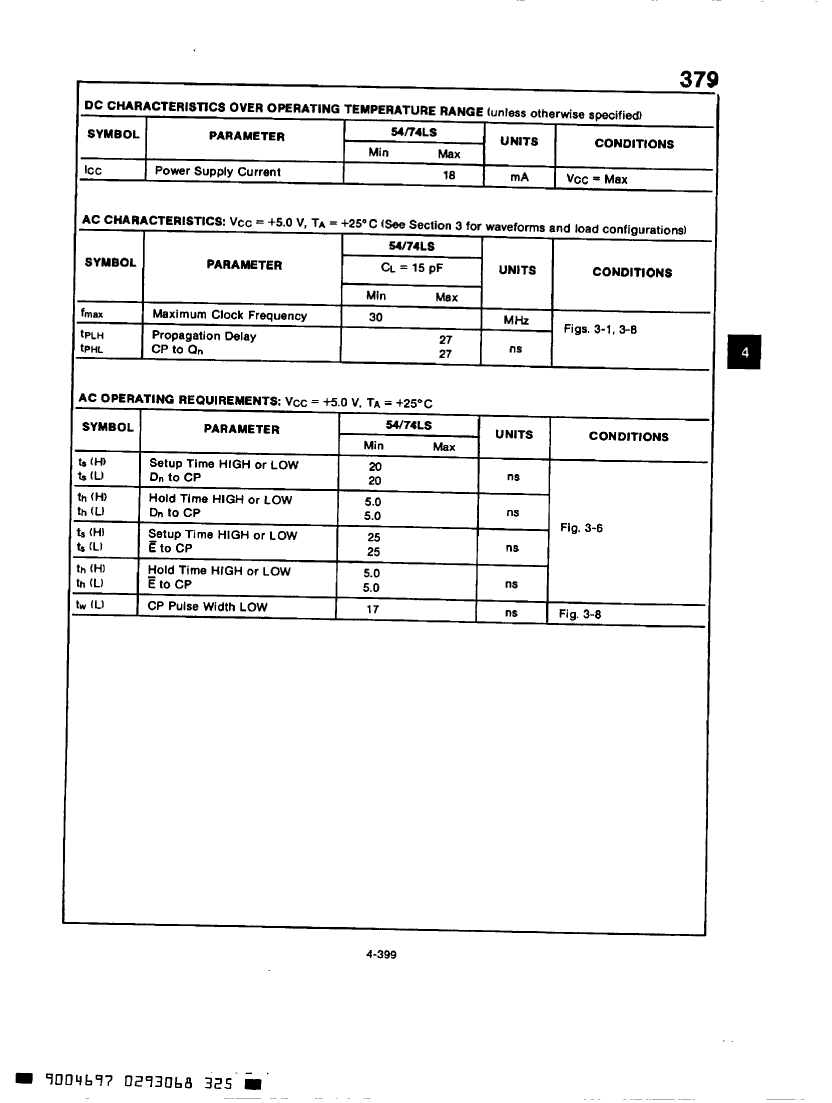

Preview

Download Datasheet

View All

54LS379DMQB Related Products

	54LS379DMQB	74LS379DCQR	74LS379DCQM	74LS379SC	74LS379FCQM	74LS379FCQR	74LS379PCQM	74LS379PCQR
Description	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDSO16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDFP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, CDFP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDIP16,	D Flip-Flop, 4-Func, Positive Edge Triggered, TTL, PDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	unknown
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDSO-G16	R-XDFP-F16	R-XDFP-F16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	SOP	DFP	DFP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.25	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Maker	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Humidity sensitivity level	-	2A	2A	2A	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	250	250	250	250	250	250	250
Maximum time at peak reflow temperature	-	30	30	30	30	30	30	30
