R585863500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> R585863500

R585863500: DescriptionRF Coaxial Relay; CategoryMechanical and electronic products relay; File Size182KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/; Environmental Compliance

Download Datasheet Parametric View All

R585863500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R585863500	-	-	View	Buy Now

R585863500 Overview

RF Coaxial Relay

R585863500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	compliant
ECCN code	EAR99
Relay type	RF COAXIAL RELAY
Base Number Matches	1

Preview

Download Datasheet

View All

Technical Data Sheet

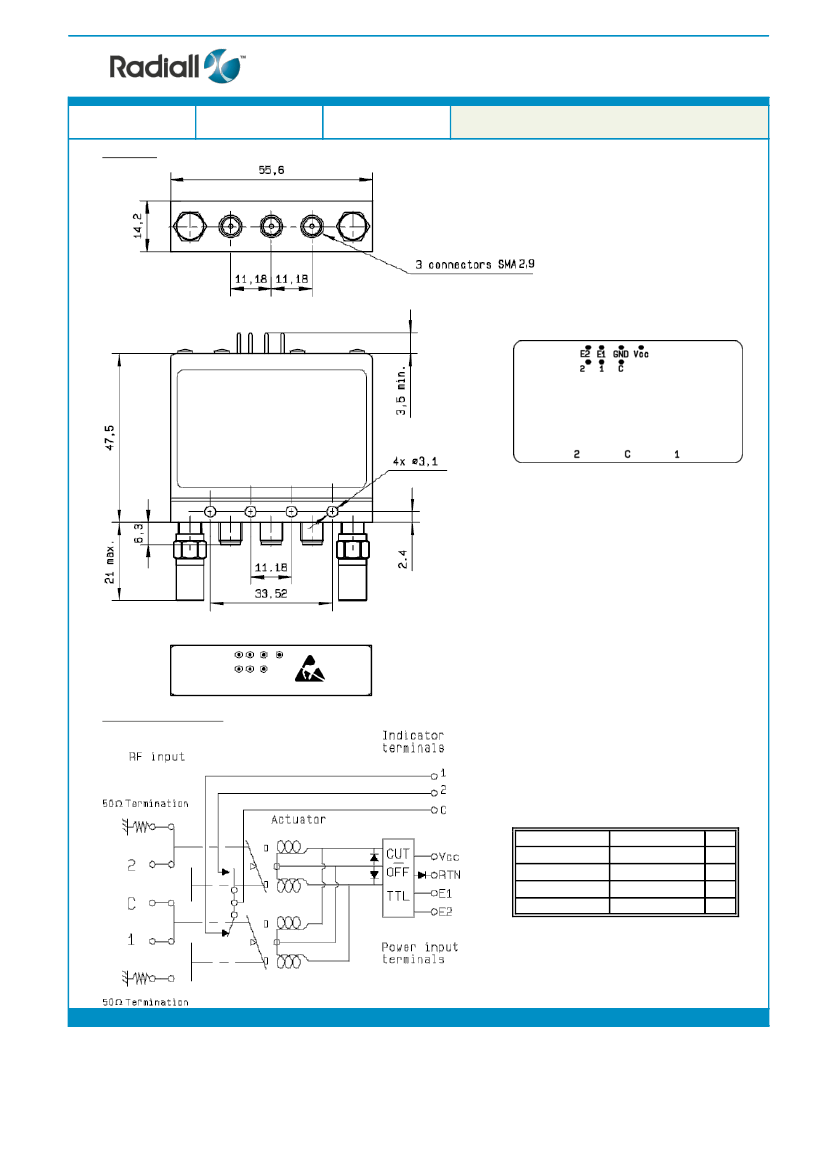

SPDT Terminated Ramses SMA2.9 40GHz Latching Self-cut-off Indicators

28Vdc TTL Diodes External loads Pins terminals

PAGE

1/2

ISSUE

05.06.15

SERIE :

SPDT ZC

PART NUMBER :

R585863500

RF CHARACTERISTICS

Frequency range

Impedance

0 - 40 GHz

50 Ohms

Frequency (GHz)

VSWR max

Insertion loss max

Isolation min

Average power (*)

DC - 6

1.30

0.30 dB

70 dB

80 W

6 - 12.4

1.40

0.40 dB

60 dB

60 W

12.4 - 18

1.50

0.50 dB

60 dB

50 W

18 - 26.5

1.70

0.70 dB

55 dB

20 W

26.5 - 40

1.90

0.80 dB

50 dB

10 W

ELECTRICAL CHARACTERISTICS

Actuator

Nominal current **

Actuator voltage (Vcc)

Terminals

Indicator rating

Self cut-off time

TTL inputs (E)

- High level

- Low level

LATCHING

160 mA

28V (24 to 30V)

solder pins (250°C max. / 30 sec.)

1 W / 30 V / 100 mA

40 ms < CT < 120 ms

2.2 to 5.5 V / 800µA at 5.5 V

0 to 0.8 V / 20µA at 0.8 V

MECHANICAL CHARACTERISTICS

Connectors

Life

Switching Time***

Construction

Weight

SMA 2.9 female per MIL-C 39012

10 million cycles

< 10 ms

Splashproof

< 100 g

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

Storage temperature range

-40°C to +85°C

-55°C to +85°C

(**

(***

Average power at 25°C per RF Path)

At 25° C ±10%)

Nominal voltage ; 25° C)

This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written

agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
