MACH355-15C datasheet, PDF - EEWORLD Datasheet

MACH355-15C: DescriptionEE PLD, 15ns, CMOS, PQFP132, PLASTIC, QFP-132; CategoryProgrammable logic devices Programmable logic; File Size73KB，2 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

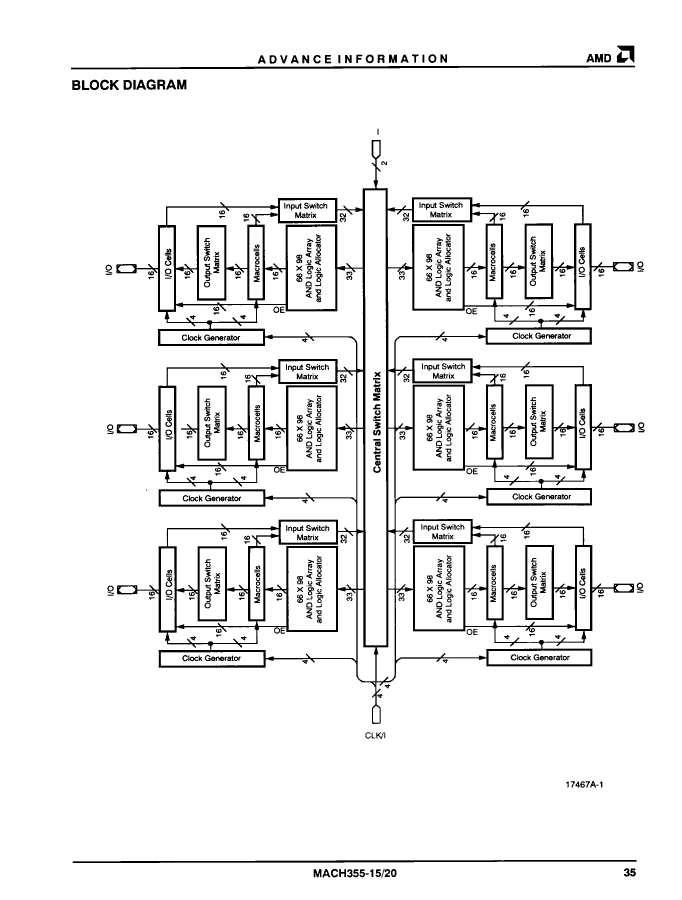

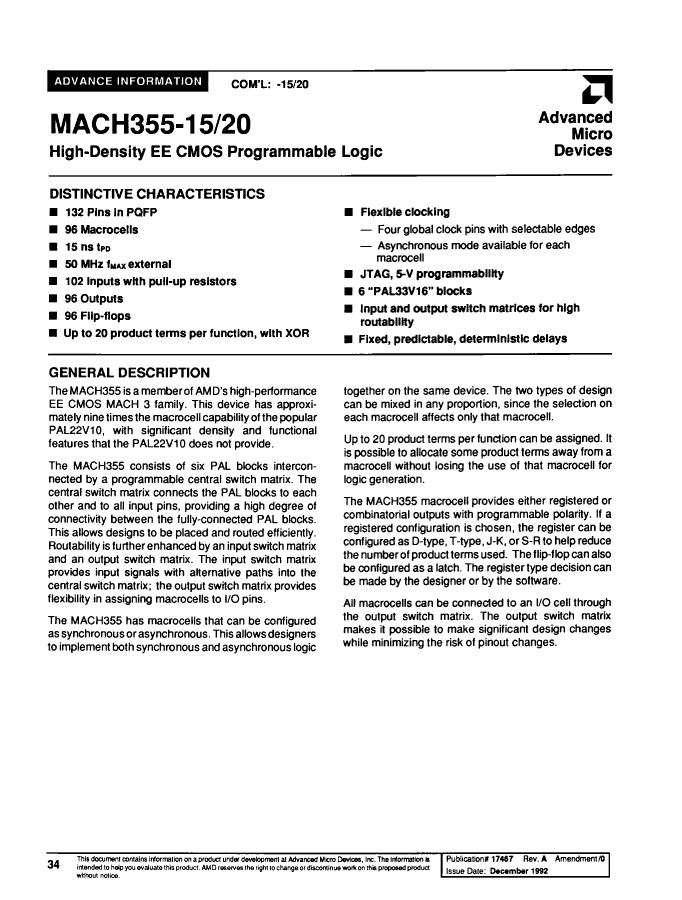

MACH355-15C Overview

EE PLD, 15ns, CMOS, PQFP132, PLASTIC, QFP-132

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	PLASTIC, QFP-132
Contacts	132
Reach Compliance Code	unknown
Other features	PAL BLOCKS INTERCONNECTED BY PIA; 6 LABS; 4 EXTERNAL CLOCKS
JESD-30 code	S-PQFP-G132
length	27.94 mm
Dedicated input times	2
Number of I/O lines	96
Number of terminals	132
Maximum operating temperature	75 °C
Minimum operating temperature
organize	2 DEDICATED INPUTS, 96 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Programmable logic type	EE PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	4.318 mm
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
width	27.94 mm
Base Number Matches	1

	MACH355-15C	MACH355-20C
Description	EE PLD, 15ns, CMOS, PQFP132, PLASTIC, QFP-132	EE PLD, 20ns, CMOS, PQFP132, PLASTIC, QFP-132
Parts packaging code	QFP	QFP
package instruction	PLASTIC, QFP-132	QFP,
Contacts	132	132
Reach Compliance Code	unknown	unknow
Other features	PAL BLOCKS INTERCONNECTED BY PIA; 6 LABS; 4 EXTERNAL CLOCKS	PAL BLOCKS INTERCONNECTED BY PIA; 6 LABS; 4 EXTERNAL CLOCKS
JESD-30 code	S-PQFP-G132	S-PQFP-G132
length	27.94 mm	27.94 mm
Dedicated input times	2	2
Number of I/O lines	96	96
Number of terminals	132	132
Maximum operating temperature	75 °C	75 °C
organize	2 DEDICATED INPUTS, 96 I/O	2 DEDICATED INPUTS, 96 I/O
Output function	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Programmable logic type	EE PLD	EE PLD
propagation delay	15 ns	20 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.318 mm	4.318 mm
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD
width	27.94 mm	27.94 mm
Base Number Matches	1	1
