HEF4104BPB datasheet, PDF - EEWORLD Datasheet

HEF4104BPB: DescriptionIC 4000/14000/40000 SERIES, 4-BIT DRIVER, COMPLEMENTARY OUTPUT, PDIP16, Bus Driver/Transceiver; Categorylogic logic; File Size85KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

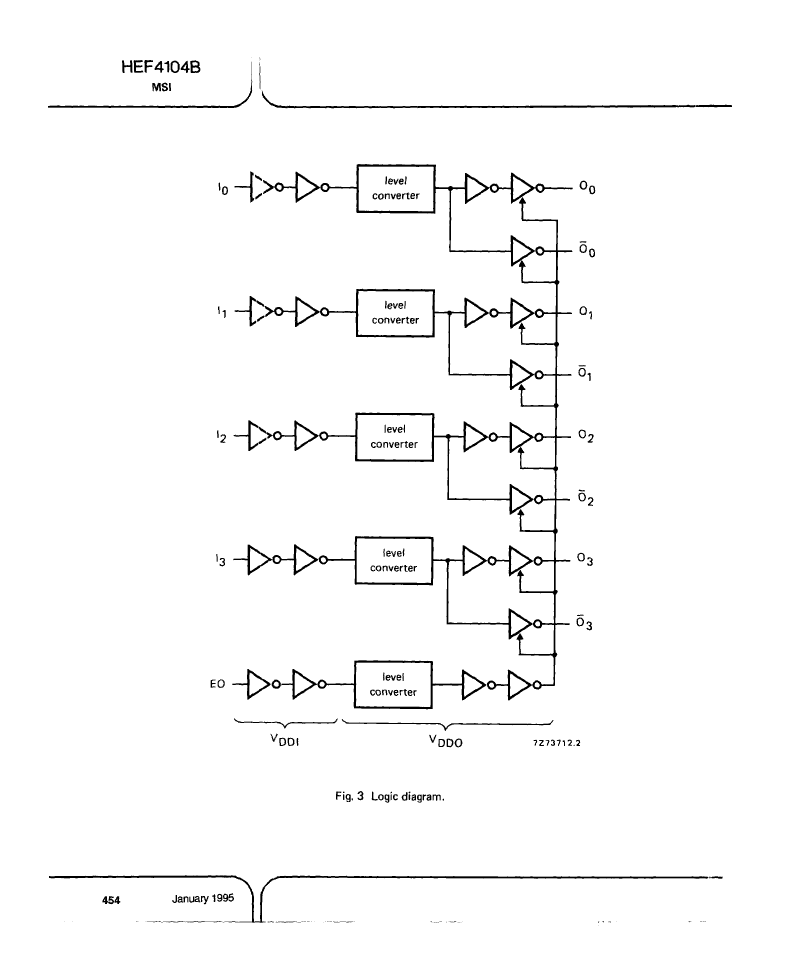

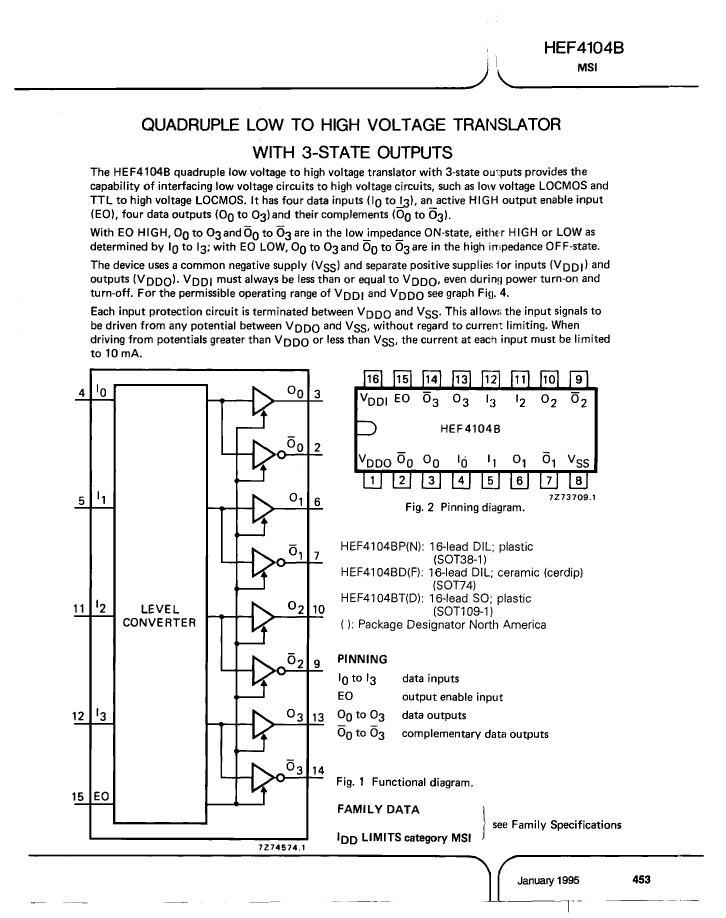

HEF4104BPB Overview

IC 4000/14000/40000 SERIES, 4-BIT DRIVER, COMPLEMENTARY OUTPUT, PDIP16, Bus Driver/Transceiver

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	LOW TO HIGH VOLTAGE TRANSLATOR
series	4000/14000/40000
JESD-30 code	R-PDIP-T16
length	21.6 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

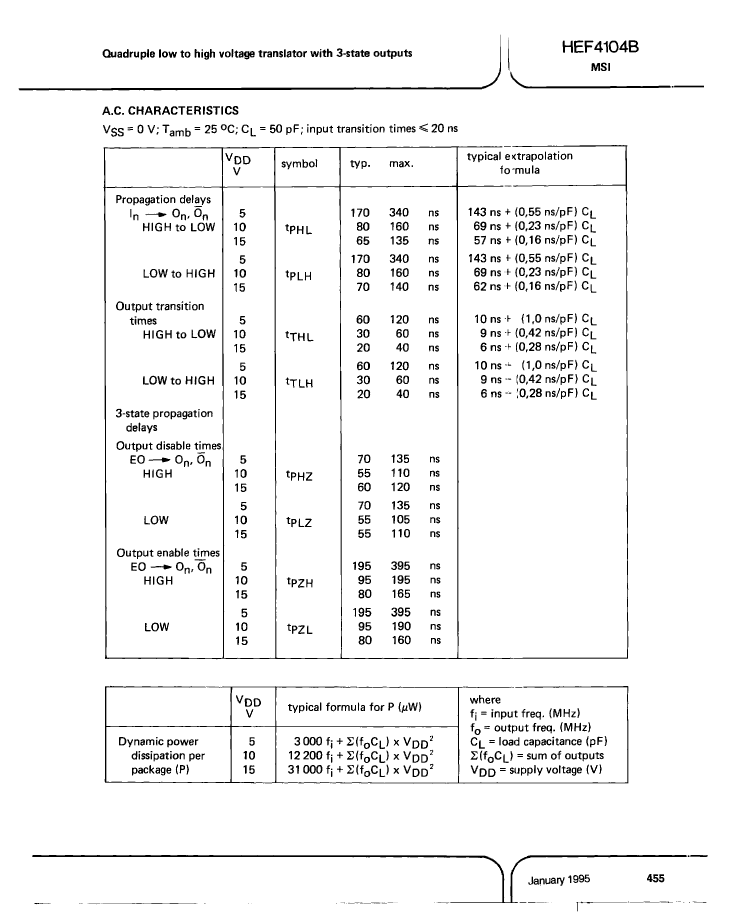

propagation delay (tpd)	340 ns
Certification status	Not Qualified
Maximum seat height	4.7 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	HEF4104BPB	HEF4104BDB
Description	IC 4000/14000/40000 SERIES, 4-BIT DRIVER, COMPLEMENTARY OUTPUT, PDIP16, Bus Driver/Transceiver	IC 4000/14000/40000 SERIES, 4-BIT DRIVER, COMPLEMENTARY OUTPUT, CDIP16, Bus Driver/Transceiver
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Other features	LOW TO HIGH VOLTAGE TRANSLATOR	LOW TO HIGH VOLTAGE TRANSLATOR
series	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDIP-T16	R-GDIP-T16
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	4	4
Number of functions	1	1
Number of ports	2	2
Number of terminals	16	16
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	340 ns	340 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.7 mm	5.08 mm
Maximum supply voltage (Vsup)	15 V	15 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
Base Number Matches	1	1
