5962-89839032X datasheet, PDF - EEWORLD Datasheet

5962-89839032X: DescriptionEE PLD, 15ns, CMOS, CQCC20, 0.358 X 0.358 INCH, 0.100 INCH HEIGHT, CC-20; CategoryProgrammable logic devices Programmable logic; File Size385KB，18 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

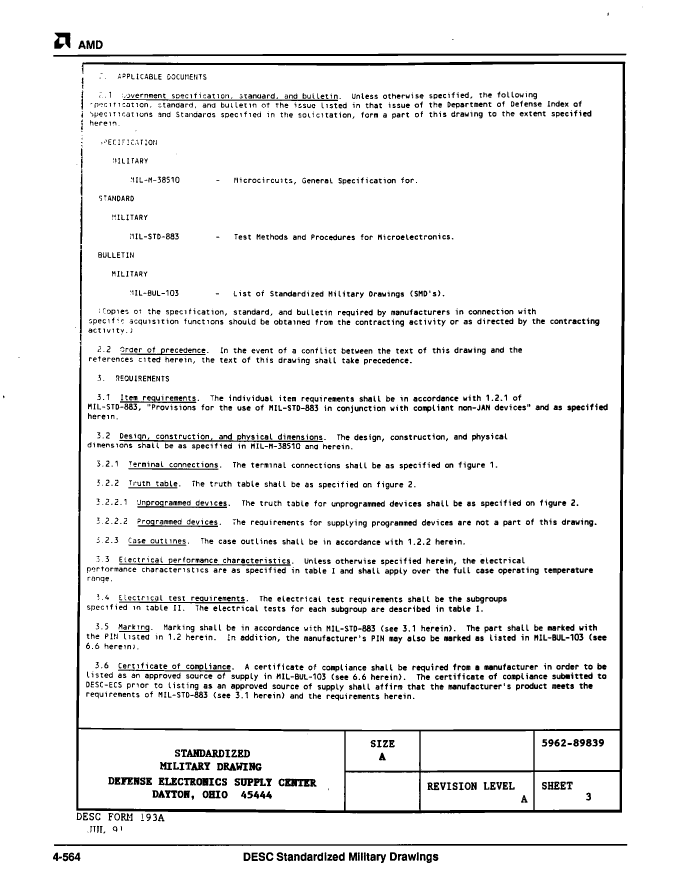

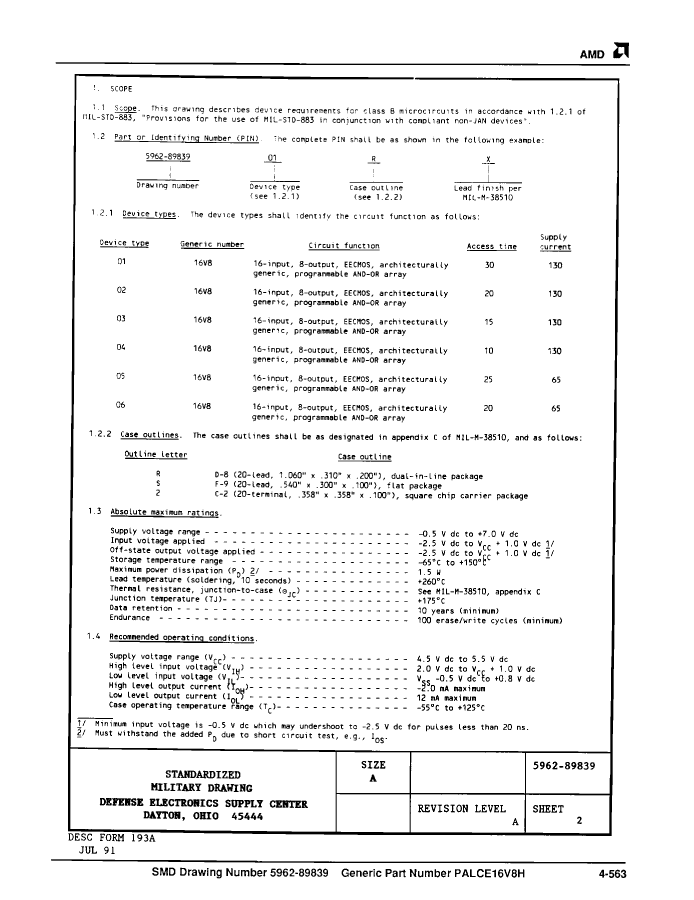

5962-89839032X Overview

EE PLD, 15ns, CMOS, CQCC20, 0.358 X 0.358 INCH, 0.100 INCH HEIGHT, CC-20

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	QFN
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	PAL WITH MACROCELLS; 8 MACROCELLS

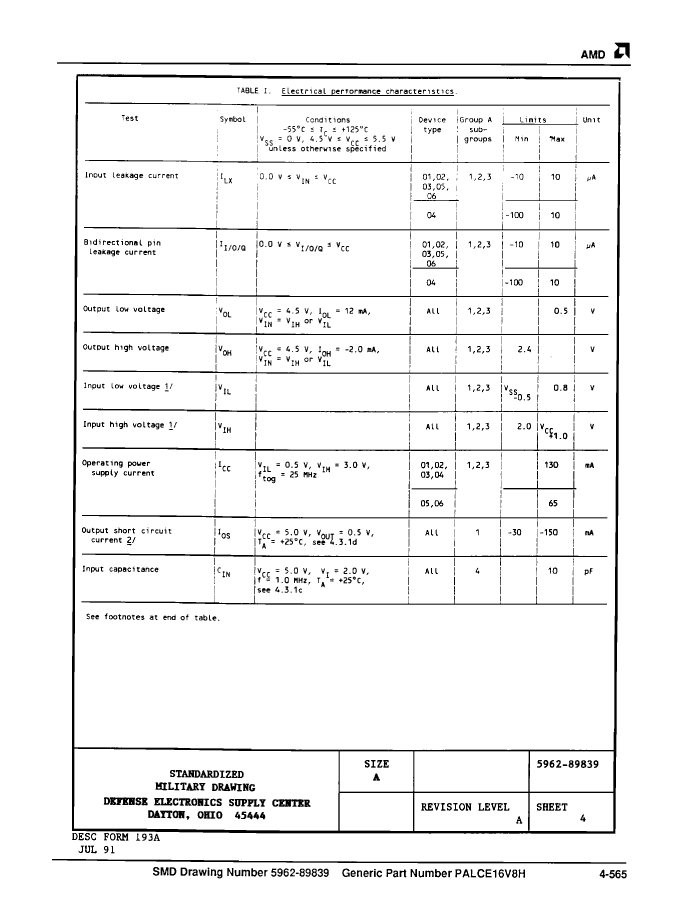

maximum clock frequency	41.6 MHz
JESD-30 code	S-CQCC-N20
length	8.89 mm
Dedicated input times	8
Number of I/O lines	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	EE PLD

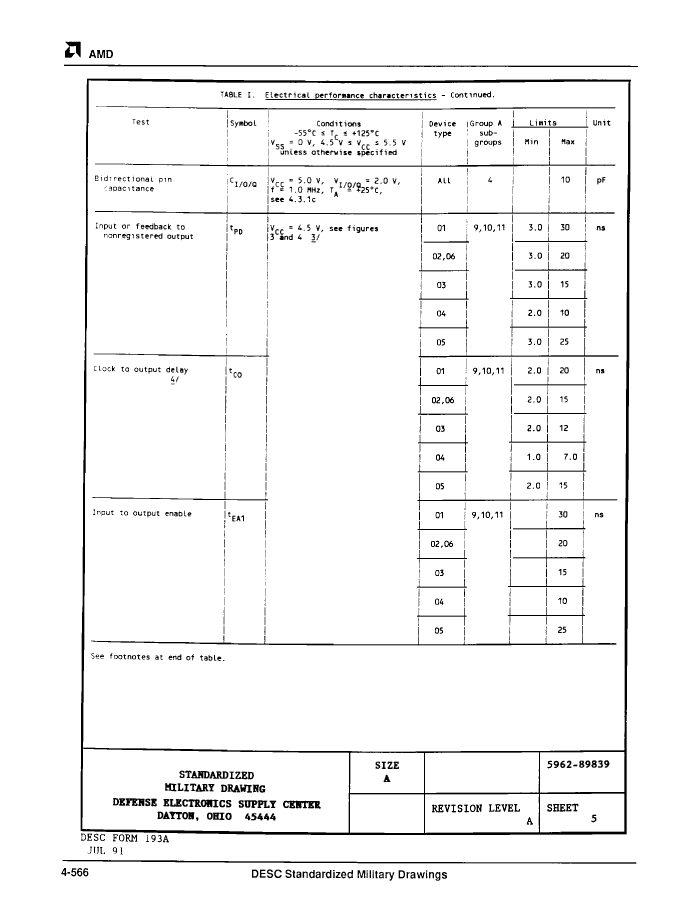

propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm
Base Number Matches	1
