367116 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 367116

367116: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size91KB，2 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/

Download Datasheet Parametric View All

367116 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

367116 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

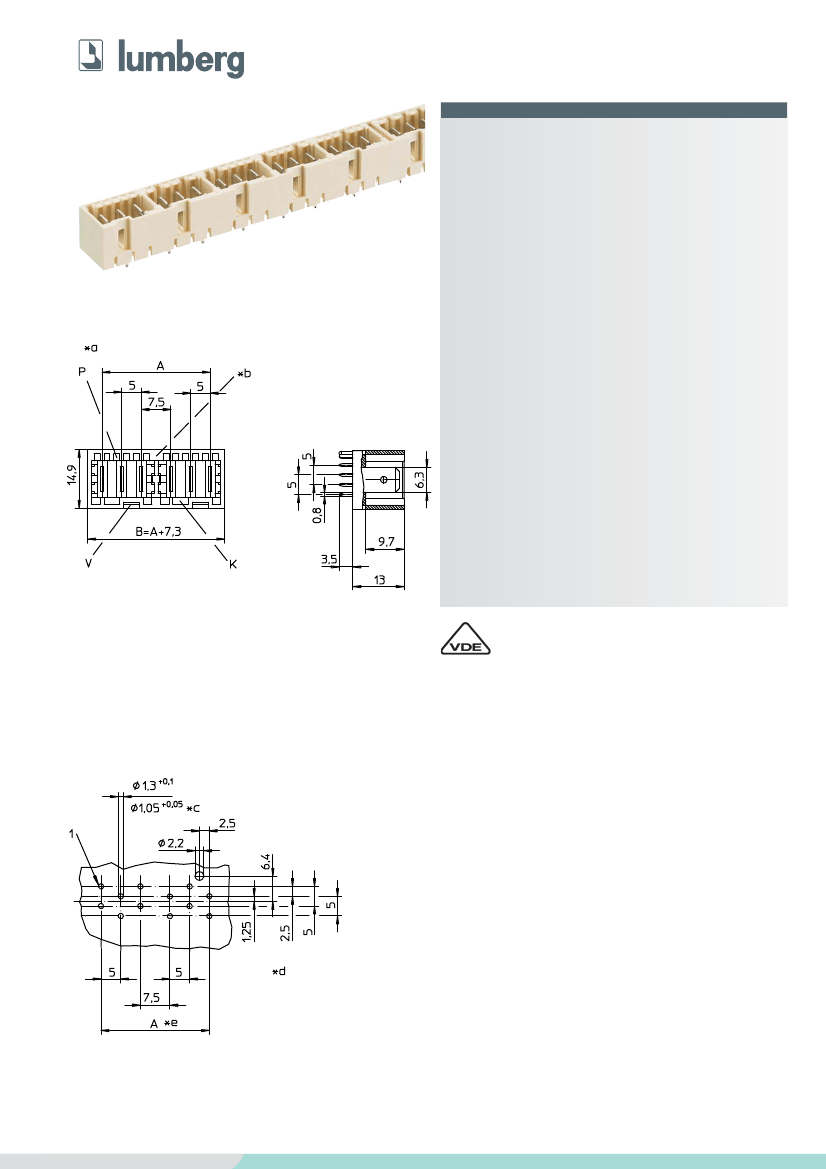

RAST-5-Steckverbinder, Raster 5,0 mm

RAST 5 connectors, pitch 5.0 mm

Connecteurs RAST 5, pas 5,0 mm

3671

RAST-5-Messerleiste, stehend, mit Zwischenwänden und

Positionierungszapfen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktmesser

3. Mechanische Daten

Kontaktmesser

Kontaktierung mit

6,3 x 0,8 mm nach DIN 46244

Steckverbindern 3611, 3615, 3623,

3626,

Steckverbindern nach RAST-5-

Standard

PA GF, V0 nach UL 94

CuZn, unternickelt und verzinnt

-40 °C/+120 °C

4. Elektrische Daten

Bemessungsstrom

10 A bei T

70 °C

250 V AC

Bemessungsspannung

IIIa (IEC)/2 (UL) CTI

≥

250

Isolierstoffgruppe

Kriechstrecke

≥

4,2 mm

Luftstrecke

≥

4,2 mm

Isolationswiderstand

> 10

Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,

Beurteilung nach IEC 60335-1 (Flamme < 2 s)

nach DIN EN 60664/IEC 60664, CTI UL-Klassifizierung nach ANSI/UL 746A

Reg.-Nr. 135721

*a K = Kodierung

K = keying

K = codage

P = Positionierung

P = positioning

P = positionnement

V = Raum für Verriegelung

V = space for lock

V = emplacement pour verrouillage

*b Zwischenwand

partitioning

séparation

*c Maß für Presssitz auf der Leiterplatte

measure for press-fit on printed circuit board

mesure pour autofixation sur carte imprimée par pression

*d Lochbild in der Leiterplatte, von der Bauteilseite gesehen

printed circuit board layout, components side view

modèle de la carte imprimée, vue du côté à équiper

*e A = (P - 1) x 5 + (Z x 2,5)

P = Polzahl

P = poles

P = pôles

Z = Anzahl Zwischenwände (je 12 Kontakte mindestens 1 Zwischenwand)

Z = number of partitionings (at least 1 partitioning every 12 contacts)

Z = nombre de séparations (au moins 1 séparation tous les 12 contacts)

www.lumberg.com

05/2011
